Front Axle Hub: Components

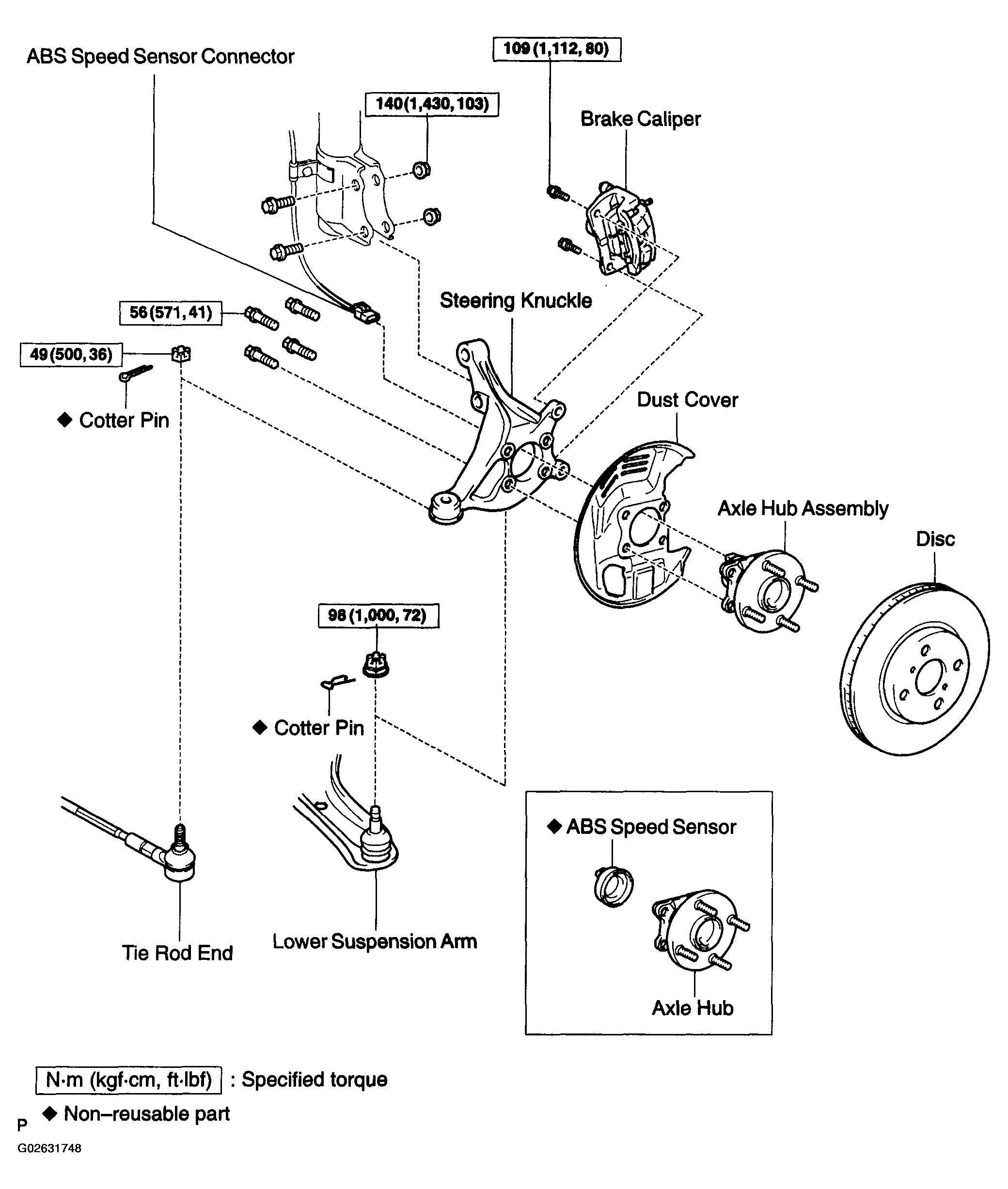

Fig 1: Identifying Front Axle Hub Components
G02631748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
