Idle Air Control (IAC) Valve (M/T): Components

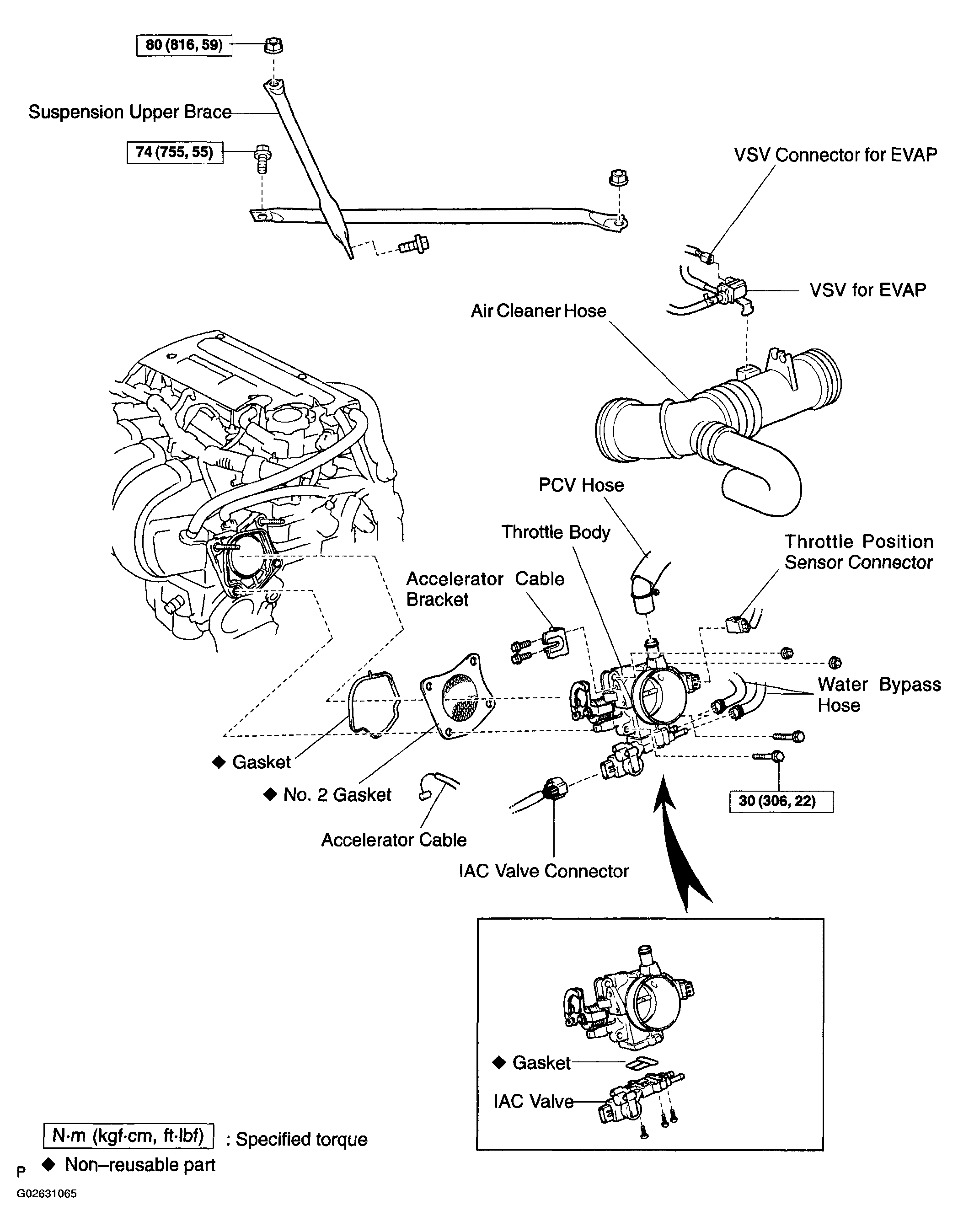

Fig 1: Identifying Idle Air Control Valve Components

G02631065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
