TC Terminal Circuit: Wiring Diagram

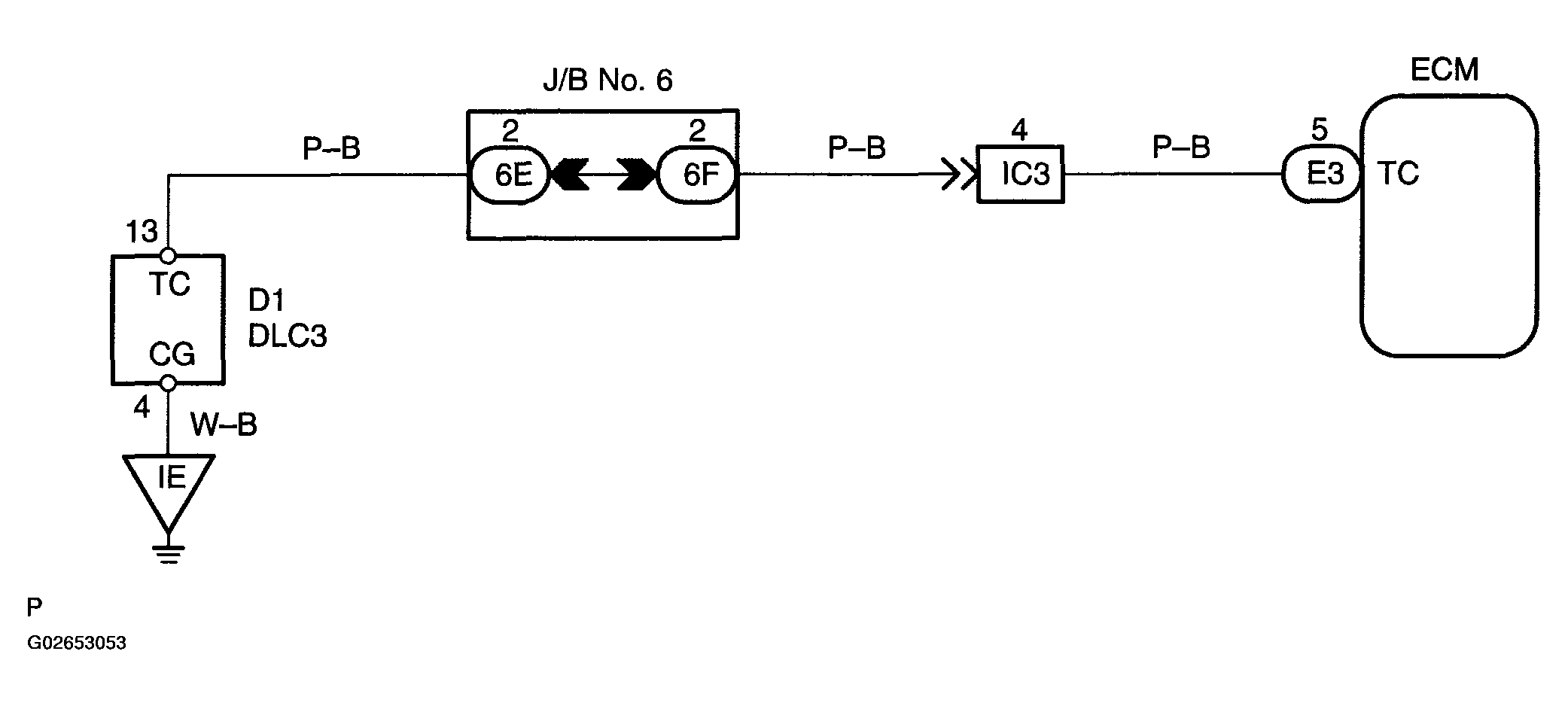

Fig 1: Wiring Diagram - TC Terminal Circuit

G02653053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
