DTC P0860: Gear Shift Module Communication Circuit*: Wiring Diagram

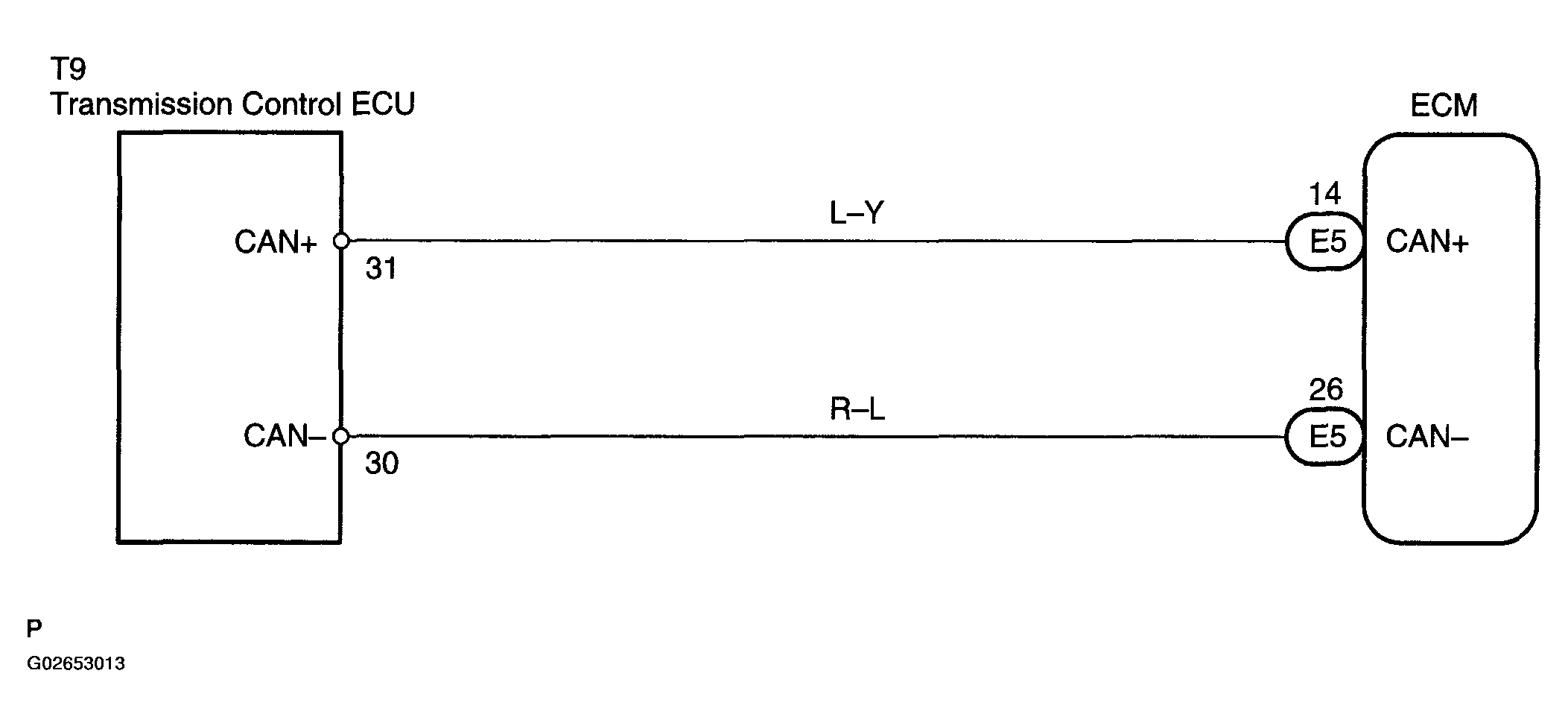

Fig 1: Wiring Diagram - Gear Shift Module Communication Circuit

G02653013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
