Front Fog Light System
Front Fog Light System

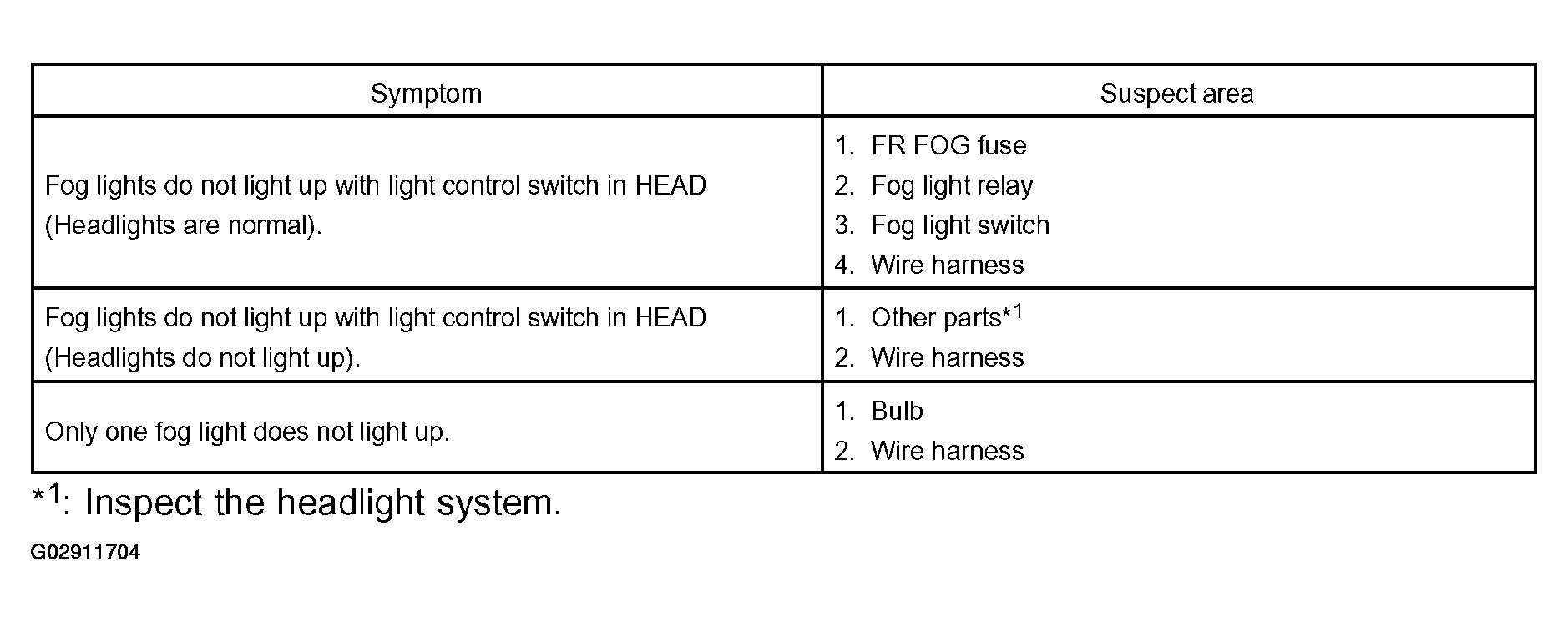

Fig 1: Displaying Front Fog Light System Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1: Inspect the headlight system.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
