Troubleshooting
>>
Problem Symptoms Table
>>
Defogger System
Defogger System

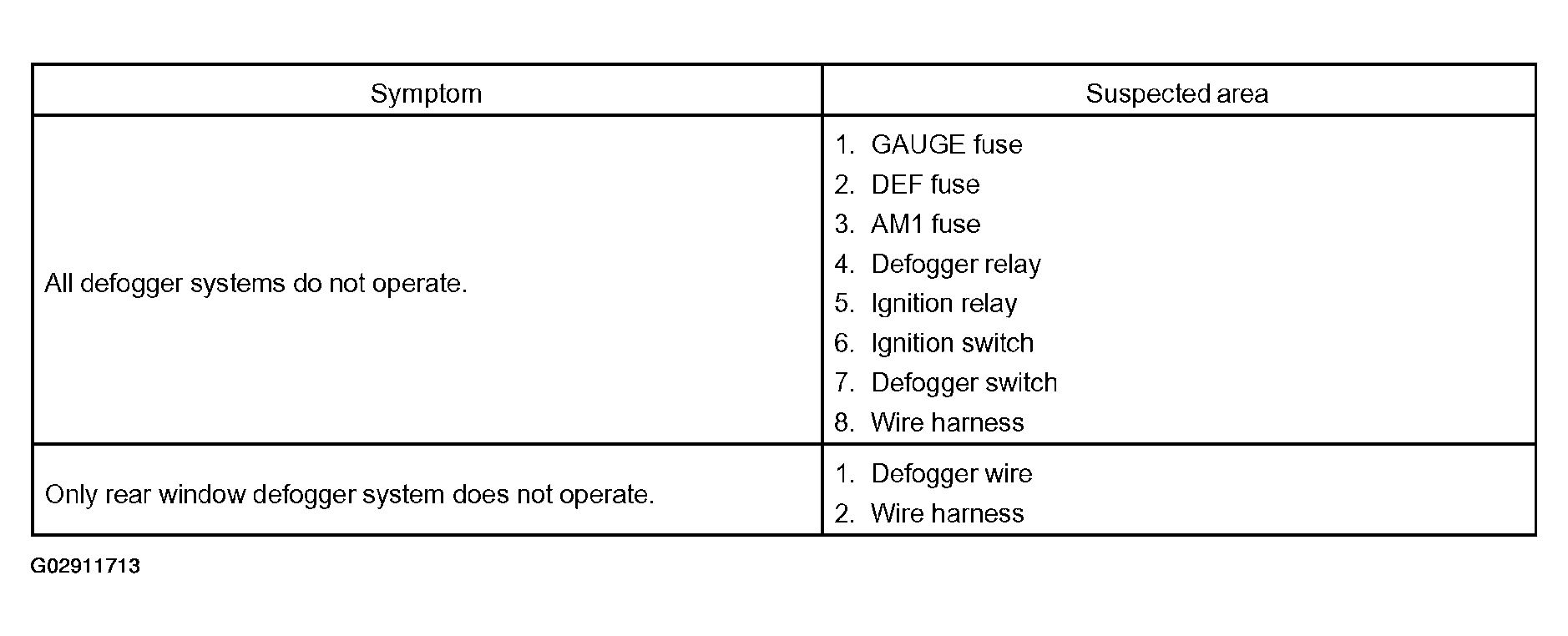

Fig 1: Displaying Defogger System Problem Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
