Body Clips: Clip: Replacement

The removal and installation methods of typical clips used in the body parts are shown in the table below.

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

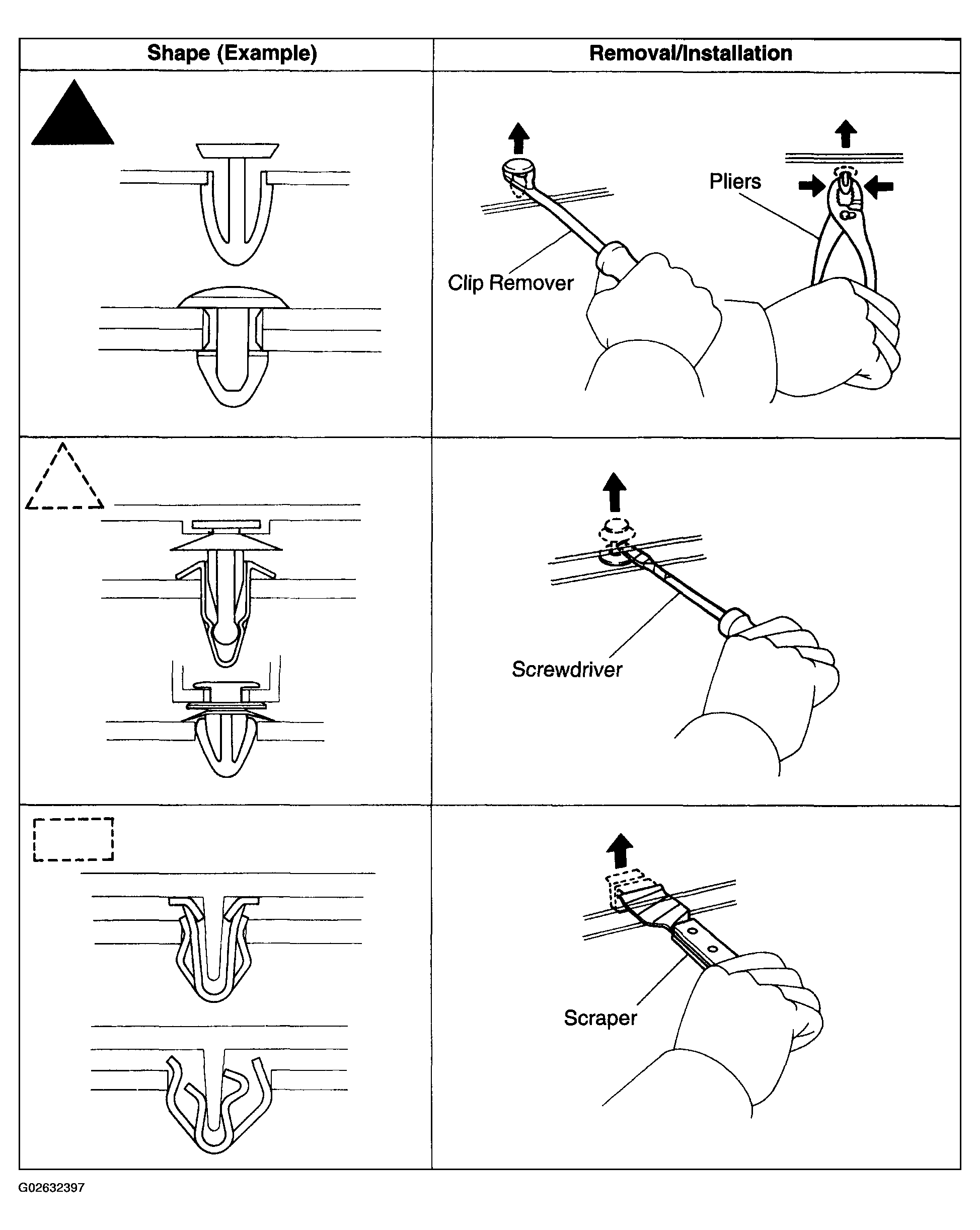

Fig 1: Identifying Removal And Installation Methods Of Typical Clips (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

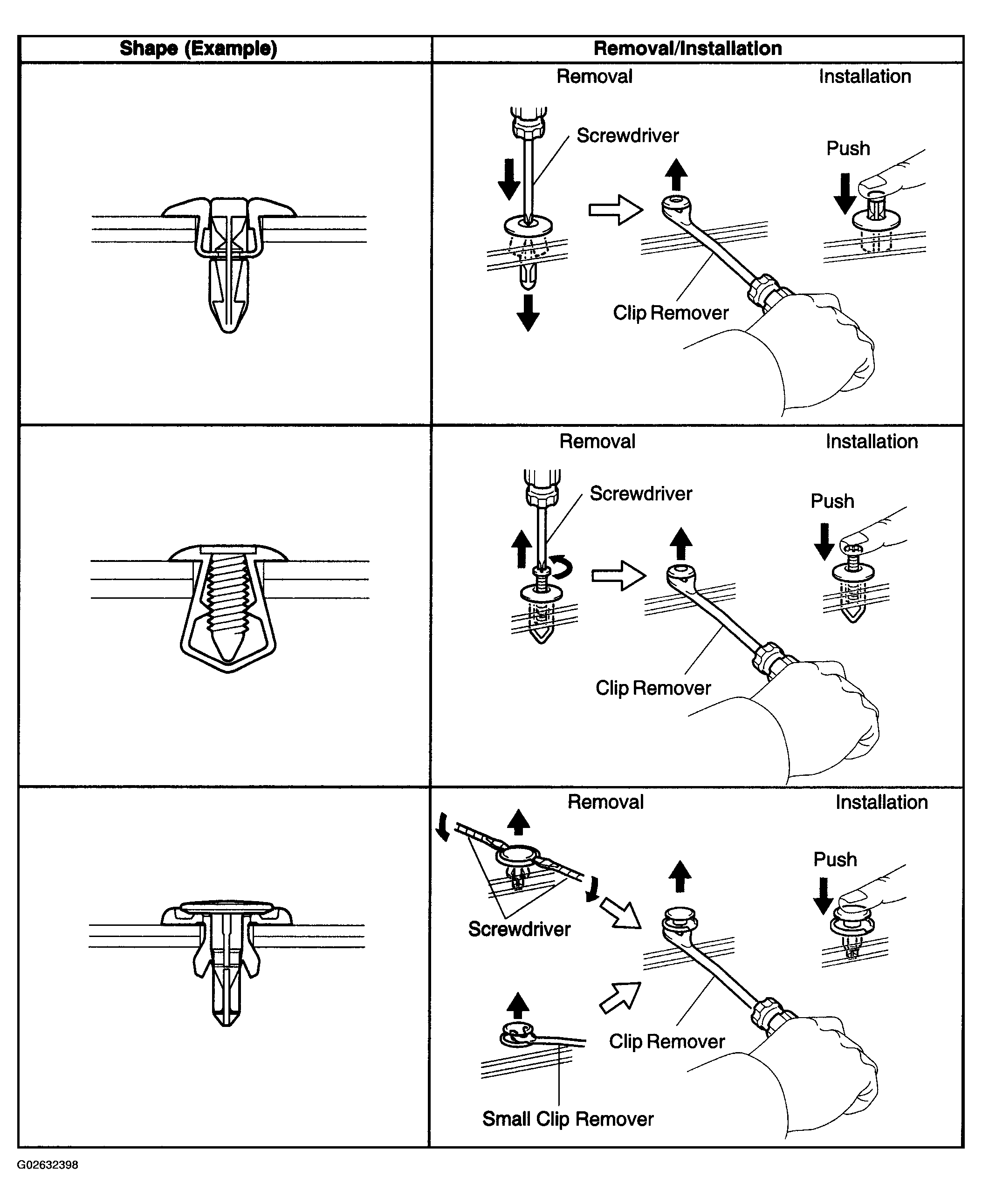

Fig 2: Identifying Removal And Installation Methods Of Typical Clips (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
