Shift Lever And Control Cable: Components

Fig 1: Identifying Shift Lever And Control Cable Components (1 Of 3)
G02631463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Shift Lever And Control Cable Components (2 Of 3)
G02631464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

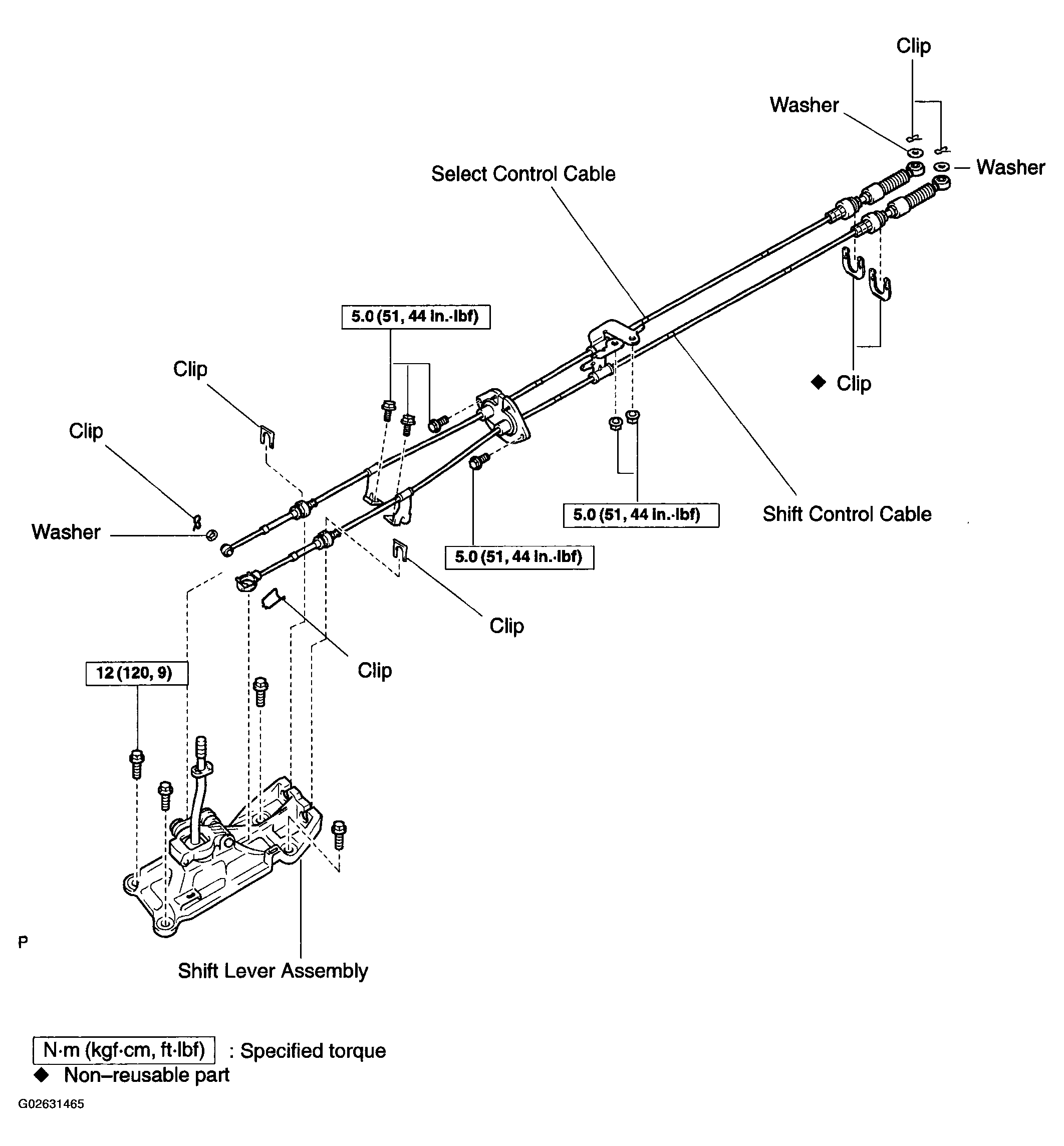

Fig 3: Identifying Shift Lever And Control Cable Components (3 Of 3)
G02631465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
