Output Shaft: Components

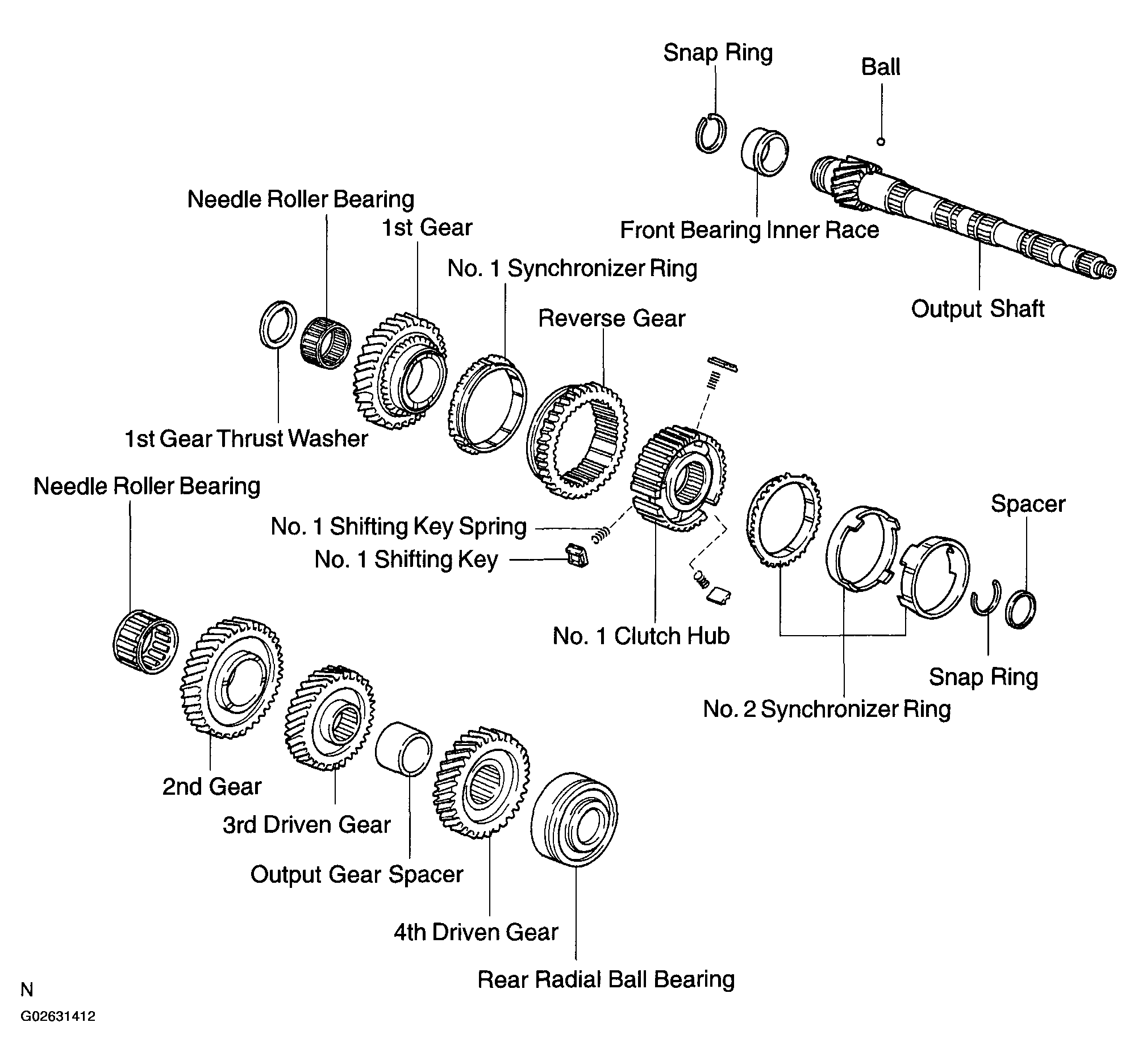

Fig 1: Identifying Output Shaft Components

G02631412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
