Home >> Toyota >> 2005 >> MR2 C56 >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Input Shaft >> Components

Input Shaft: Components

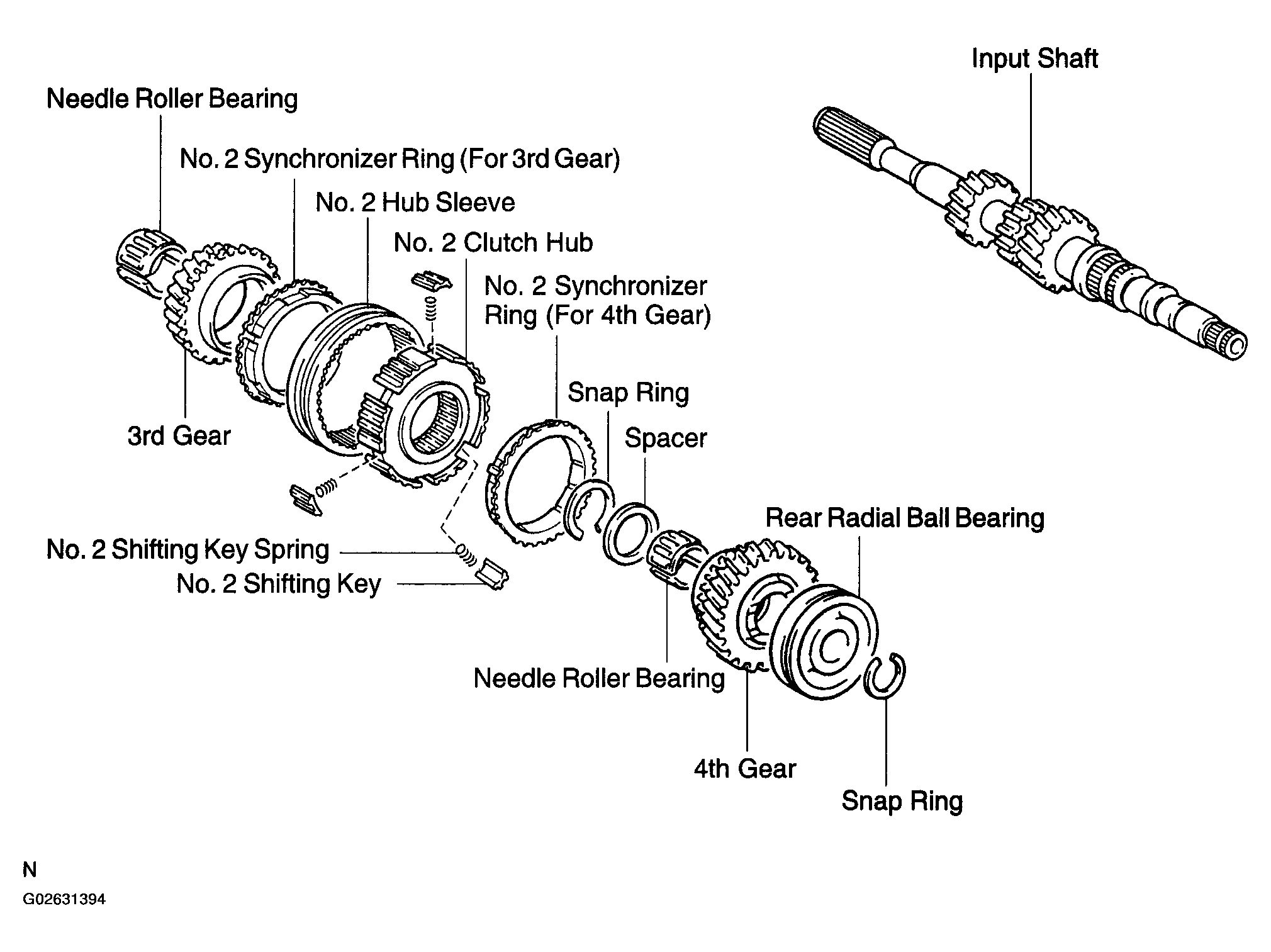

Fig 1: Identifying Input Shaft Components

G02631394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
