Power Steering Vane Pump: Installation
- INSTALL POWER STEERING VANE PUMP
Install the power steering vane pump with the 2 bolts, nut and 3 washers.
Torque: 19 N.m (190 kgf.cm, 14 ft.lbf)
- CONNECT PRESSURE FEED TUBE

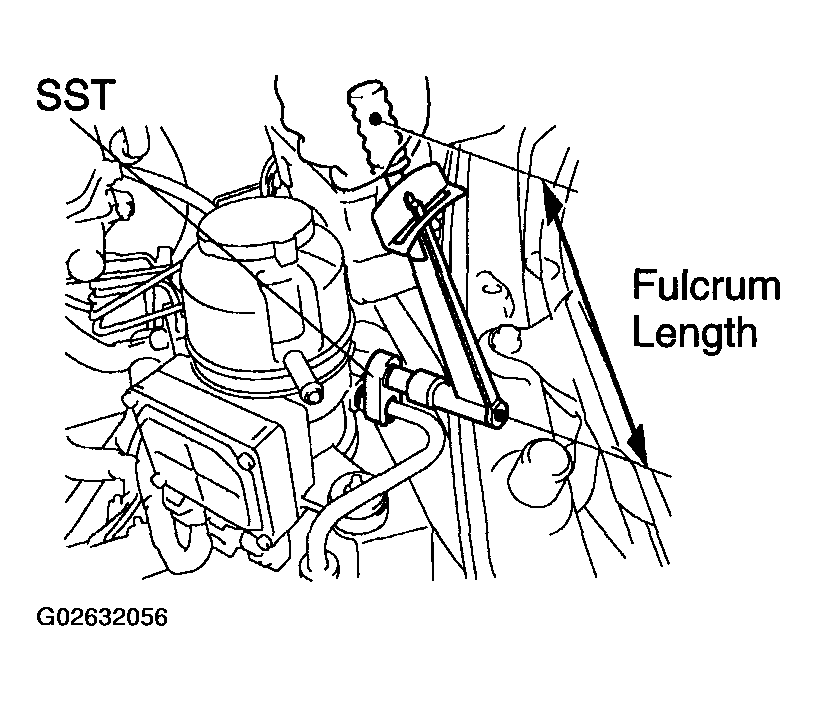

Using SST, connect the pressure feed tube.
SST 09023-12700
Torque: 39.5 N.m (400 kgf.cm, 29 ft.lbf)
HINT:
Use a torque wrench with a fulcrum length of 345 mm (11.81 in).
- CONNECT RETURN HOSE
Connect the return hose with the clip.
- CONNECT ECU CONNECTORS
- BLEED POWER STEERING SYSTEM (See POWER STEERING FLUID )
- INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER
