Power Steering Gear: Inspection
NOTE:
When using a vise, do not overtighten it.

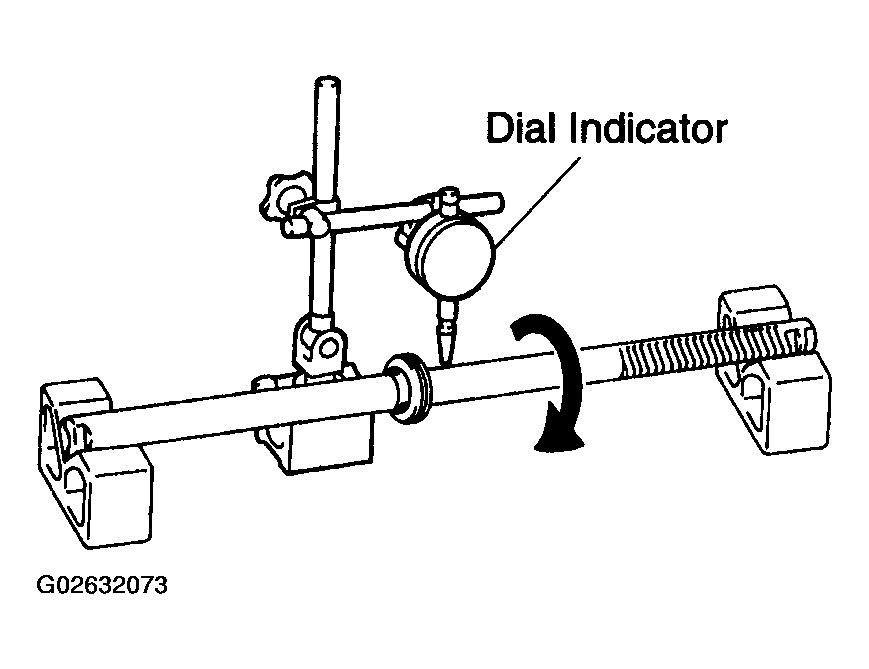

- Using a dial indicator, check the rack for runout, teeth wear and damage.
Maximum runout: 0.1 mm (0.004 in.)
- Check the back surface for wear and damage.
