Pressure Switch: Installation

  1. INSTALL PRESSURE SWITCH
    1. Coat a new O-ring with compressor oil.
    2. Install the pressure switch to the liquid tube.

      Torque: 10.8 N.m (110 kgf.cm, 8 ft.lbf)

  2. CHARGE REFRIGERANT TO REFRIGERANT SYSTEM
    1. Evacuate air from refrigeration system.
    2. Charge system with refrigerant and inspect for leakage of refrigerant.

      Specified amount: 500 +/- 30 g (17.64 +/- 1.06 oz.)

  3. INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER
  4. INSTALL TOOL BOX ASSEMBLY

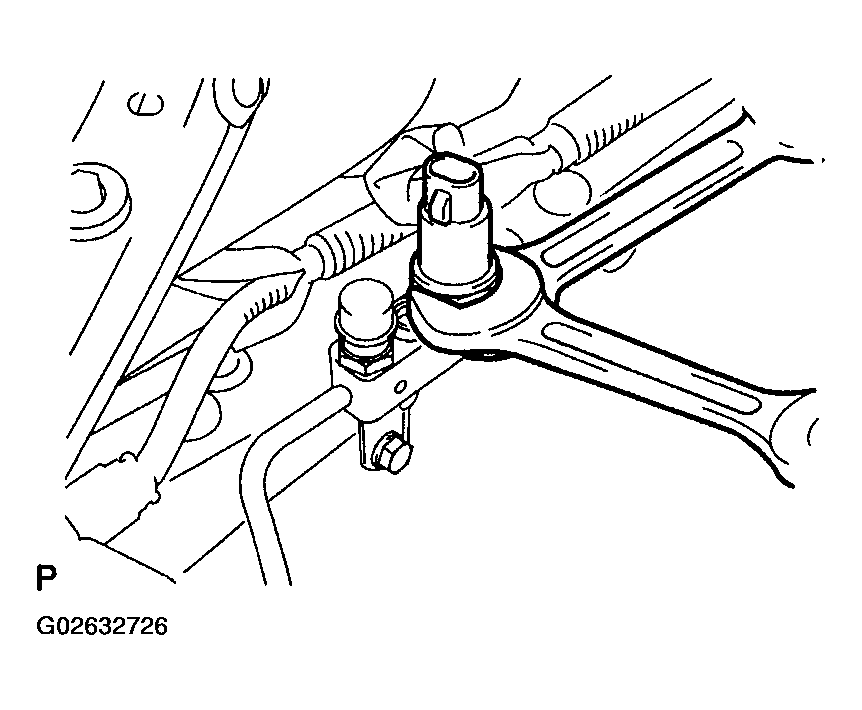

    Fig 1: Installing Pressure Switch To Liquid Tube
    G02632726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
