Heater Unit: Components

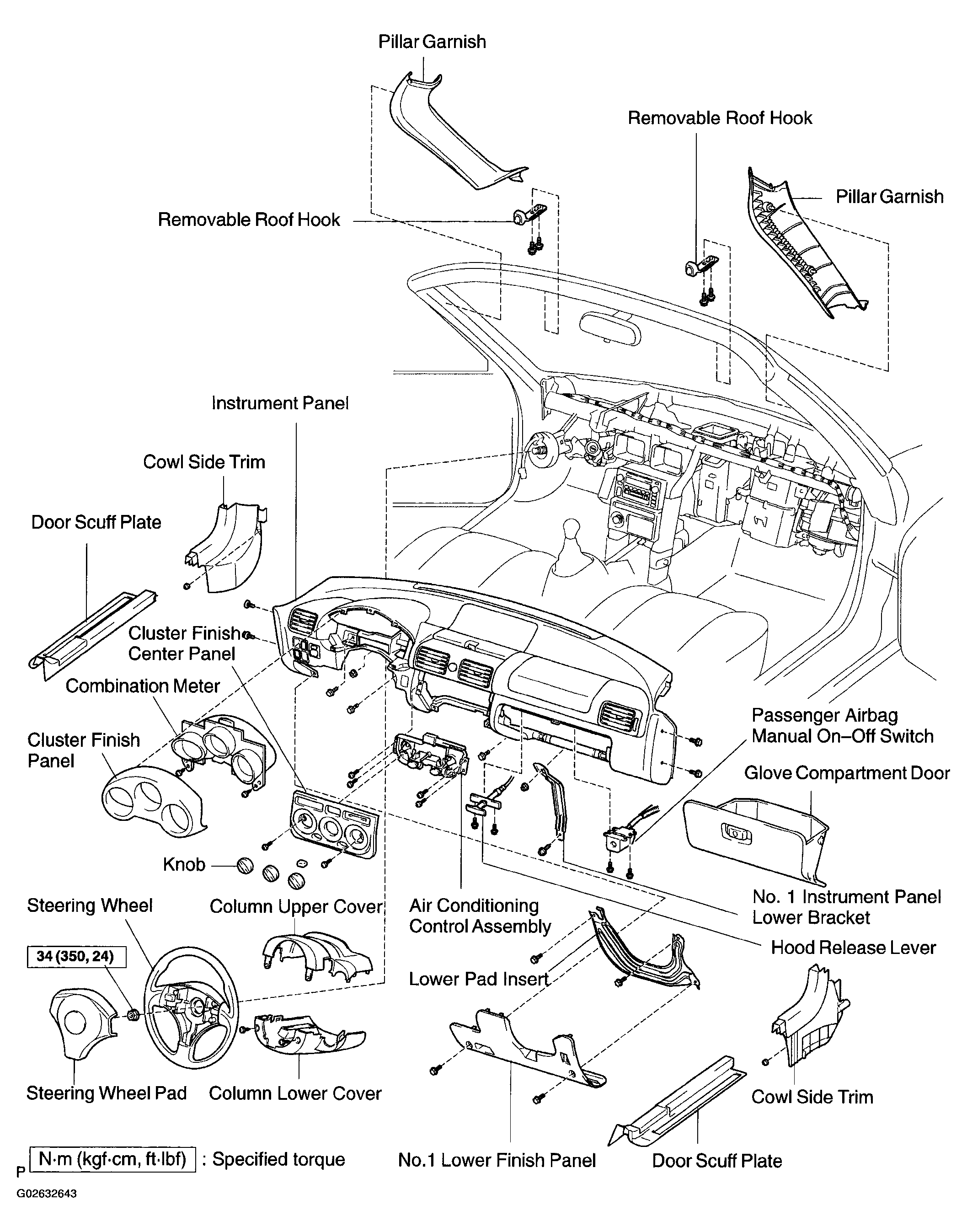

Fig 1: Identifying Heater Unit Components (1 Of 5)
G02632643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

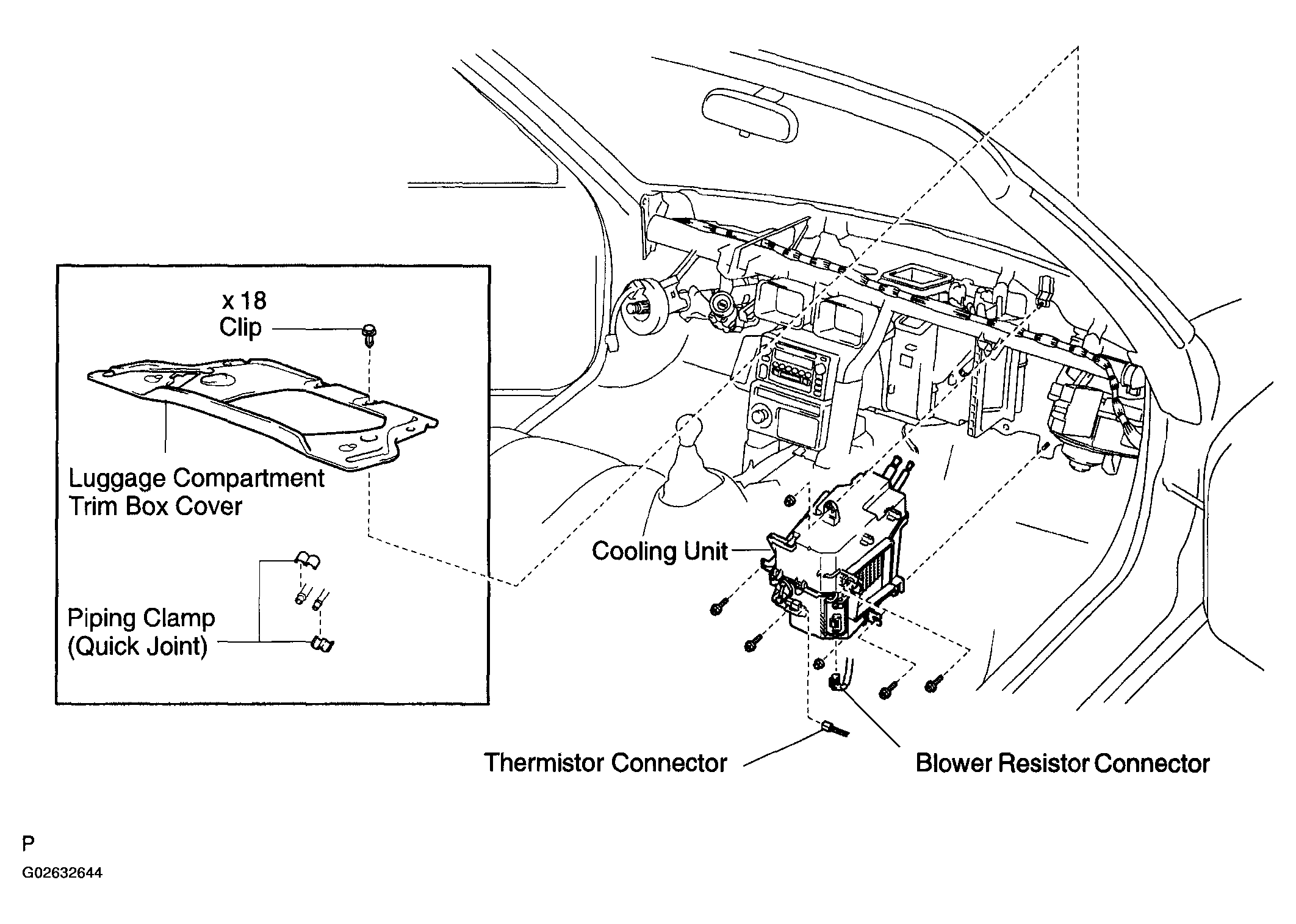

Fig 2: Identifying Heater Unit Components (2 Of 5)
G02632644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

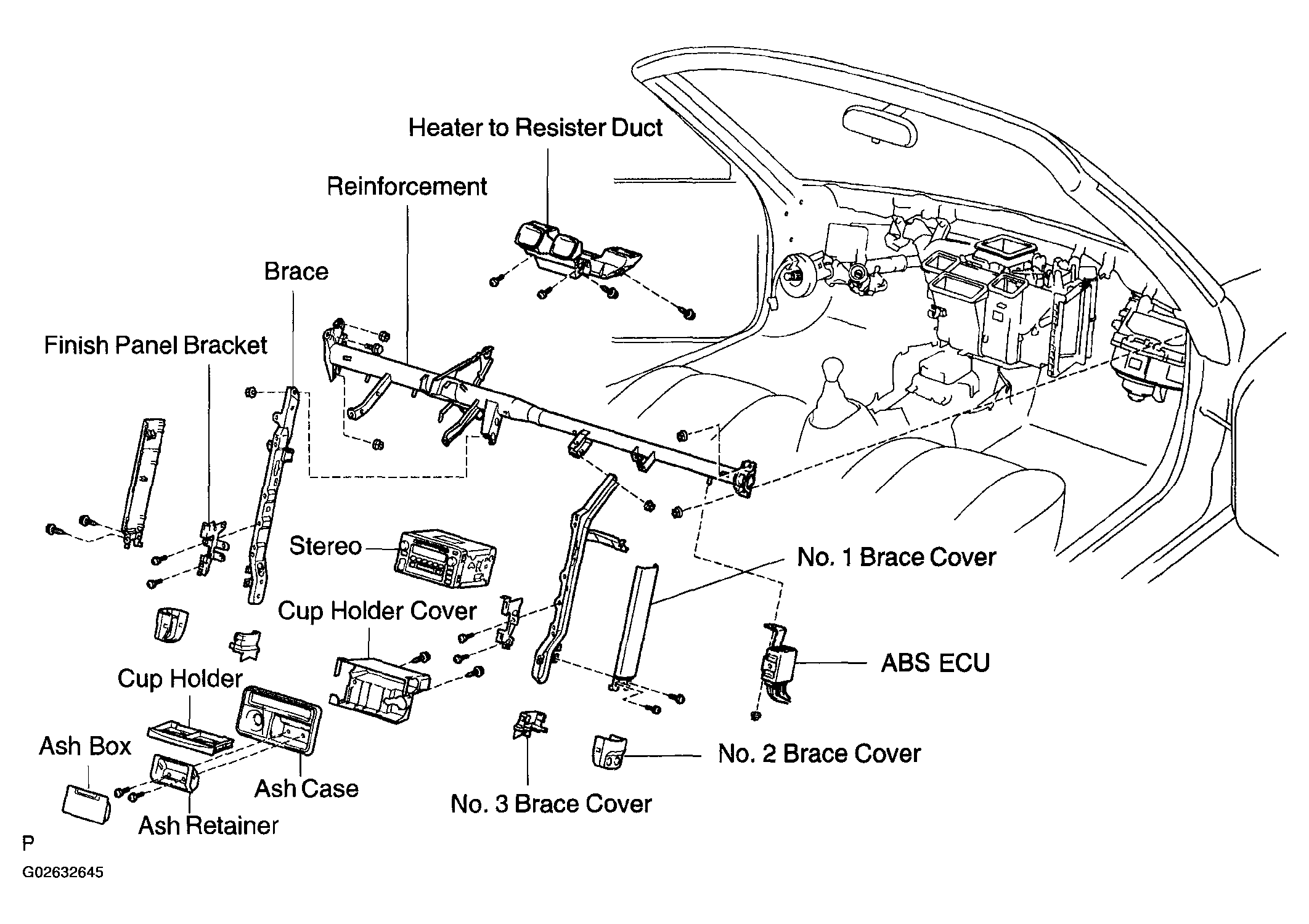

Fig 3: Identifying Heater Unit Components (3 Of 5)
G02632645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

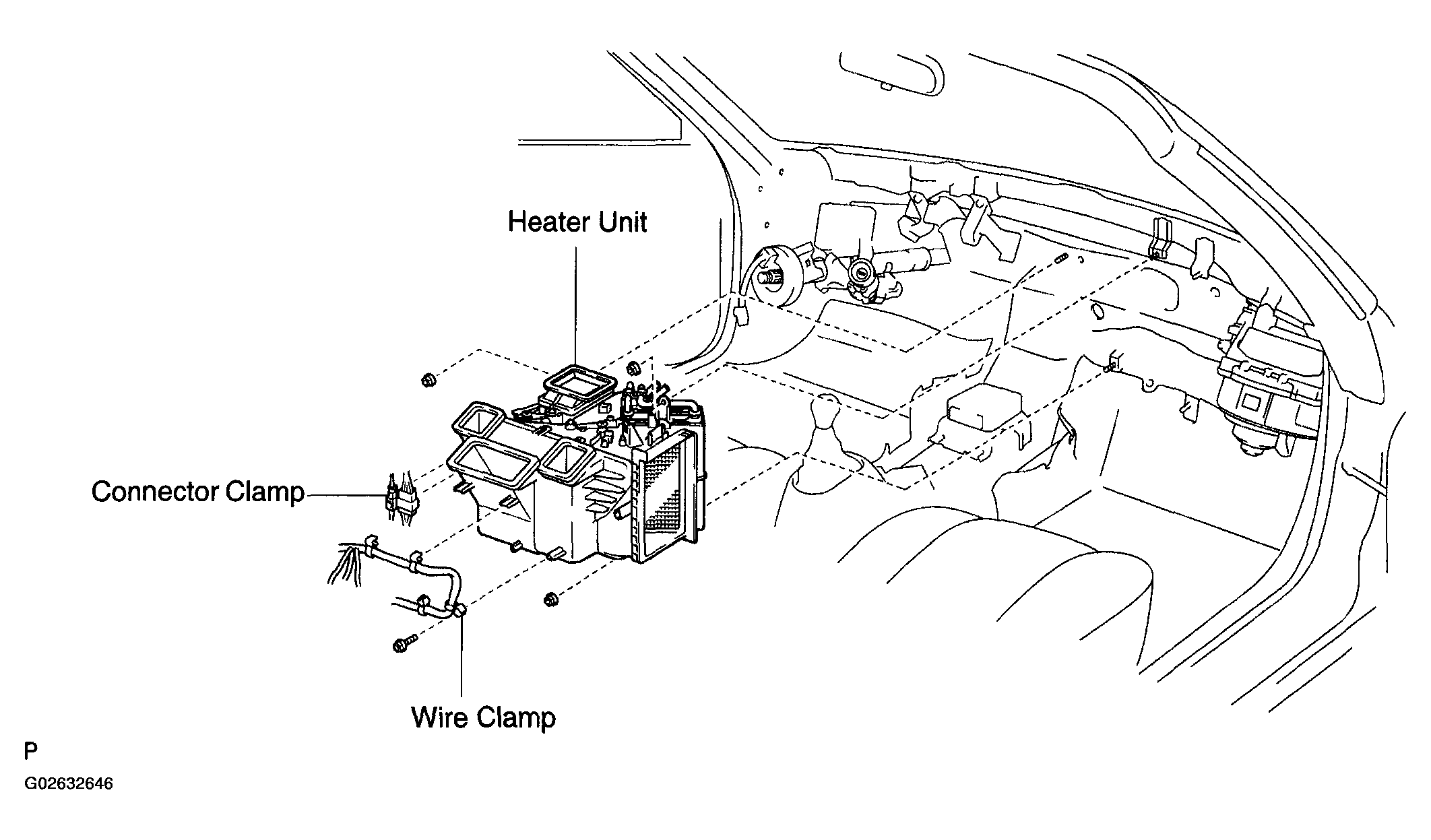

Fig 4: Identifying Heater Unit Components (4 Of 5)
G02632646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

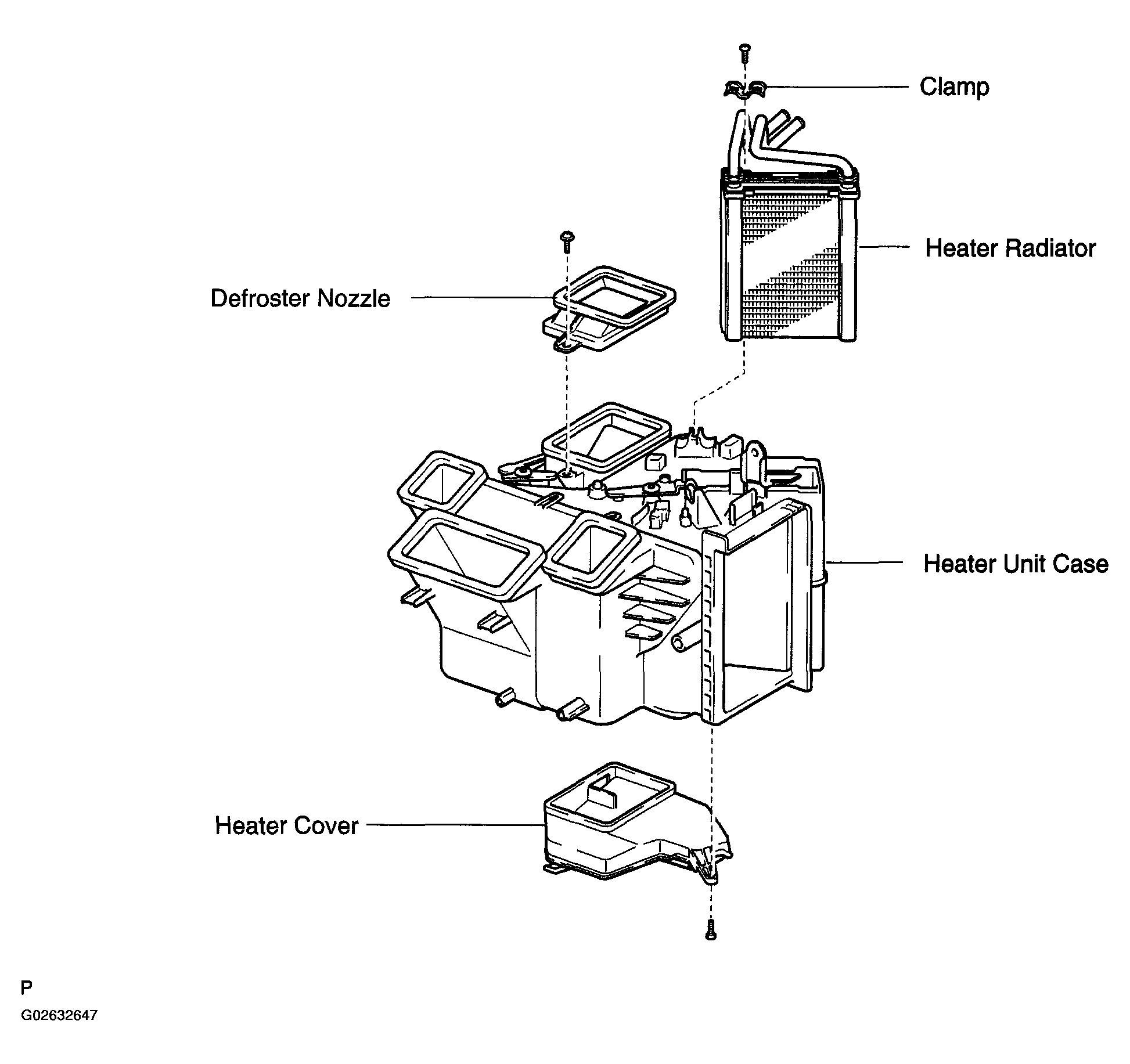

Fig 5: Identifying Heater Unit Components (5 Of 5)
G02632647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
