Heater Control Assembly: Removal

REMOVE CENTER CLUSTER FINISH PANEL
1. Remove the 4 knobs.
2. Remove the 2 screws.
3. Using a screwdriver, remove the center cluster finish panel.

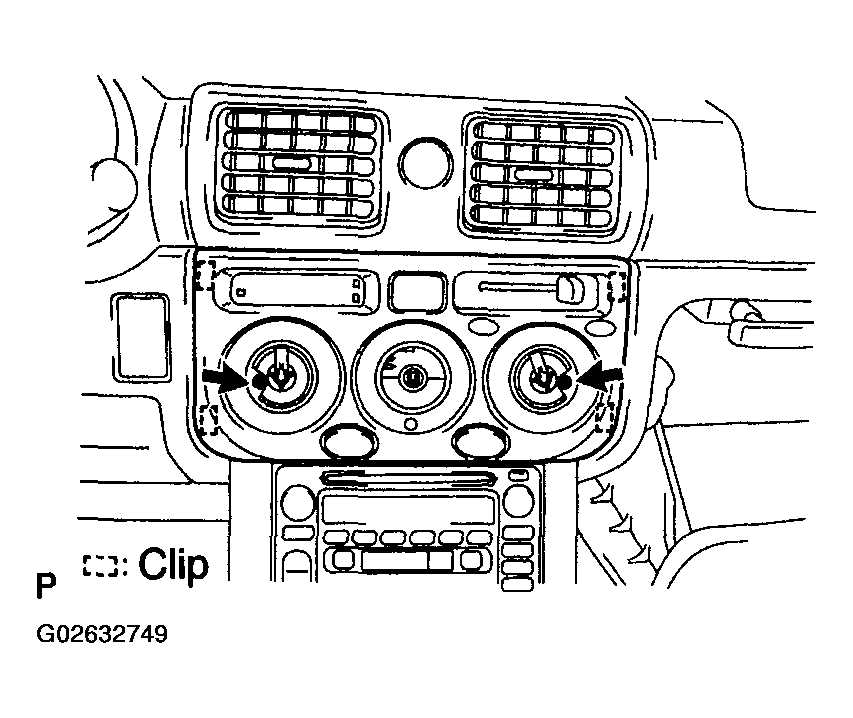

  Fig 1: Removing Center Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
4. Disconnect the clock connector from the clock.
5. Remove the center cluster finish panel.
REMOVE GLOVE COMPARTMENT DOOR
DISCONNECT HEATER CONTROL CABLES
NOTE: When the cables are disconnected, be careful not to bend the cable.

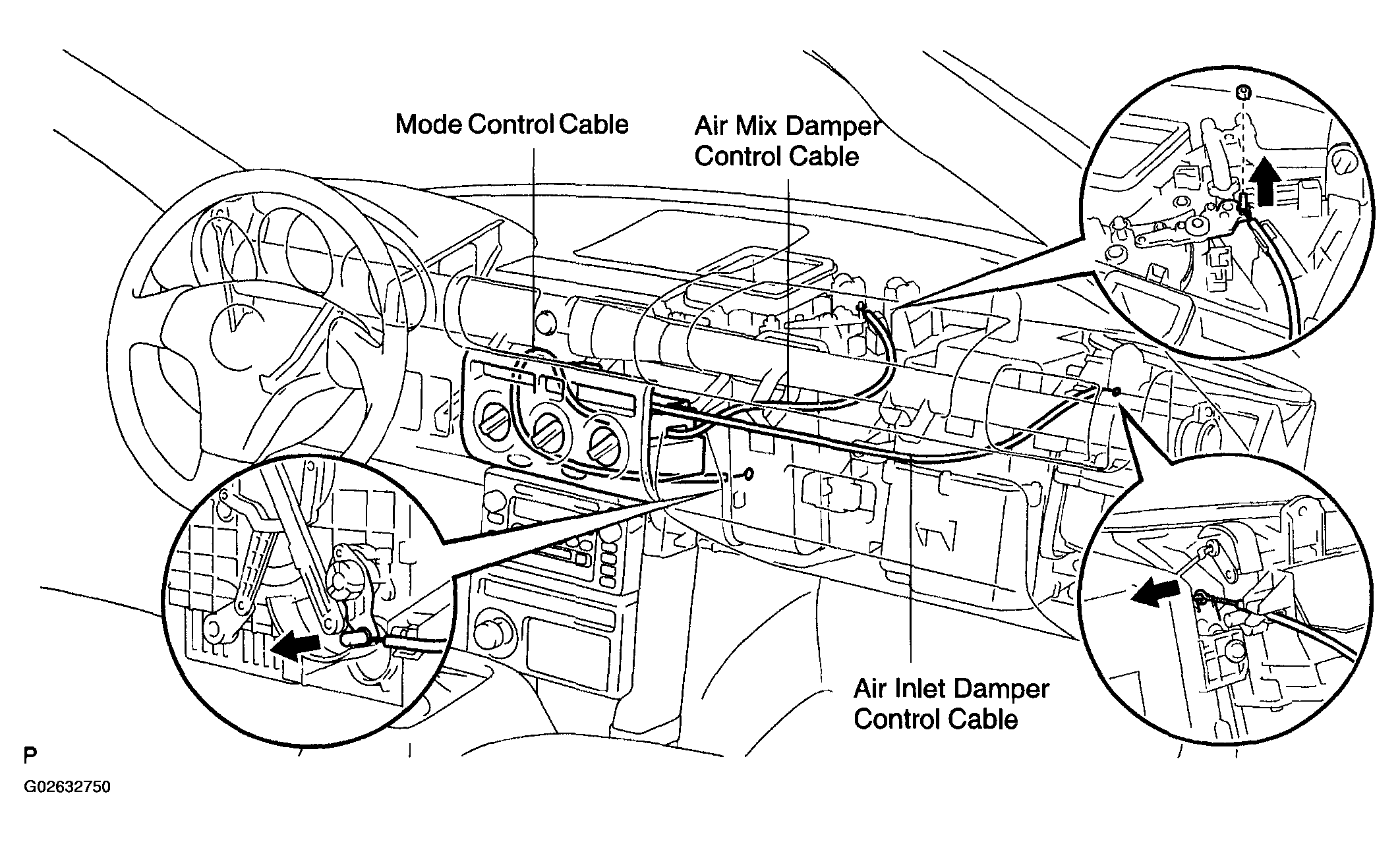

Fig 2: Identifying Heater Control Cables
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL ASSEMBLY
Remove the 4 screws and control assembly, then disconnect the 2 connectors.

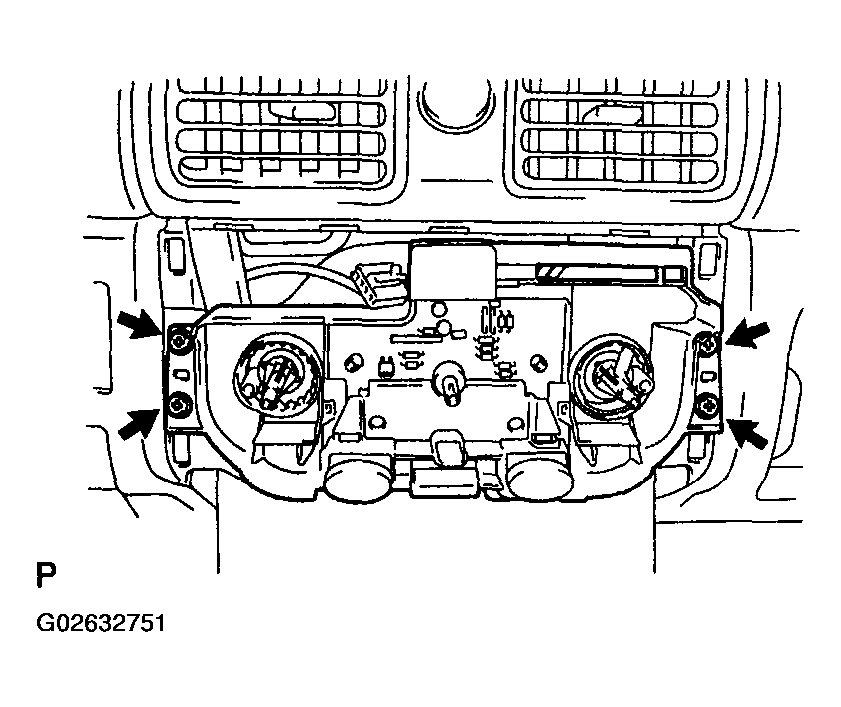

Fig 3: Removing Heater Control Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
