Heater Control Assembly: Installation

1. Connect the 2 connectors to the heater control assembly.
2. Pass through the A/C control cables as shown in the illustration.

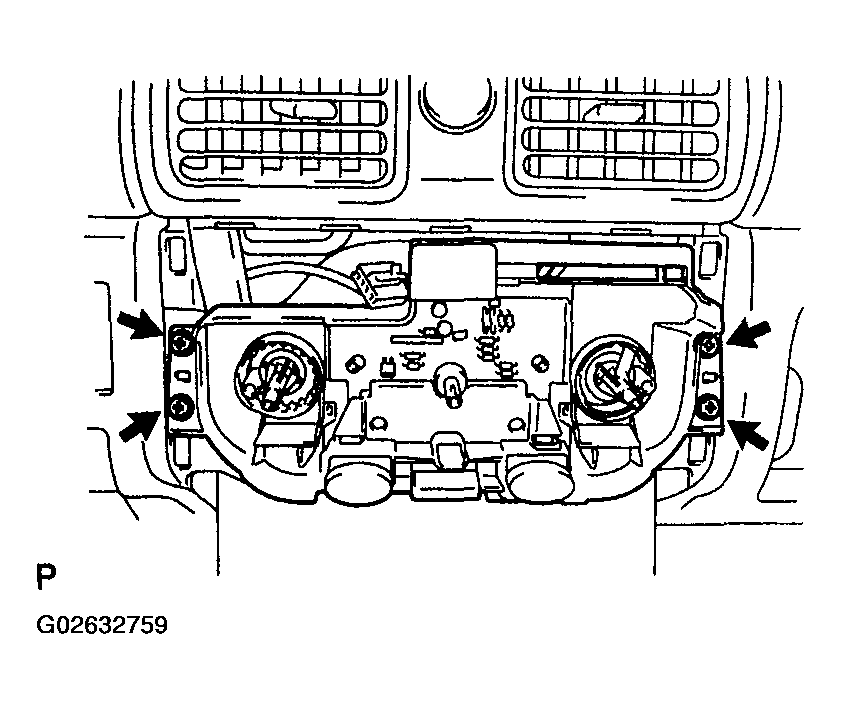

   Fig 1: Identifying Heater Control Assembly Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

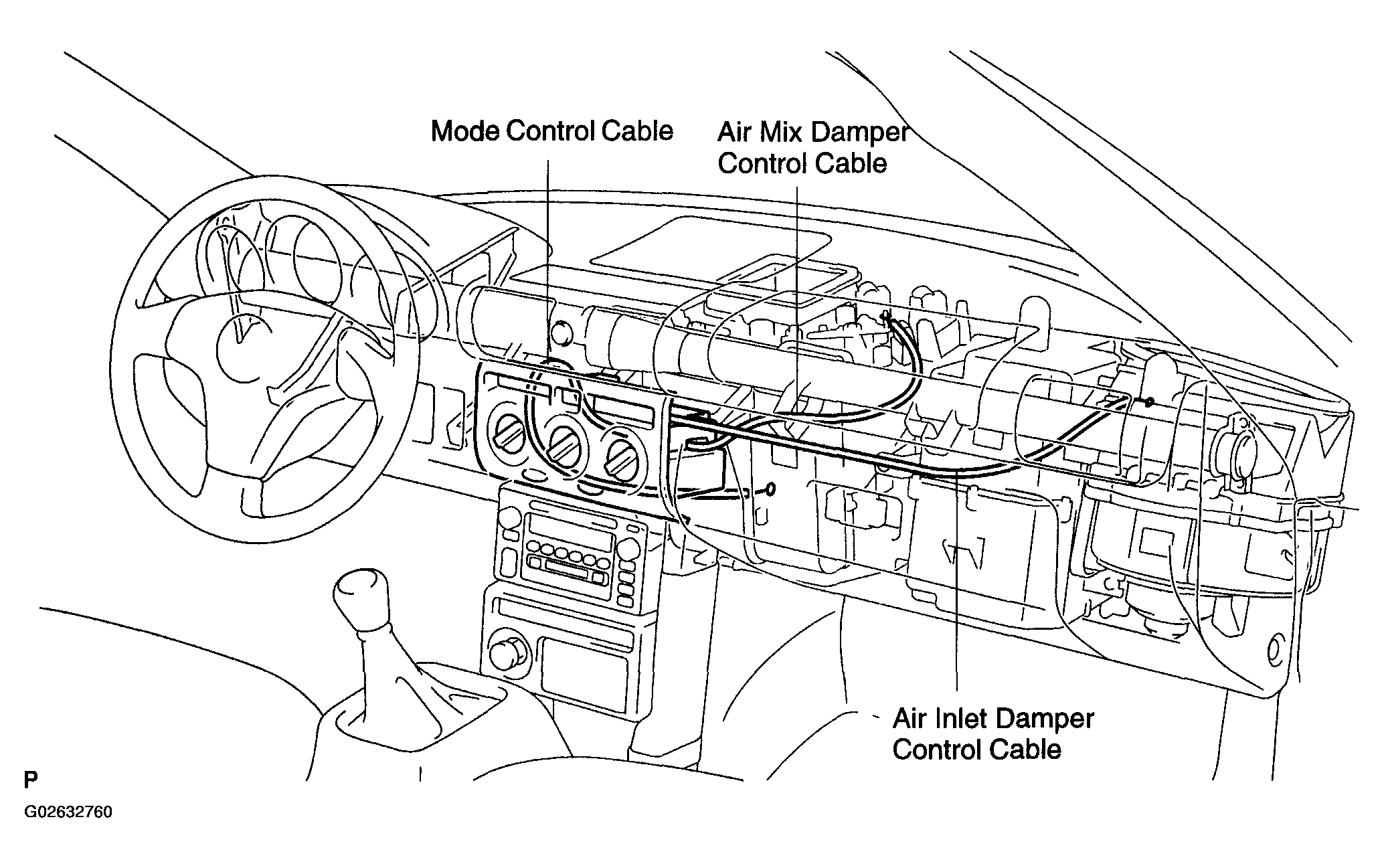

   Fig 2: Identifying A/C Control Cables

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the heater control assembly with the 4 screws.

1. Connect the clock connector to the clock.
2. Install the center cluster finish panel with the 2 screws.
3. Install the 4 knobs.

1. Set the air inlet control lever to "RECIRC" position.
2. Set the temperature control dial to "MAX. COOL" position.
3. Set the mode control dial to "FACE" position.

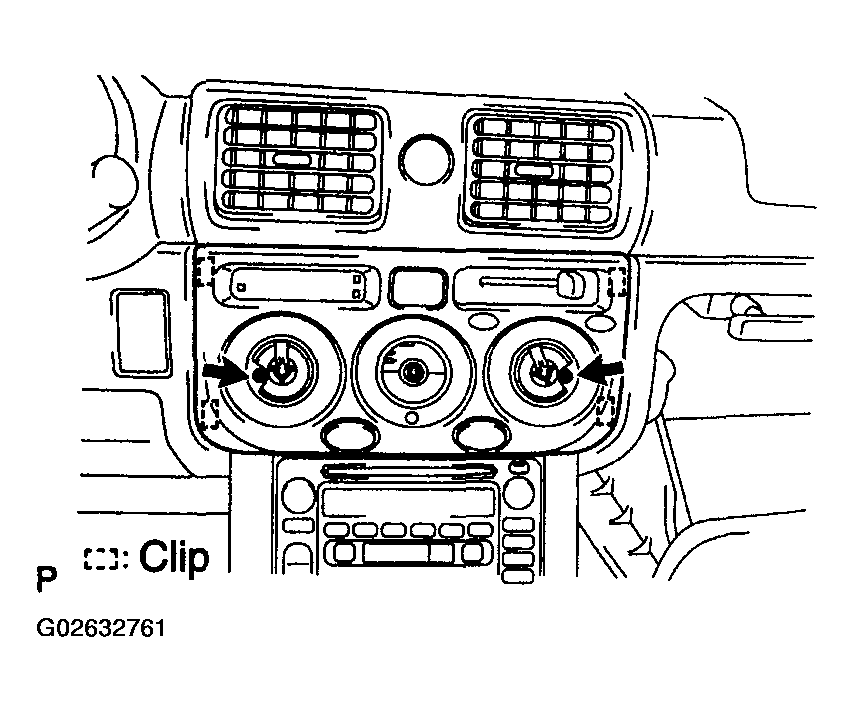

   Fig 3: Installing Center Cluster Finish Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Adjust the air inlet damper control cable.

   Set the air inlet damper control lever to "RECIRC" position and connect the inner cable to lever pin and clamp the outer cable.

   HINT:

   Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

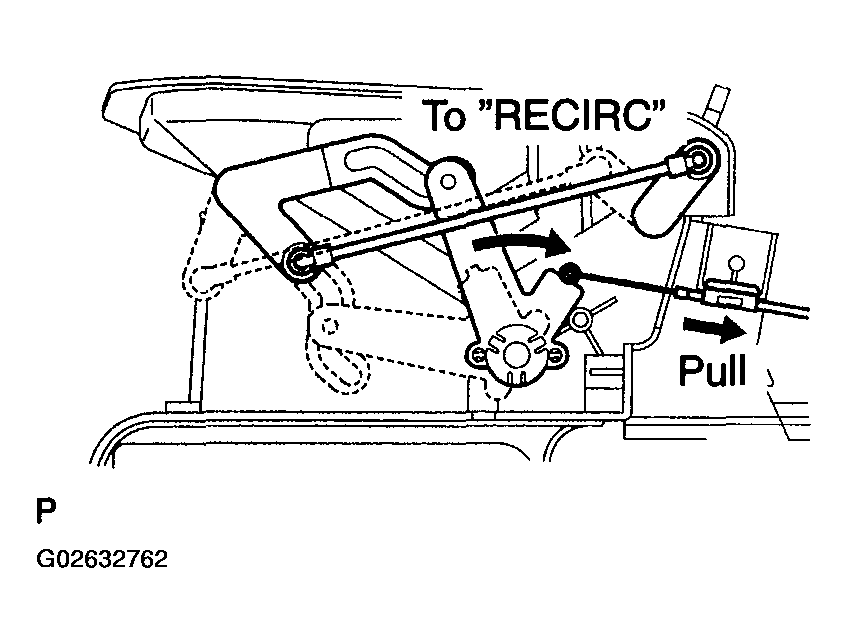

   Fig 4: Setting Air Inlet Damper Control Lever To "RECIRC" Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Adjust air mix damper control cable.

   Set the air mix damper control lever to "MAX. COOL" position and connect the inner cable to lever pin and clamp the outer cable.

   HINT:

   Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

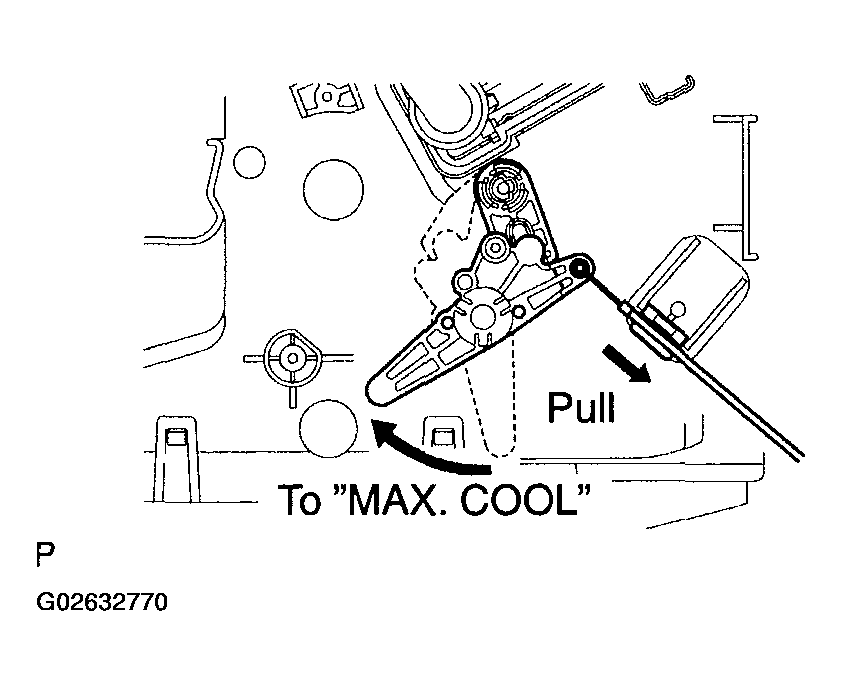

   Fig 5: Setting Air Mix Damper Control Lever To "MAX. COOL" Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

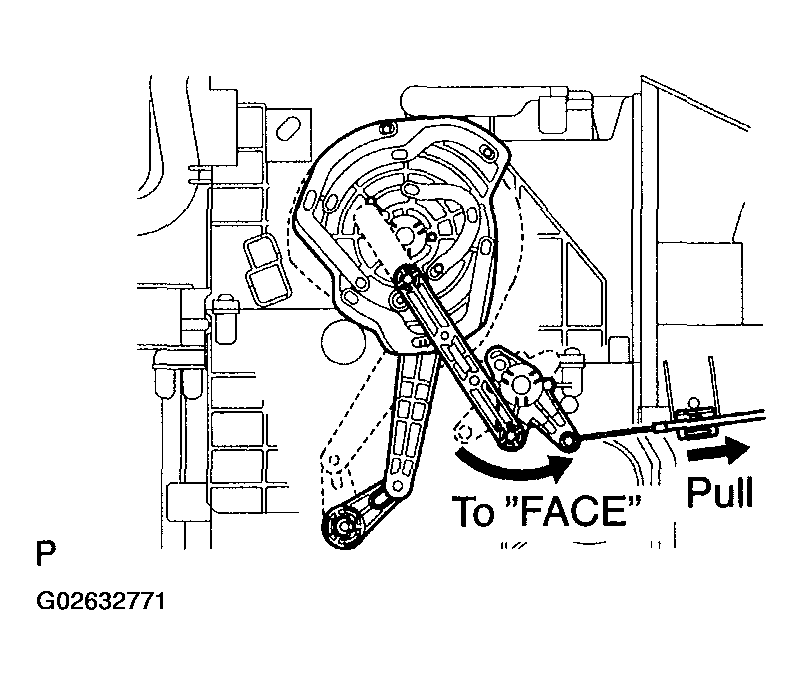

6. Adjust the mode control cable.

Pull the air outlet damper control link to "FACE" position, connect the control cable and lock the clamp.

HINT:

Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.
