Cooling Unit: Components

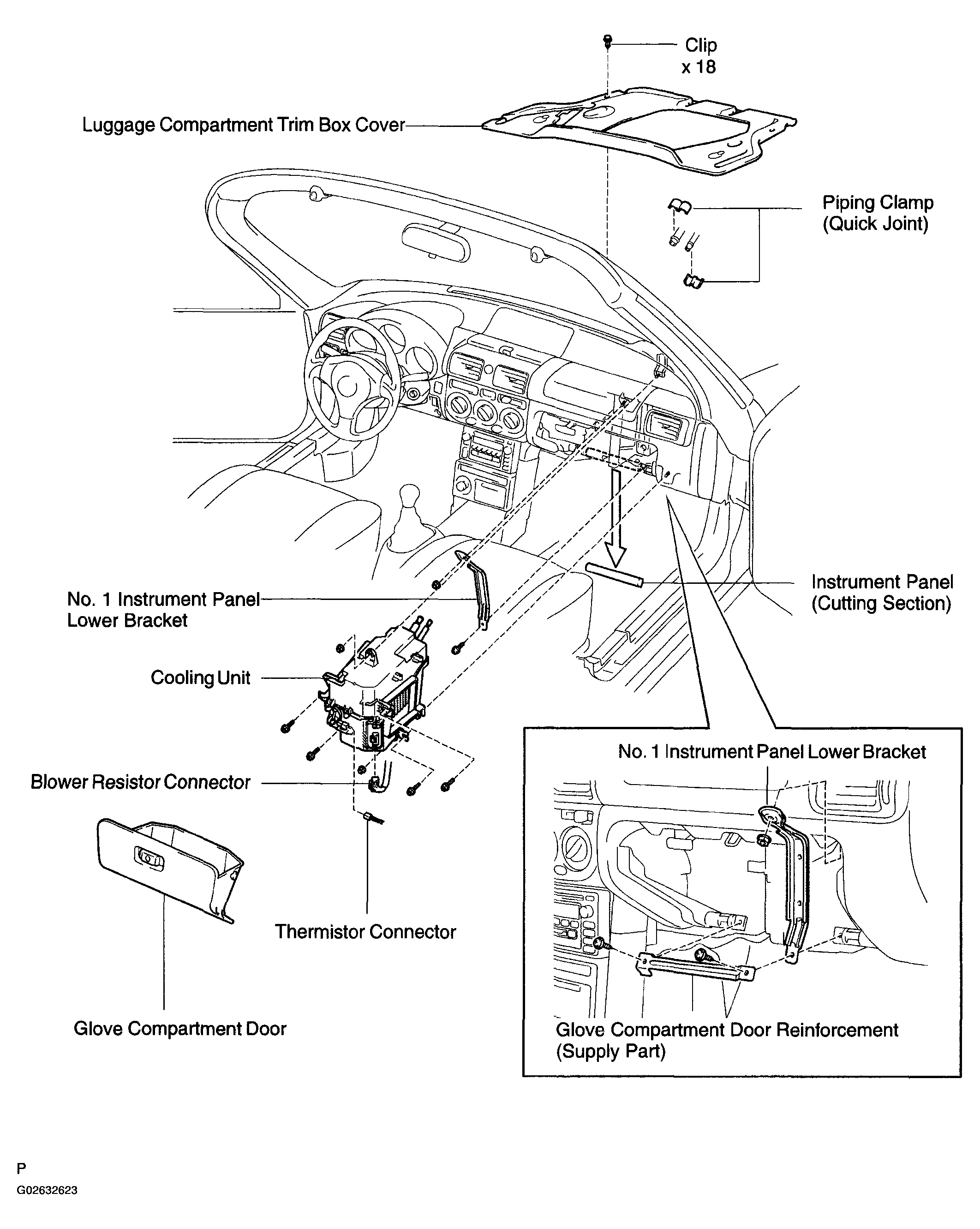

Fig 1: Identifying Cooling Unit Components (1 Of 2)
G02632623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

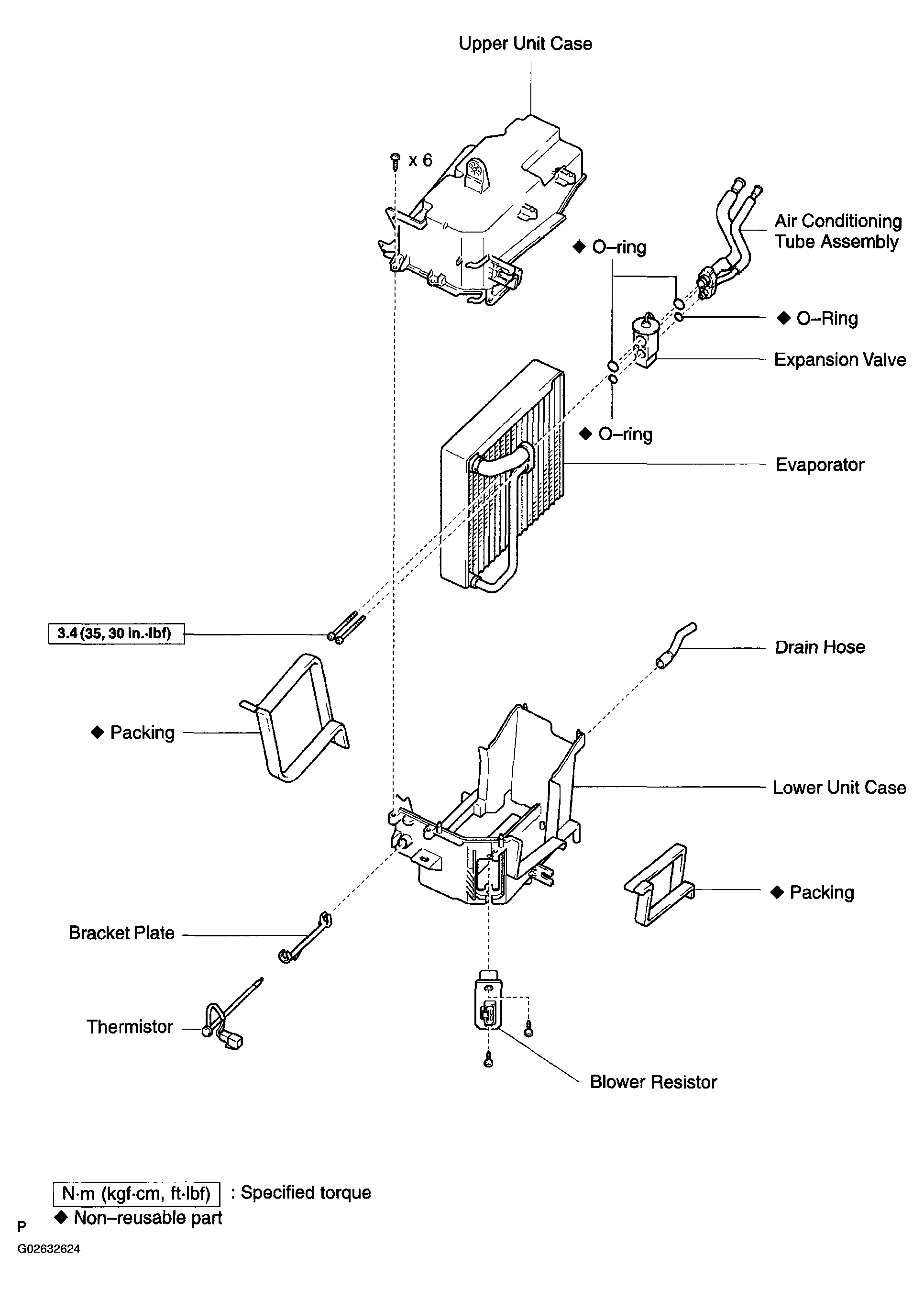

Fig 2: Identifying Cooling Unit Components (2 Of 2)
G02632624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
