Air Conditioning: Condenser: Replacement

Using a 10 mm hexagon wrench, remove the cap from the modulator.
Remove the filter from the modulator.

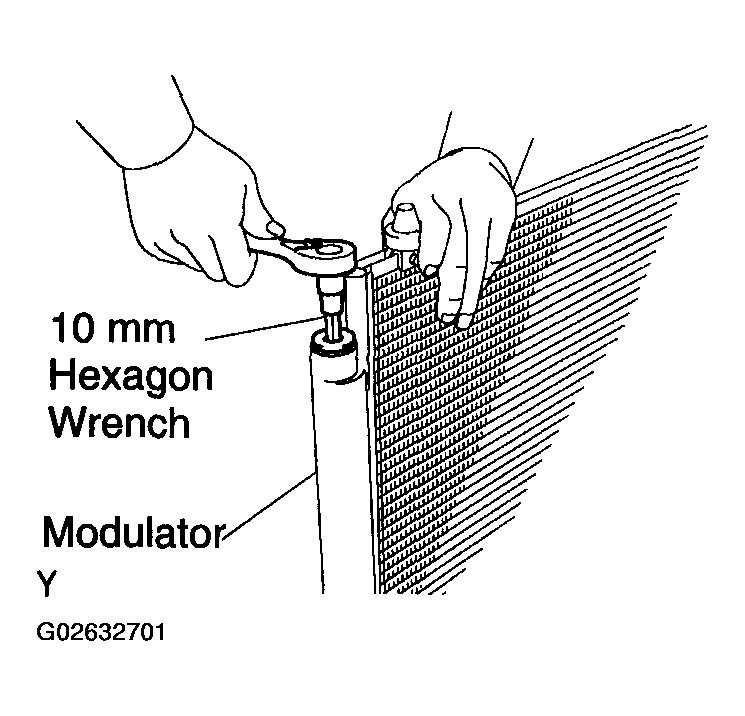

Fig 1: Removing Cap From Modulator Using A Hexagon Wrench
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using pliers, remove the dryer.

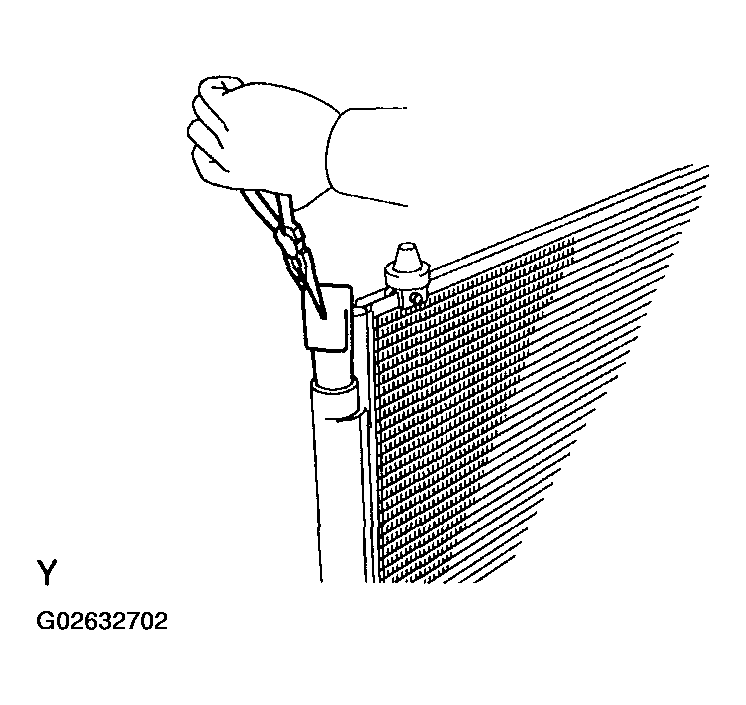

Fig 2: Removing Dryer Using Pliers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Insert a new dryer into the modulator.
NOTE:
- Do not remove the dryer from a vinyl bag until inserting it into the modulator.
- Install the dryer with its 2 layered part faced upward to the modulator.

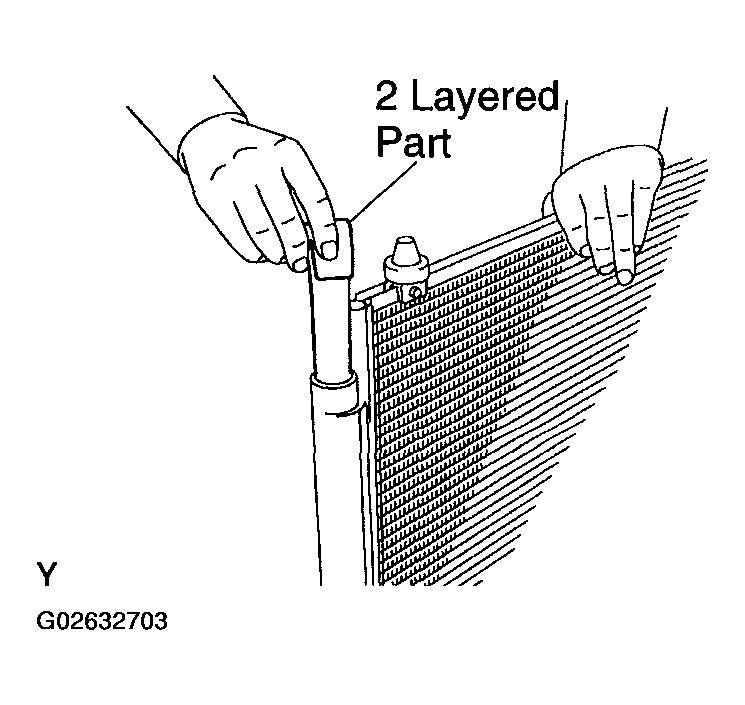

Fig 3: Inserting Dryer 2 Layered Part Into Modulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Insert the filter into the modulator.
NOTE: Install the filter with its protrusion faced downward to the modulator.

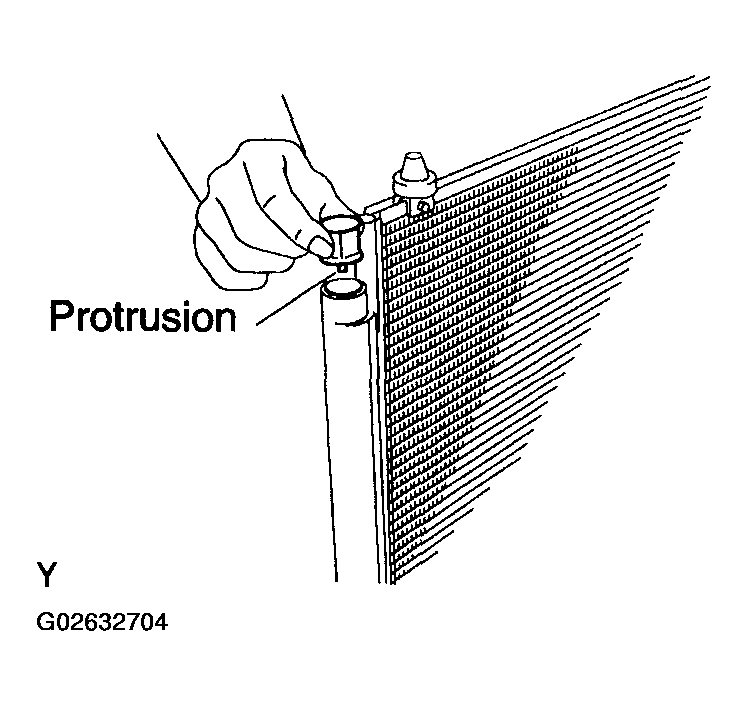

Fig 4: Inserting Filter Into Modulator With Protrusion Faced Downward
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the cap to the modulator.
1. Apply compressor oil to the O-rings and screw part of the cap.
  Compressor oil: ND-OIL 8 or equivalent
2. Using a 10 mm hexagon wrench, install the caps.
  Torque: 12.3 N.m (125 kgf.cm, 9 ft.lbf)

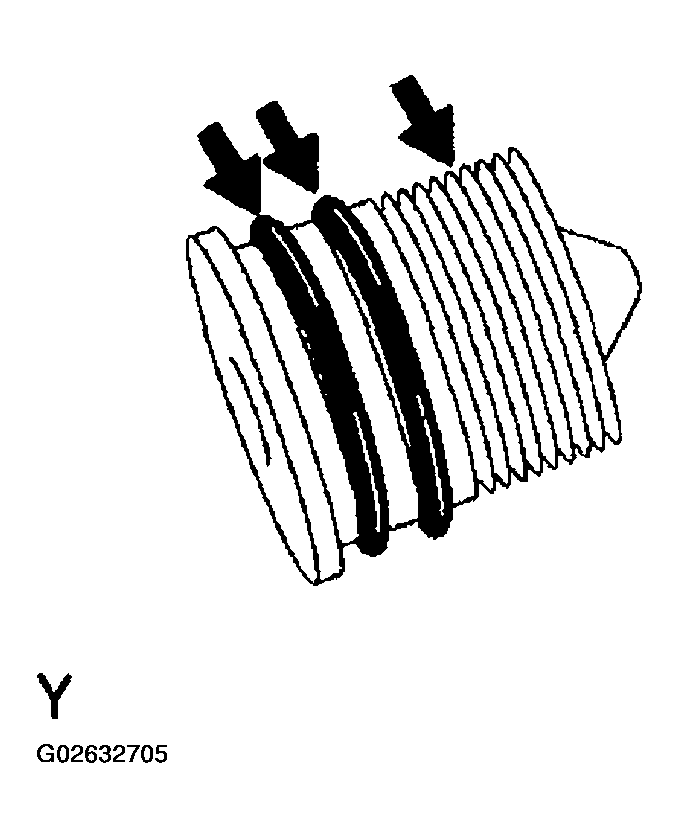

Fig 5: Applying Compressor Oil To O-Rings And Caps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
