Air Conditioning: Condenser: Components

Fig 1: Identifying Condenser Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

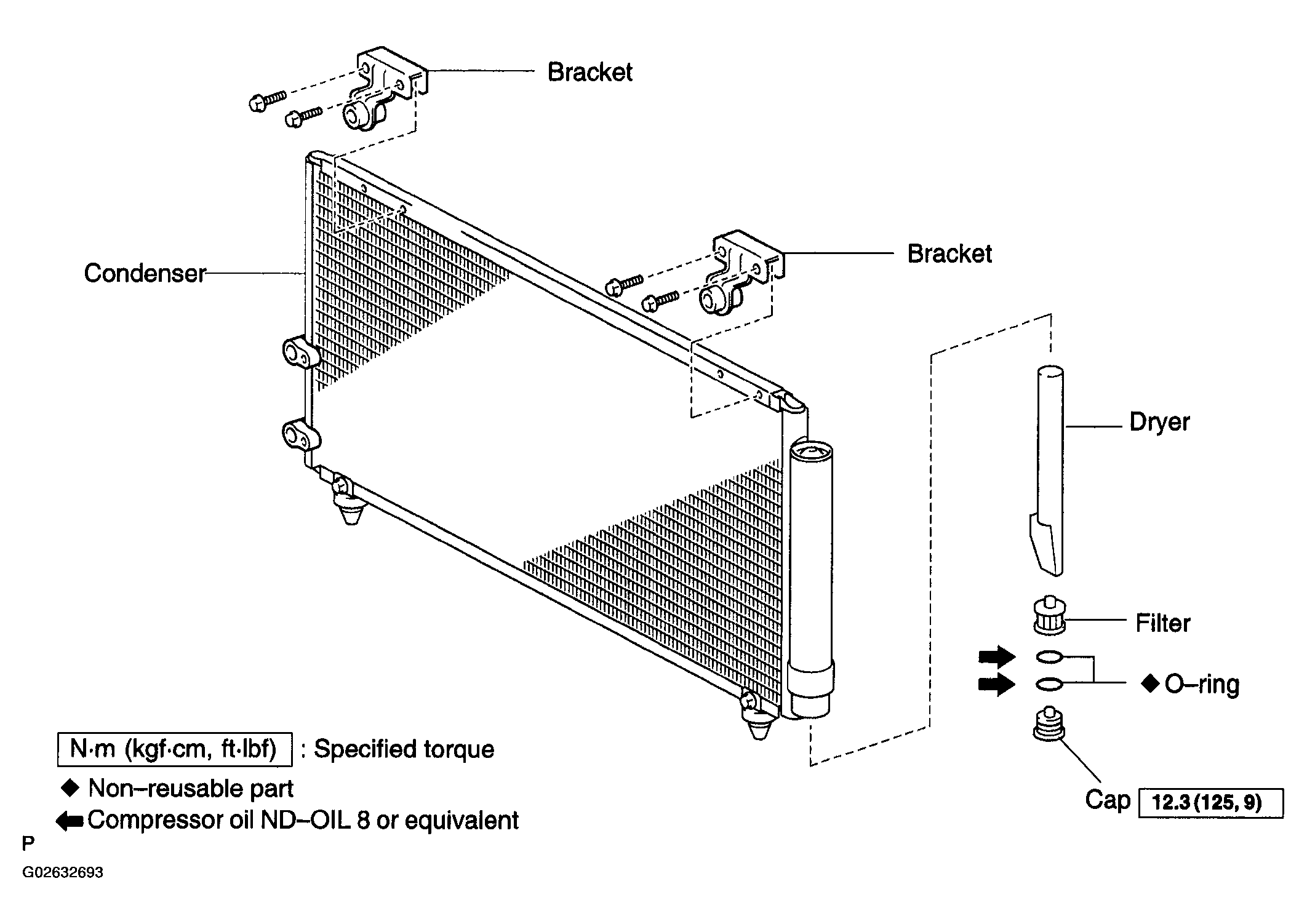

Fig 2: Identifying Condenser Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

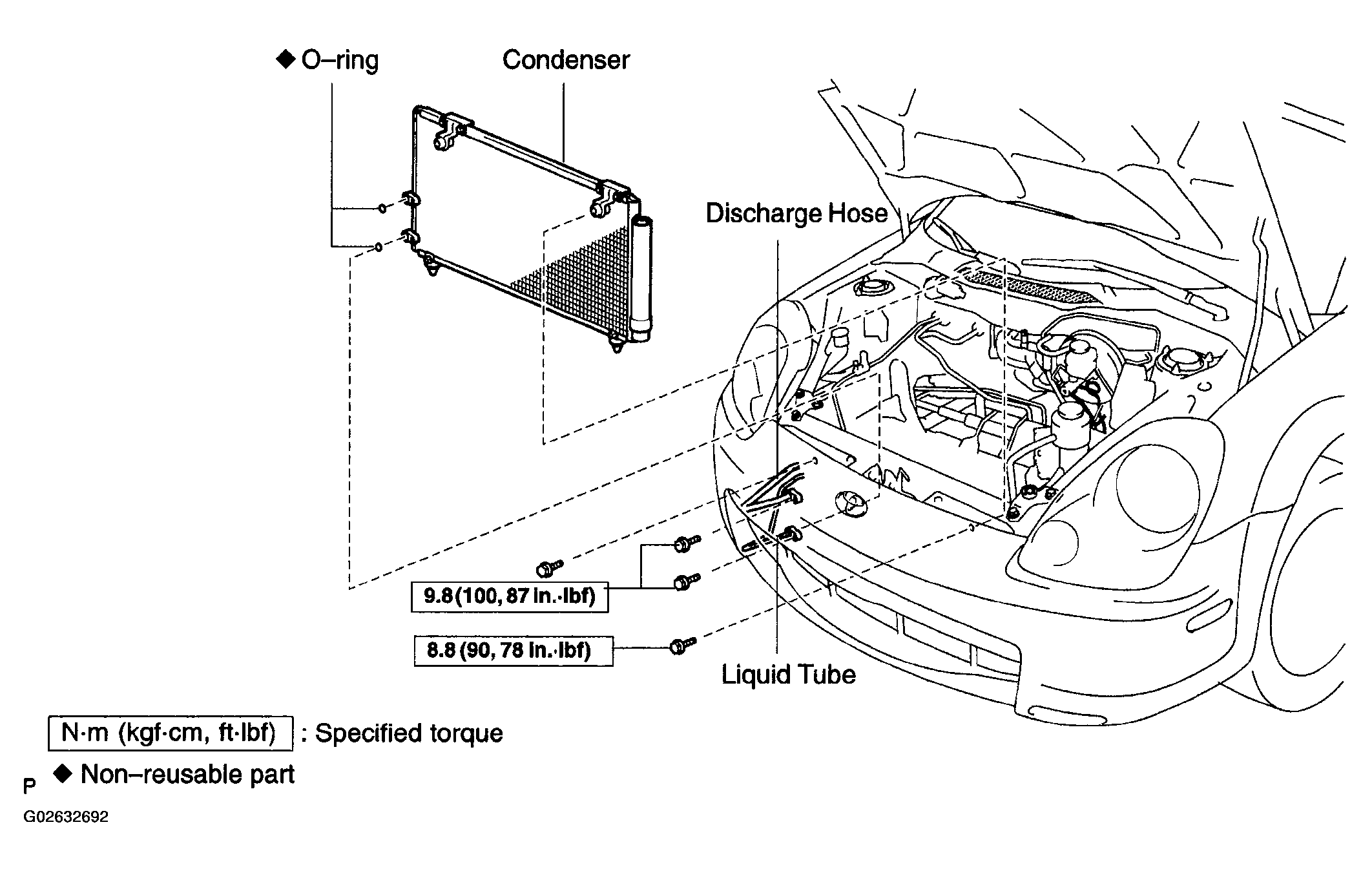

Fig 3: Identifying Condenser Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
