Blower Unit: Reassembly

Using a Torx wrench, install the blower motor with the 3 screws.

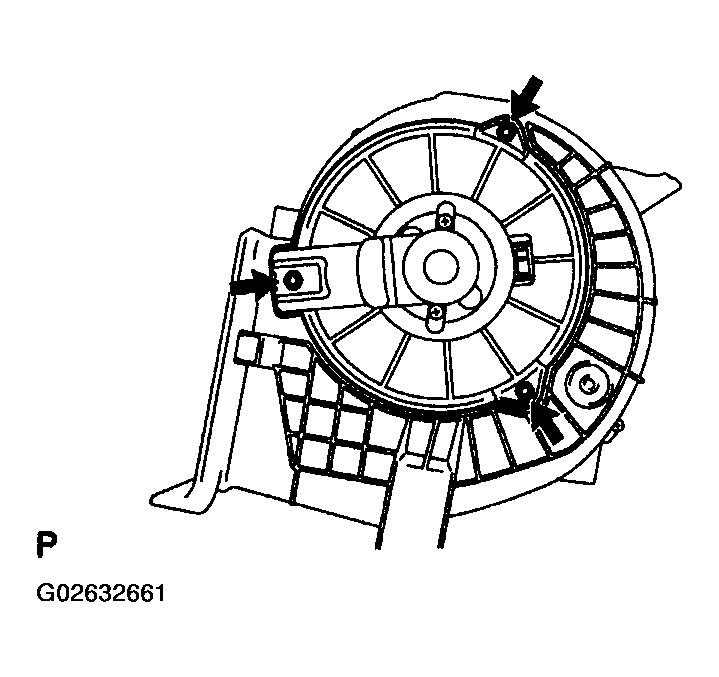

Fig 1: Identifying Blower Motor Screws

G02632661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
