Blower Unit: Installation

  1. INSTALL BLOWER UNIT
    1. Install the blower unit with the 2 nuts and bolt.
    2. Install the ABS ECU with the bolt to the reinforcement.
    3. Connect the blower motor connector.
  2. INSTALL COOLING UNIT (See  INSTALLATION  )
  3. INSTALL INSTRUMENT PANEL (See  INSTALLATION  )

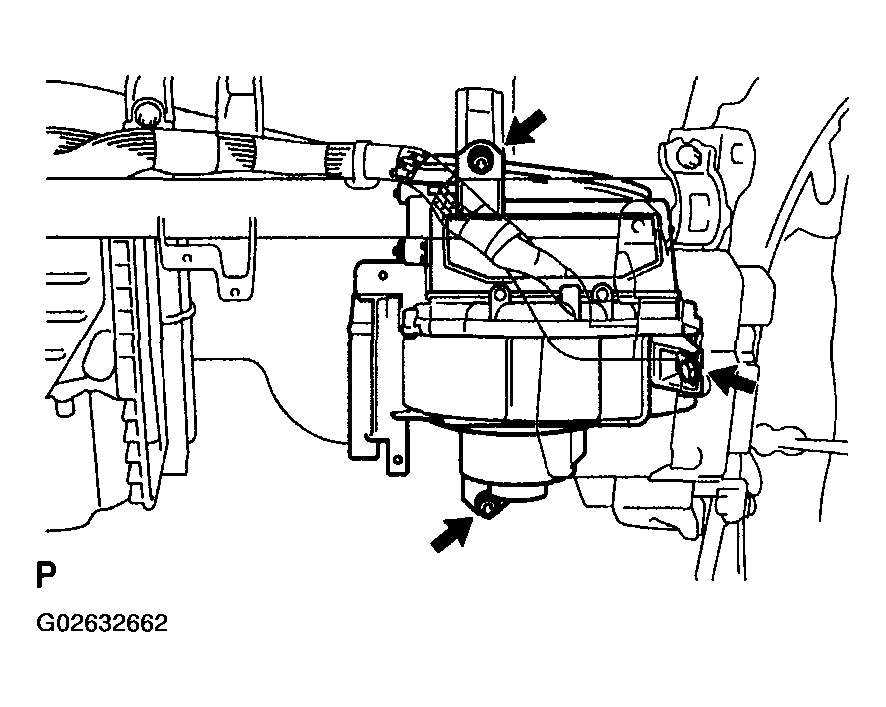

    Fig 1: Identifying Blower Unit Nuts And Bolt
    G02632662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
