Blower Unit: Disassembly

  1. REMOVE BLOWER MOTOR

    Using a Torx wrench, remove the 3 screws and blower motor.

  2. INSPECT BLOWER MOTOR (See  BLOWER MOTOR  )

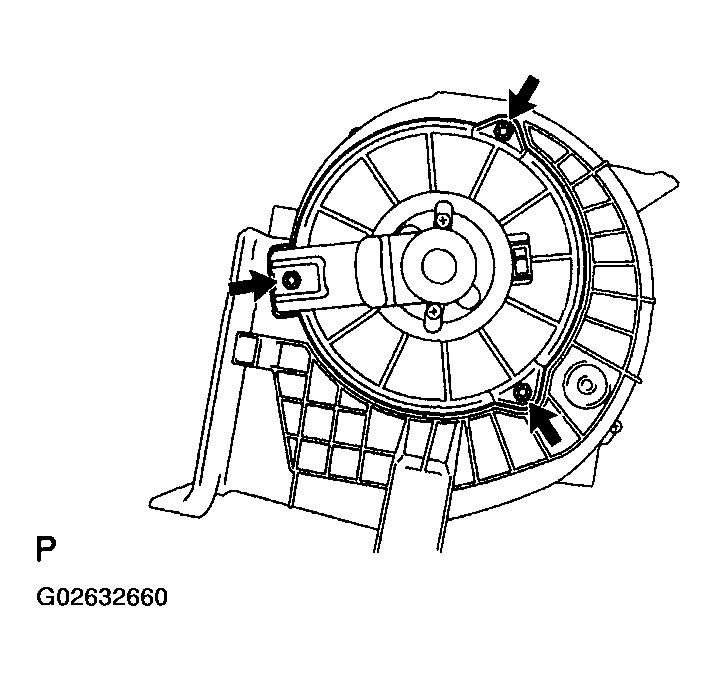

    Fig 1: Identifying Blower Motor Screws
    G02632660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
