Air Conditioning System: Precaution

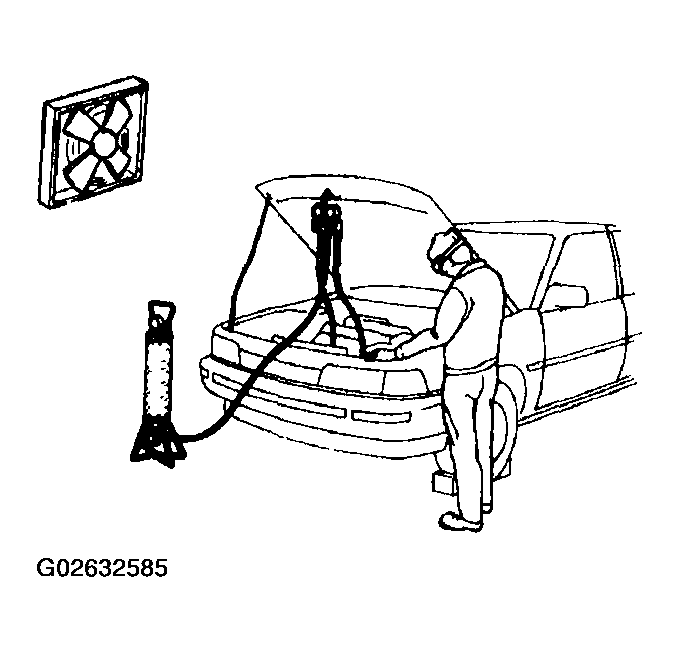

DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA
ALWAYS WEAR EYE PROTECTION

Fig 1: Precautions - Wearing Eye Protection
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

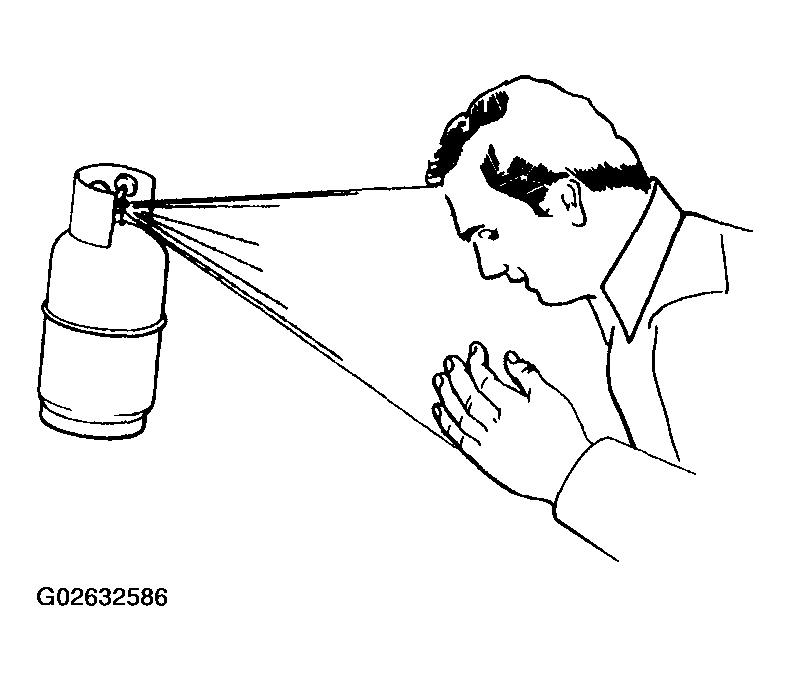

BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN YOUR EYES OR ON YOUR SKIN
If liquid refrigerant gets in your eyes or on your skin.
1. Wash the area with much cool water.
  CAUTION: Do not rub your eyes or skin.
2. Apply clean petroleum jelly to the skin.
3. Go immediately to a physician or hospital for professional treatment.
NEVER HEAT CONTAINER OR EXPOSE IT TO NAKED FLAME
BE CAREFUL NOT TO DROP CONTAINER AND NOT TO APPLY PHYSICAL SHOCKS TO IT

Fig 2: Precautions - Preventing Liquid Refrigerant From Contacting Eyes Or Skin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DO NOT OPERATE COMPRESSOR WITHOUT ENOUGH REFRIGERANT IN REFRIGERATION SYSTEM
If there is not enough refrigerant in the refrigerant system oil lubrication will be insufficient and compressor burnout may occur, so care should be taken to avoid this.

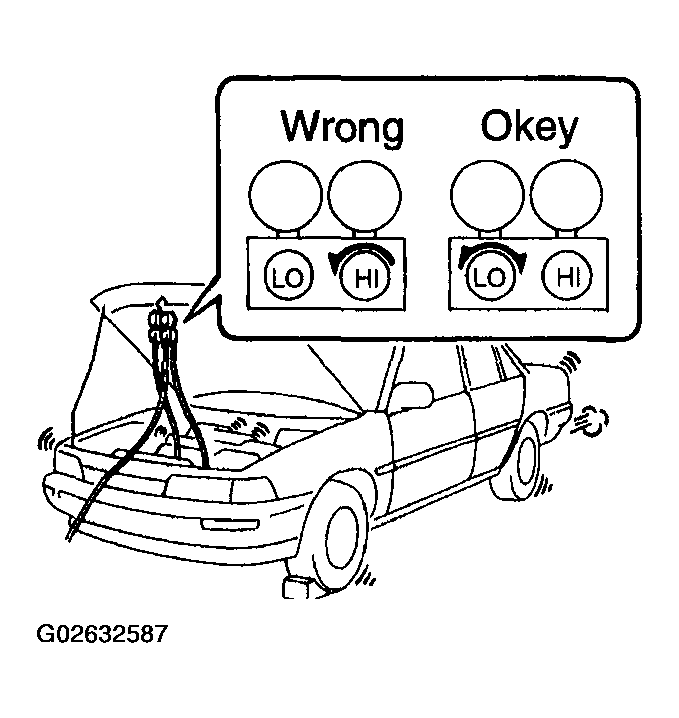

DO NOT OPEN PRESSURE MANIFOLD VALVE WHILE COMPRESSOR IS OPERATING
If the high pressure valve is opened, refrigerant flows in the reverse direction and could cause the charging cylinder to rupture, so only open and close the low pressure valve.
BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH REFRIGERANT
If refrigerant is overcharged, it causes problems such as insufficient cooling, poor fuel economy, engine overheating etc.

Fig 3: Precautions - Preventing Overheating Of System With Refrigerant
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
The MR2 is equipped with an SRS (Supplemental Restraint System) such as the driver and front passenger airbag. Failure to carry out service operation in the correct sequence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (including removal or installation of parts, inspection or replacement), refer to PRECAUTION in the RS article.
