Standard Bolt
>>
How To Determine Bolt Strength
How To Determine Bolt Strength

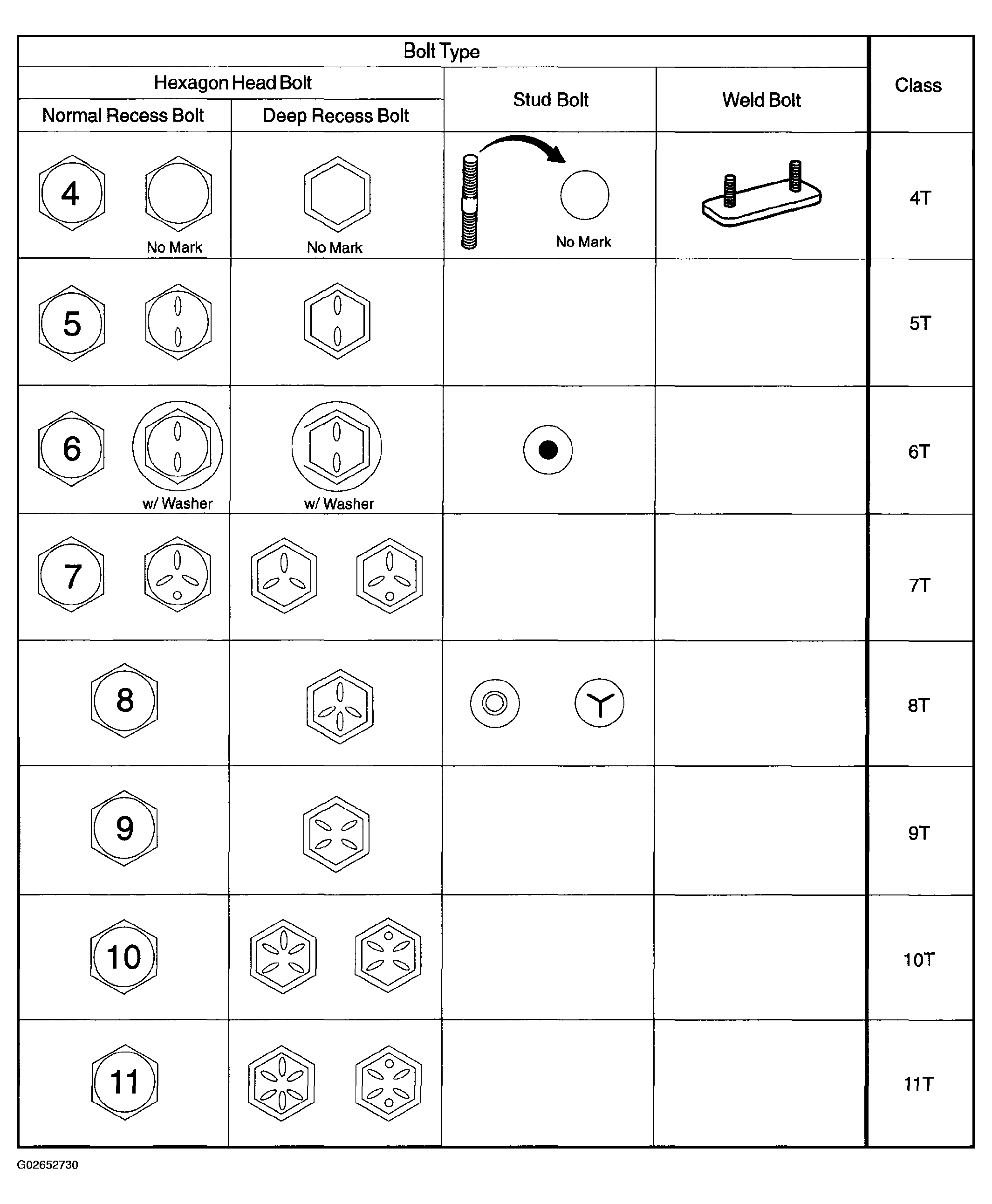

Fig 1: Standard Bolt Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
