Shift Lever: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL SHIFT LOCK SOLENOID
1. Install the link to the plunger.

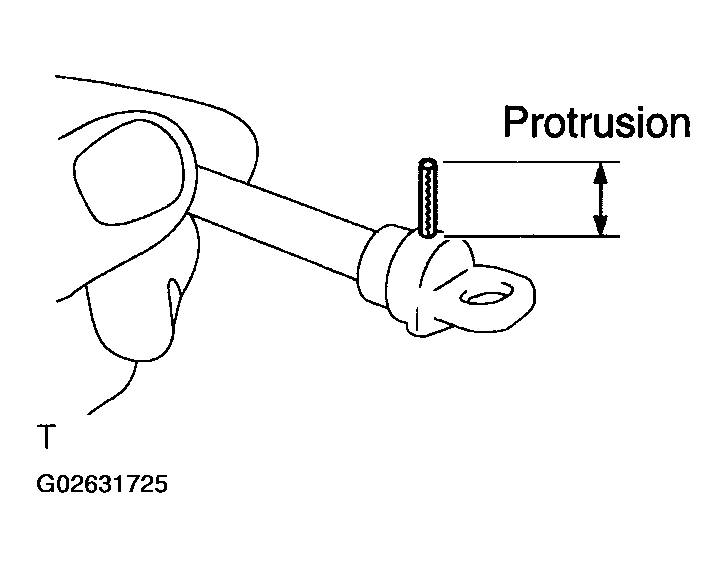

  Fig 1: Installing Slotted Spring Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a plastic-faced hammer, tap in a new slotted spring pin.
  Protrusion: 6 mm (0.24 in.)
3. Install the compression spring and the link assembly to the shift lock solenoid.

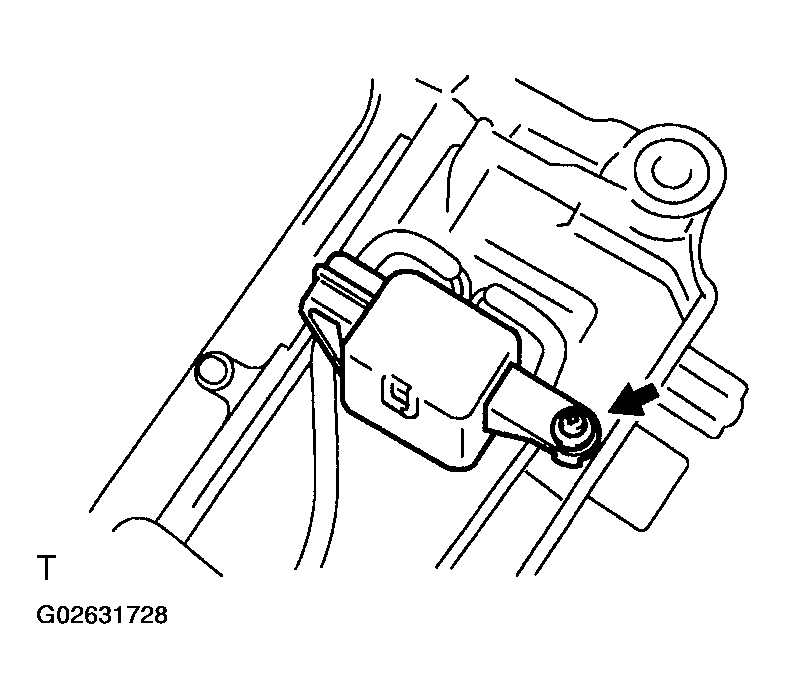

  Fig 2: Installing Shift Lock Solenoid Assembly And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the shift lock solenoid assembly with the bolt.
5. Disconnect the connector from the shift lock ECU.

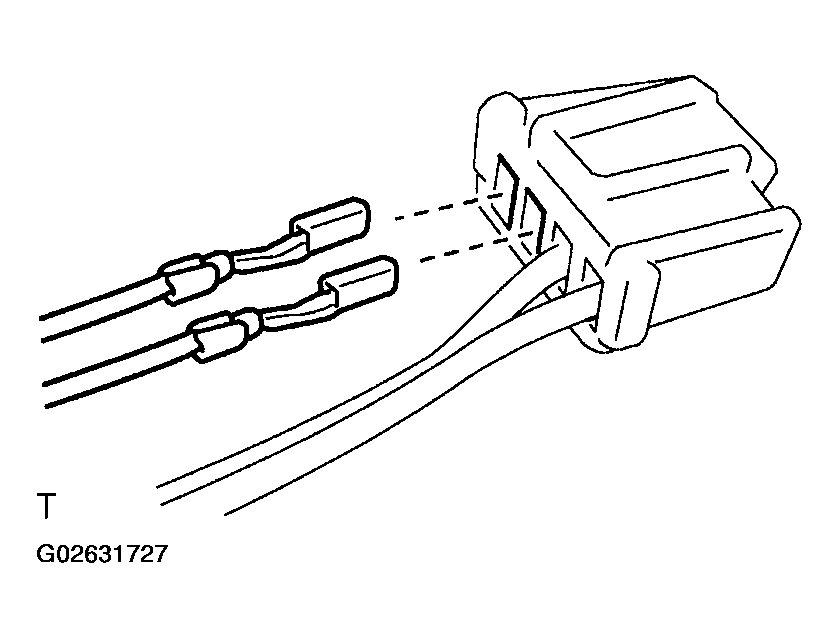

  Fig 3: Connecting Terminals To Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 2 terminals to the connector.
7. Reconnect the connector to the shift lock ECU.

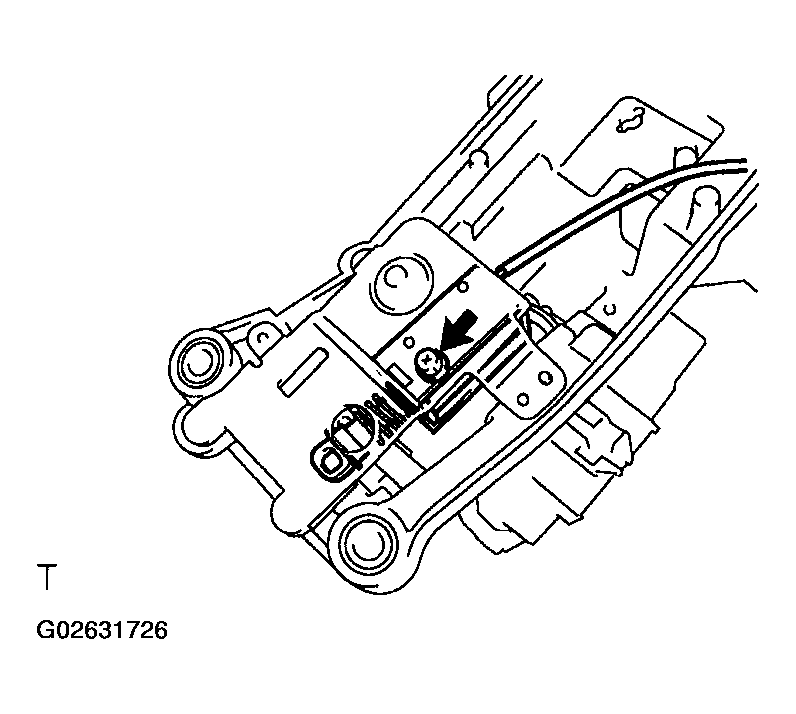

Fig 4: Installing Shift Lock ECU And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK ECU
Install the shift lock ECU with the bolt.
INSTALL SHIFT ILLUMINATION LAMP WIRE SUBASSEMBLY
1. Connect the 2 terminals to the connector.
2. Lock the secondary locking device.
3. Connect the clamp to the shift lever assembly.
4. Install the bulb to the shift illumination lamp wire subassembly.
5. Install the shift illumination lamp wire subassembly to the shift lever subassembly.

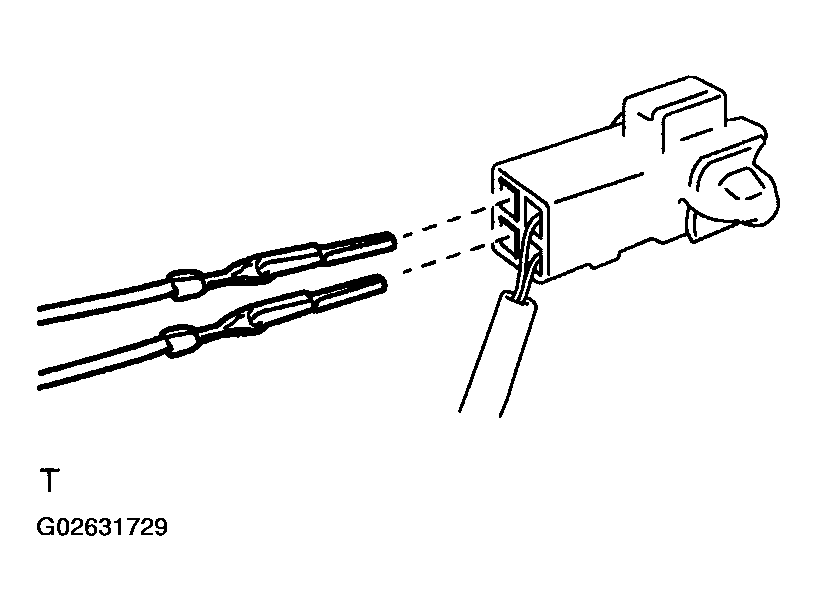

Fig 5: Connecting Terminals To Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT POSITION SENSOR
Install the shift position sensor with the 3 bolts.

HINT:

Move the shift lever into the S position as shown in the illustration, and then install the shift position sensor.

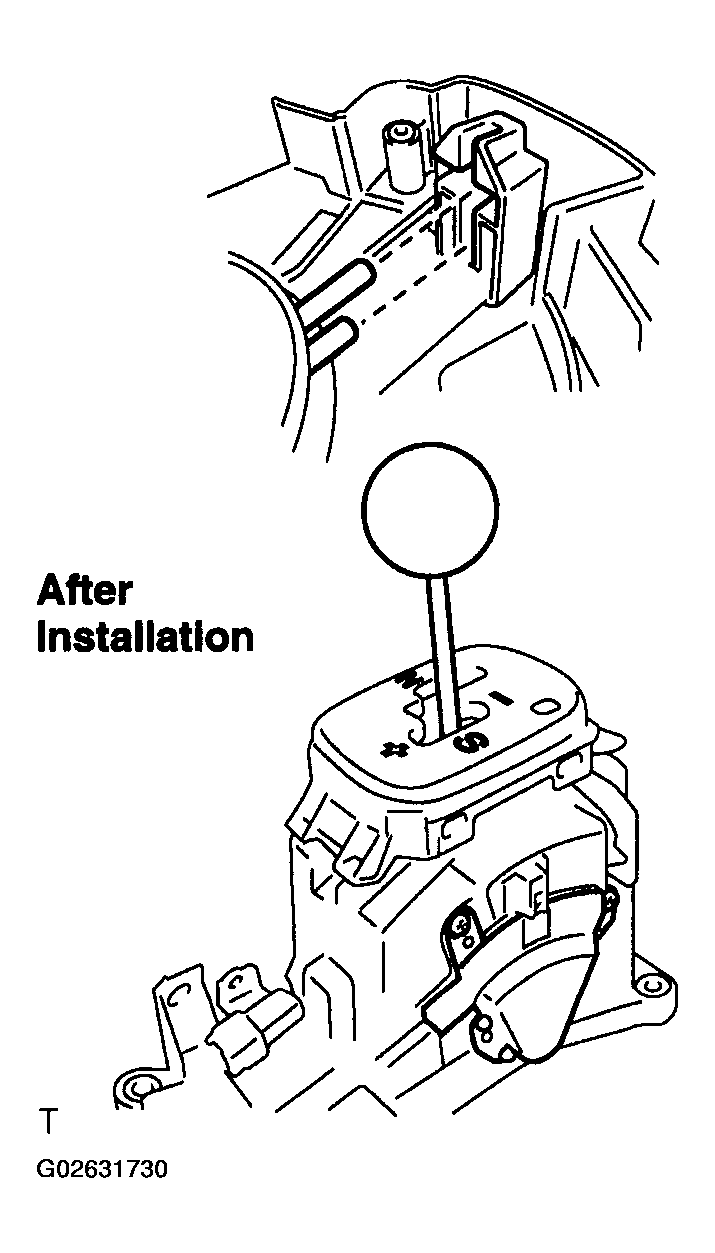

Fig 6: Installing Shift Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

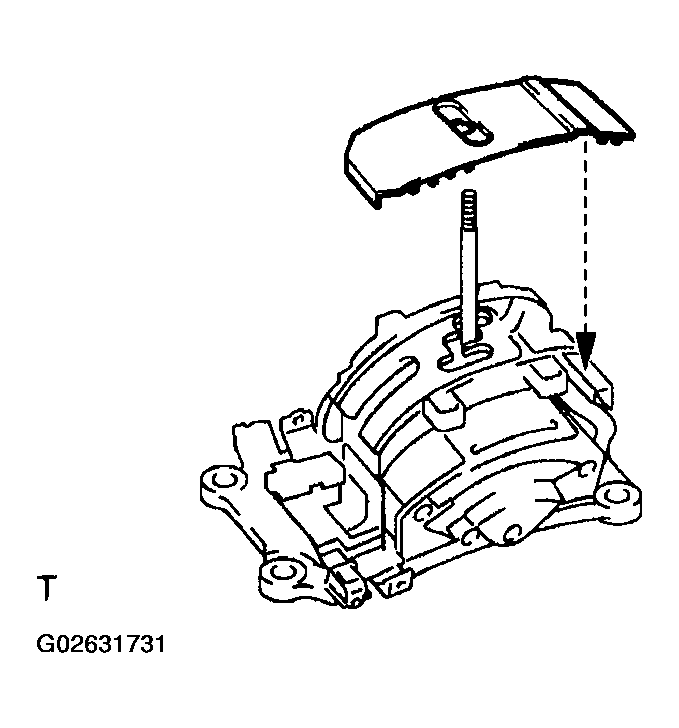

INSTALL SLIDE COVER
HINT:

Since the slide cover has a characteristic of direction-oriented, be sure to install it as shown in the illustration.
INSTALL SHIFT LEVER HOUSING
