Shift Lever: Components

WARNING: This page is about a different variant/trim than selected.

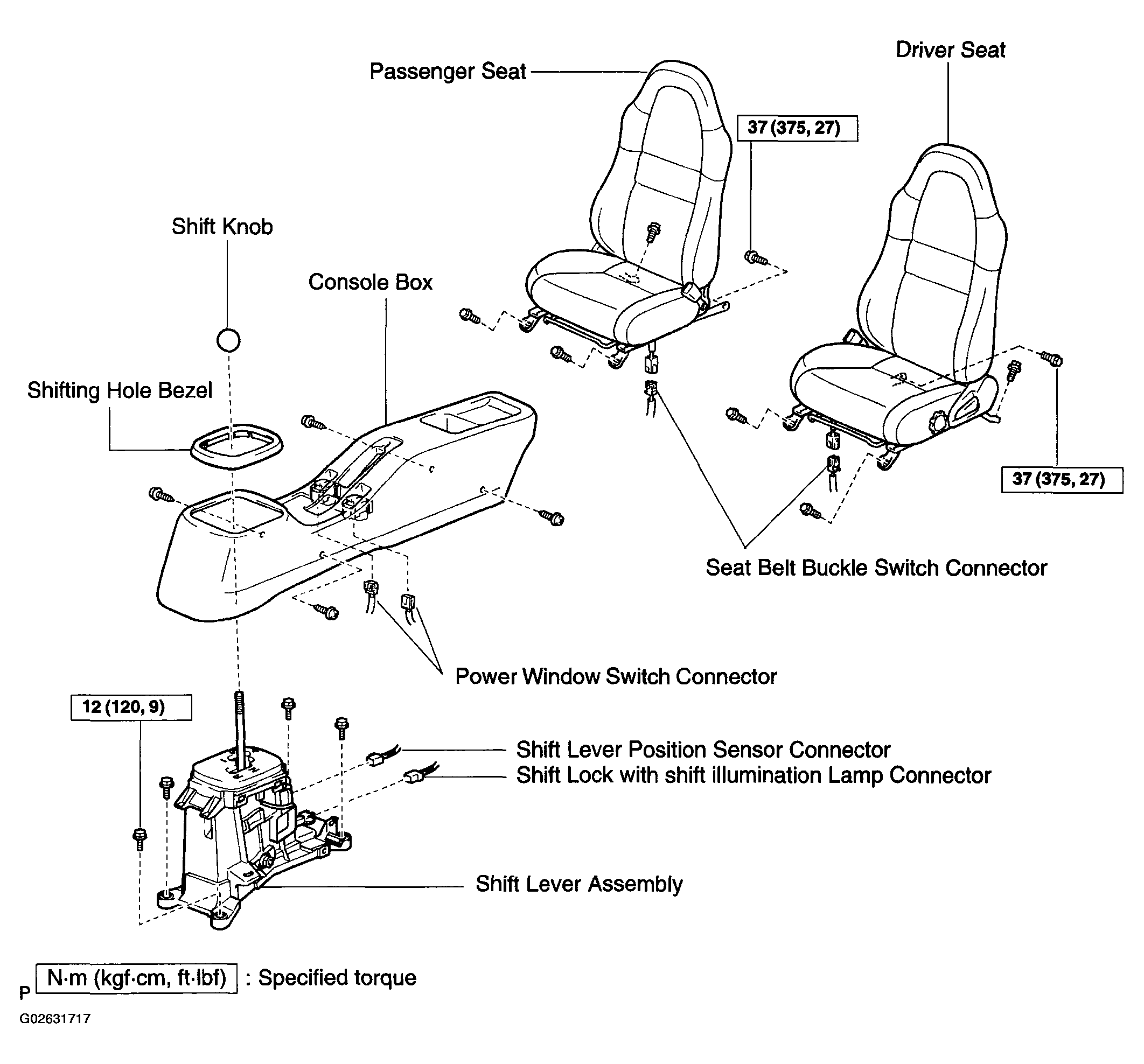

Fig 1: Identifying Shift Lever Components (1 Of 2)
G02631717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

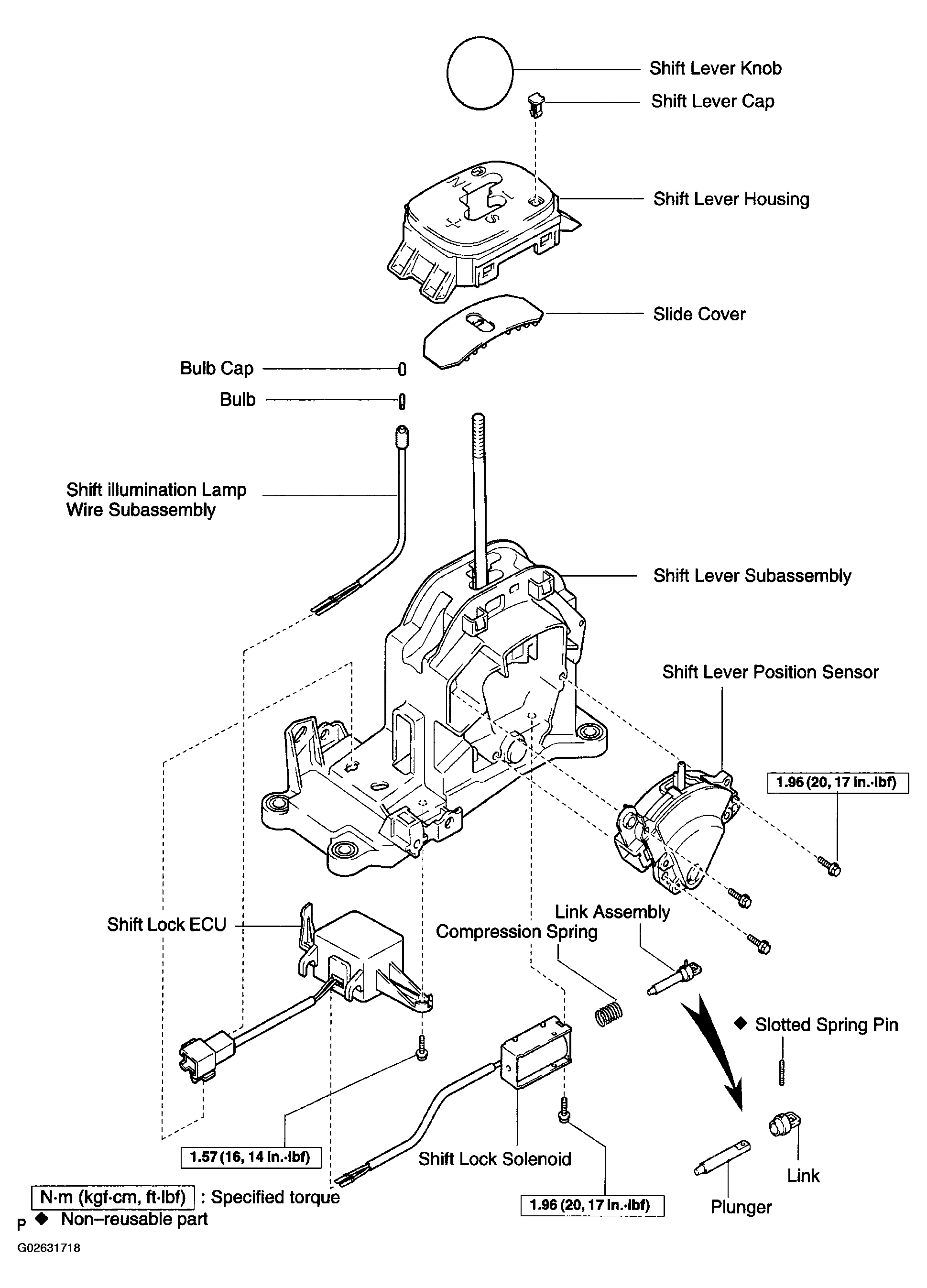

Fig 2: Identifying Shift Lever Components (2 Of 2)
G02631718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
