Hydraulic Power Unit: Replacement

WARNING: This page is about a different variant/trim than selected.

REPLACE SUB-WIRE
1. Using small screwdrivers, pry out the terminal retainer.
2. Cut off the clamp which is attached to the sub-wire.

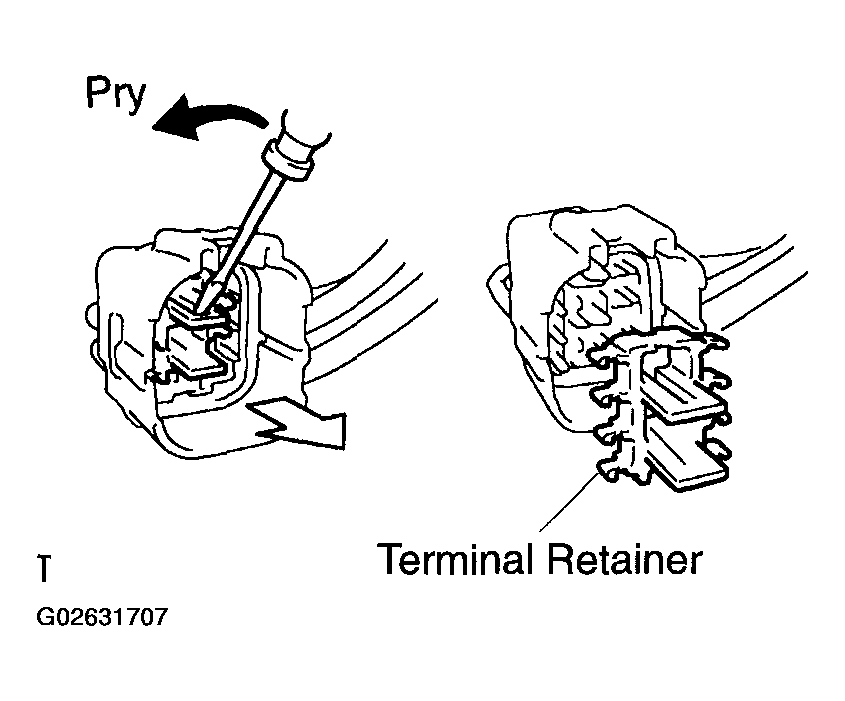

  Fig 1: Prying Out Terminal Retainer Using A Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Place markings on each terminal before removing the terminals.

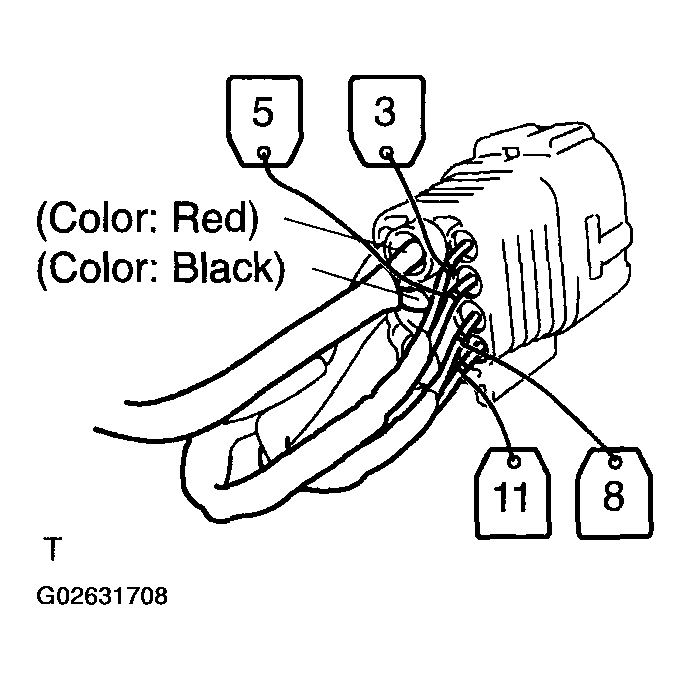

  Fig 2: Placing Markings On Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Release the locking lug of the 6 terminals when pulling the 6 terminals out from the rearward.
  NOTE: Pull the 6 terminals one by one with much care.
4. Disconnect the sub-wire connector from the accumulator pressure sensor.
5. Connect the sub-wire connector to the accumulator pressure sensor.
6. Connect the 6 terminals to the sub-wire connector.
7. Install the terminal retainer.
8. Attach the clamp to the sub-wire.

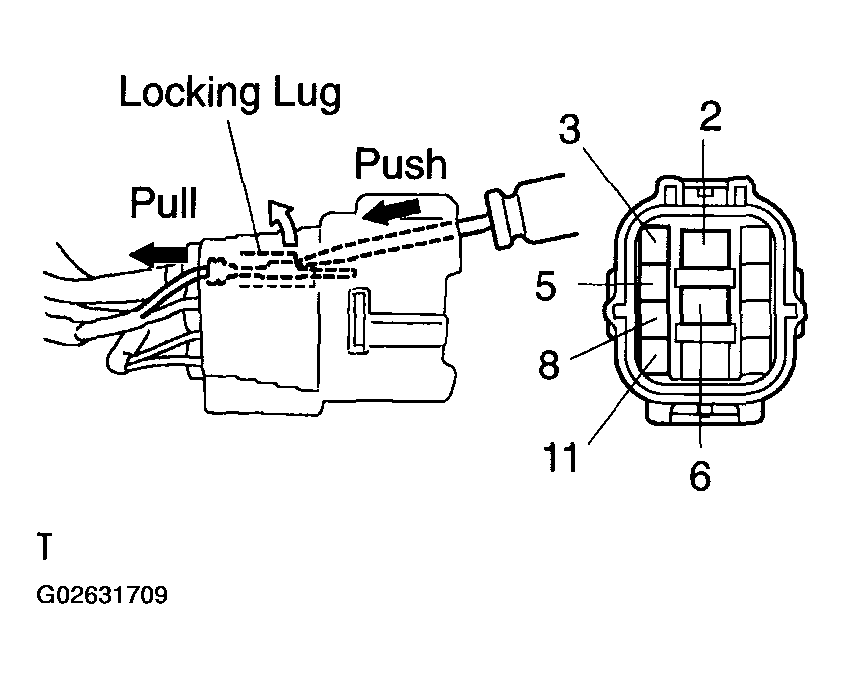

Fig 3: Releasing Locking Lug To Remove Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE RUBBERS
1. Remove the 3 rubbers and 3 spacer tubes from the HPU bracket.
2. Apply water to 3 new rubbers.
3. Install the 3 rubbers and 3 spacer tubes to the HPU bracket.

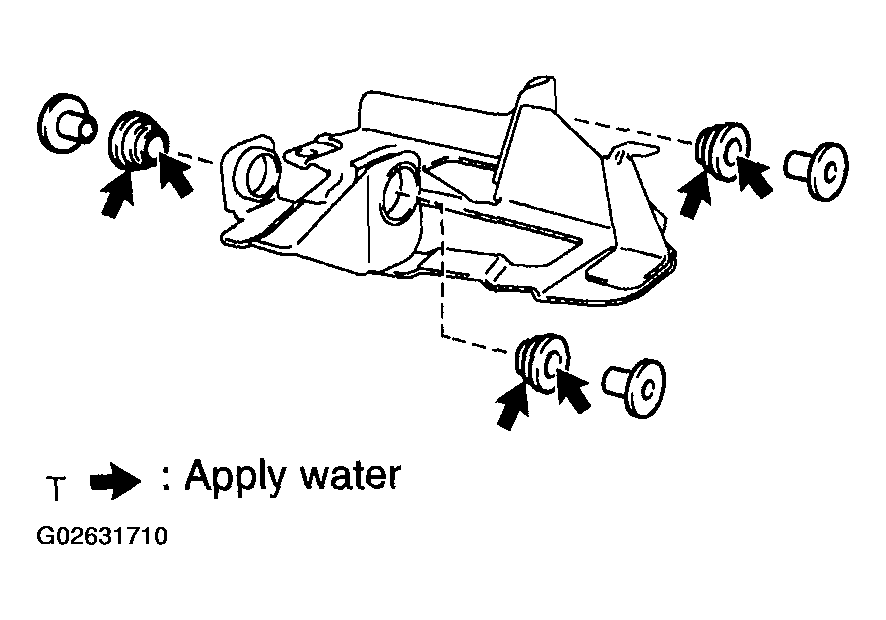

Fig 4: Applying Water To Rubbers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
