Diagnostic Trouble Code Chart
WARNING: This page is about a different variant/trim than selected.
DTC INDEX
| DTC | Description |
|---|---|
| DTC P0562 | System Voltage Low |
| DTC P0703 | Brake Switch "B" Circuit |
| DTC P0715 | Input/Turbine Speed Sensor "A" Circuit |
| DTC P0725 | Engine Speed Input Circuit |
| DTC P0807, P0808 | Clutch Position Sensor Circuit Low/High |
| DTC P0810 | Clutch Position Control Error |
| DTC P0812 | Reverse Input Circuit |
| DTC P0820 | Gear Lever X-Y Position Sensor Circuit |
| DTC P0847, P0848 | Transmission Fluid Pressure Sensor/Switch "B" Circuit Low/High |
| DTC P0850 | Park/Neutral Switch Input Circuit |
| DTC P0863 | CAN Communication Circuit |
| DTC P0896 | Shift Time Too Long |
| DTC P0900 | Clutch Actuator Circuit/Open |
| DTC P0905 | Gate Select Position Circuit Range/Performance |
| DTC P0906, P0907 | Gate Select Position Circuit Low/High |
| DTC P0910 | Gate Select Actuator Circuit/Open |
| DTC P0915 | Gear Shift Position Circuit Range/Performance |
| DTC P0916, P0917 | Gear Shift Position Circuit Low/High |
| DTC P0919 | Gear Shift Position Control Error |
| DTC P0920 | Gear Shift Forward Actuator Circuit/Open |
| DTC P0934, P0935 | Hydraulic Pressure Sensor Circuit Low/High Input |
| DTC P0942 | Hydraulic Pressure Unit |
| DTC P0945 | Hydraulic Pump Relay Circuit / Open |
| DTC P1735, P1740, P1839, P1844 | Front/Rear Right/Left Speed Sensor Malfunction |
| DTC P2530 | Ignition Switch Run Position Circuit |
| DTC P2716 | Pressure Control Solenoid "D" Electrical |
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table below.
NOTE:

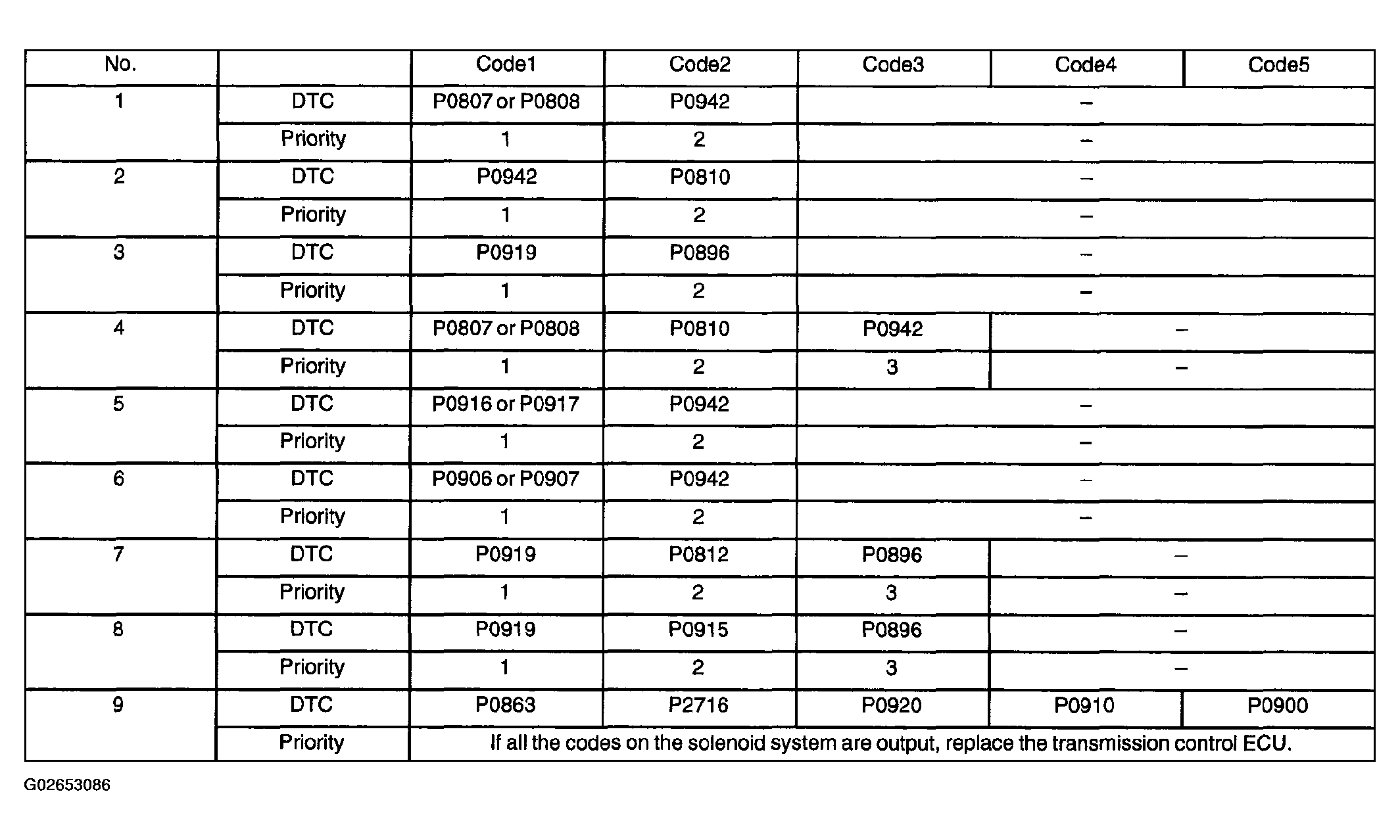

- When DTCs are simultaneously output in the following combinations, obey the inspection priority shown in the table below.

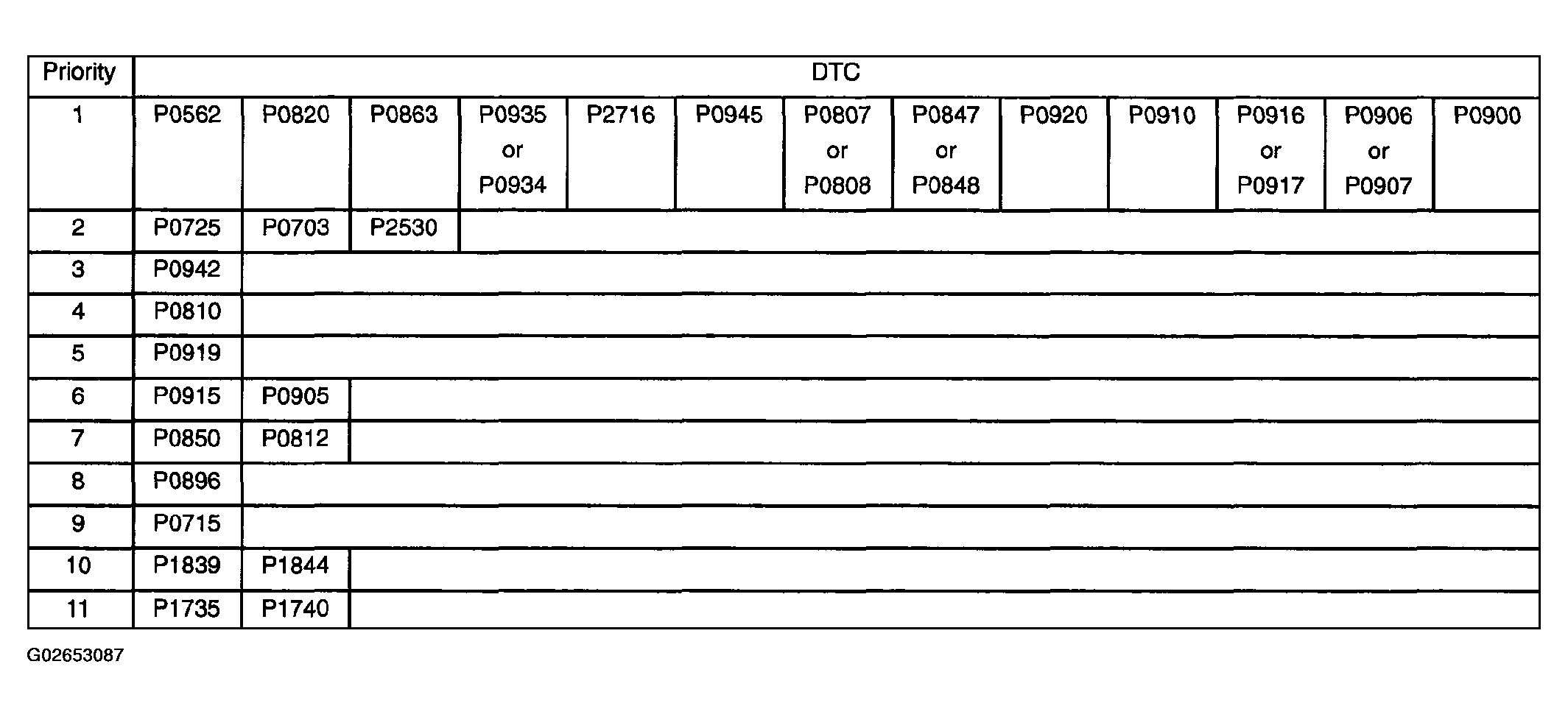

- When DTCs are simultaneously output in other combinations than ones shown above, obey the inspection priority shown in the table below.
If output DTCs have the same priority, the inspection order is not compulsory.
