DTC P2120: Throttle/Pedal Position Sensor/Switch "D" Circuit*
>>
Wiring Diagram
DTC P2120: Throttle/Pedal Position Sensor/Switch "D" Circuit*: Wiring Diagram

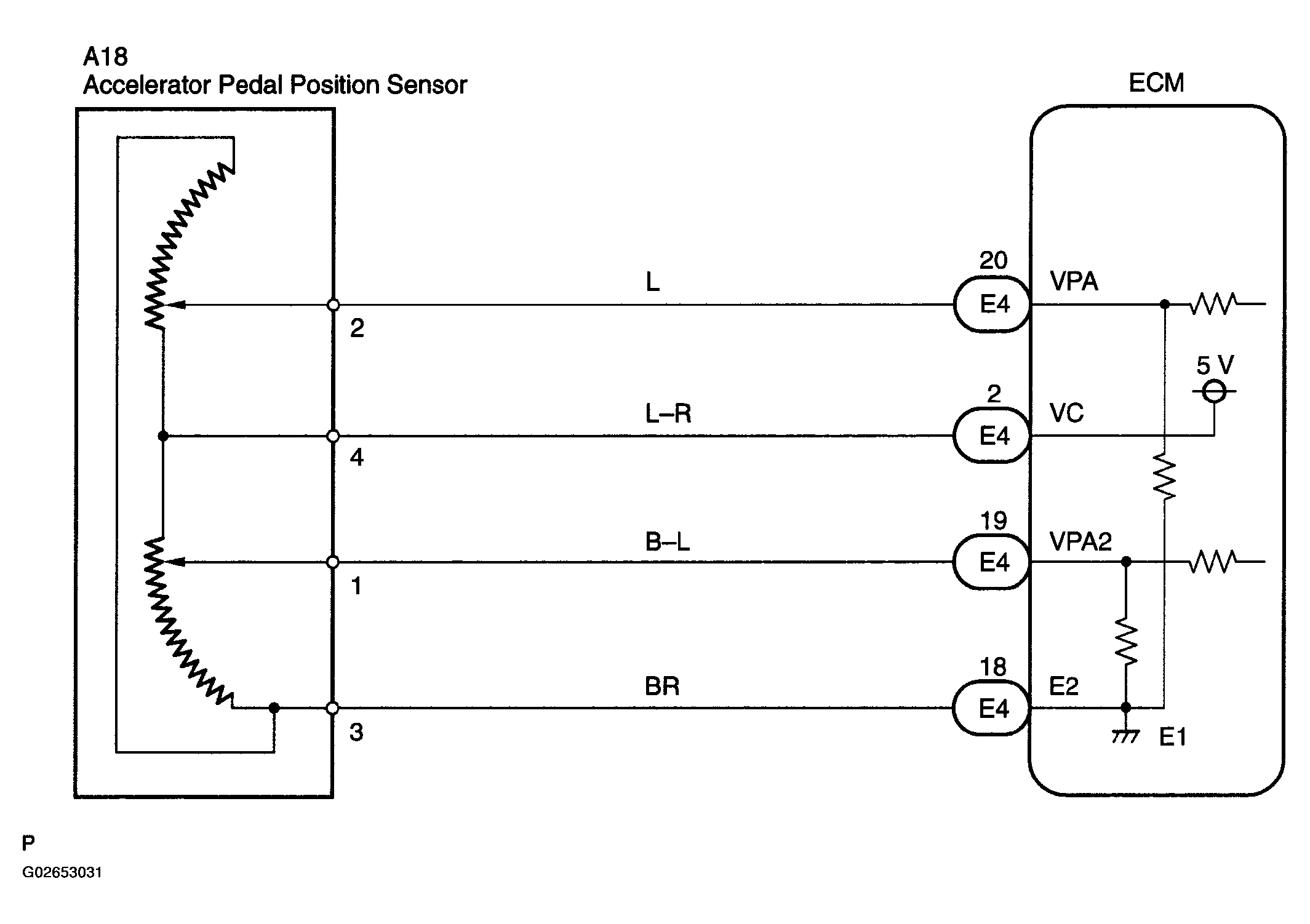

Fig 1: Wiring Diagram - Throttle/Pedal Position Sensor/Switch "D" Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
