Circuit Description

The transmission control ECU communicates whether its operation is normal or not to the ECM.

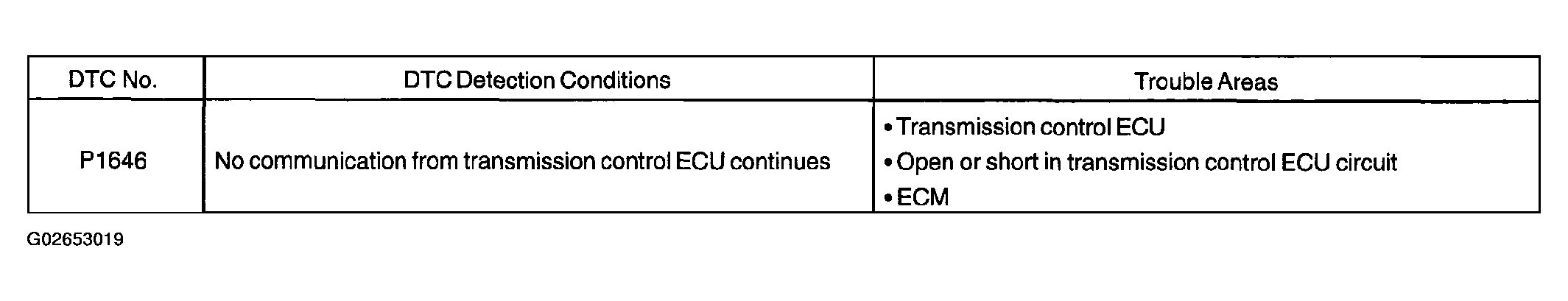

Fig 1: DTC Chart

G02653019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
