Circuit Description

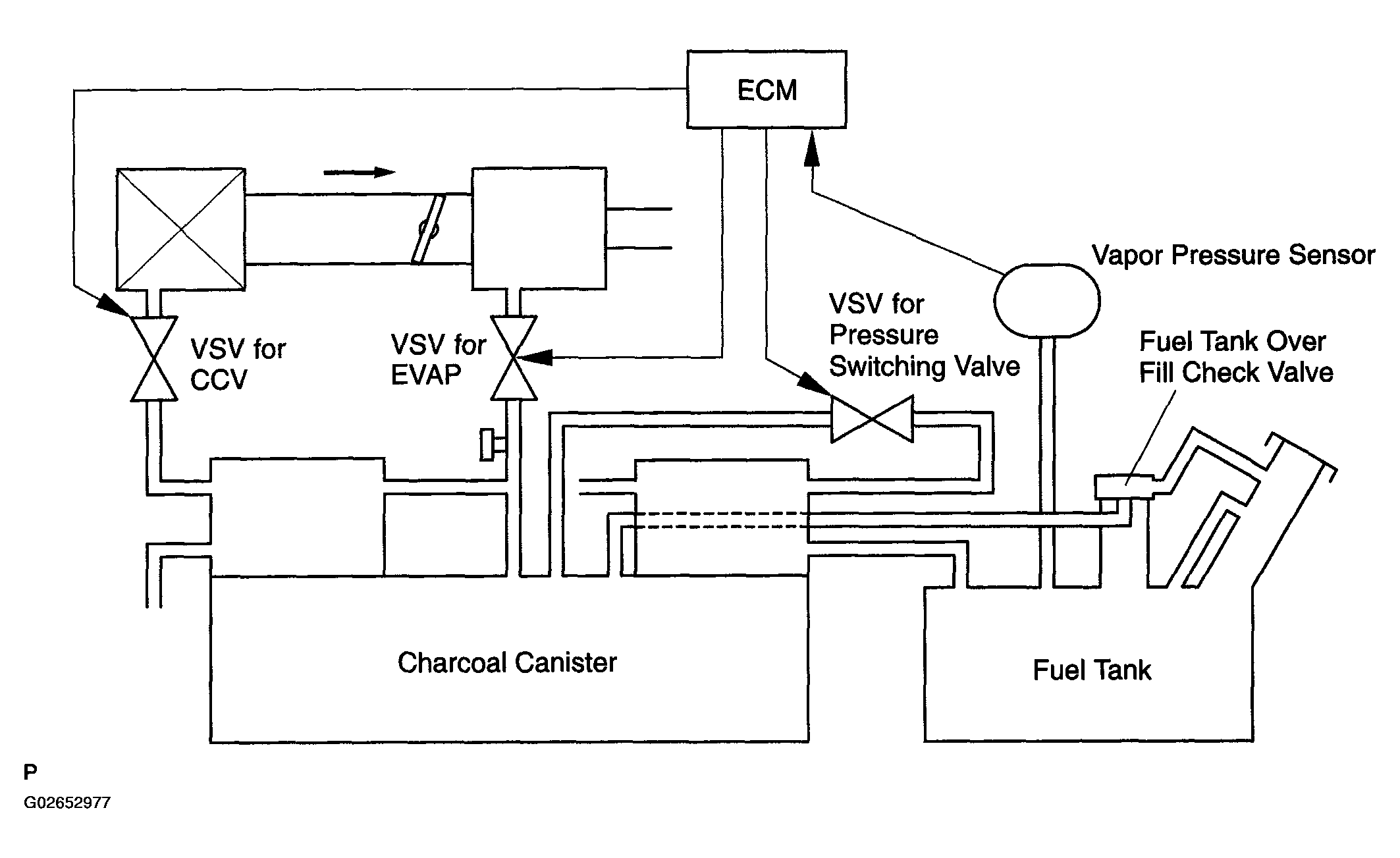

The vapor pressure sensor, VSV for canister closed valve (CCV) and VSV for pressure switching valve are used to detect abnormalities in the evaporative emission control system.

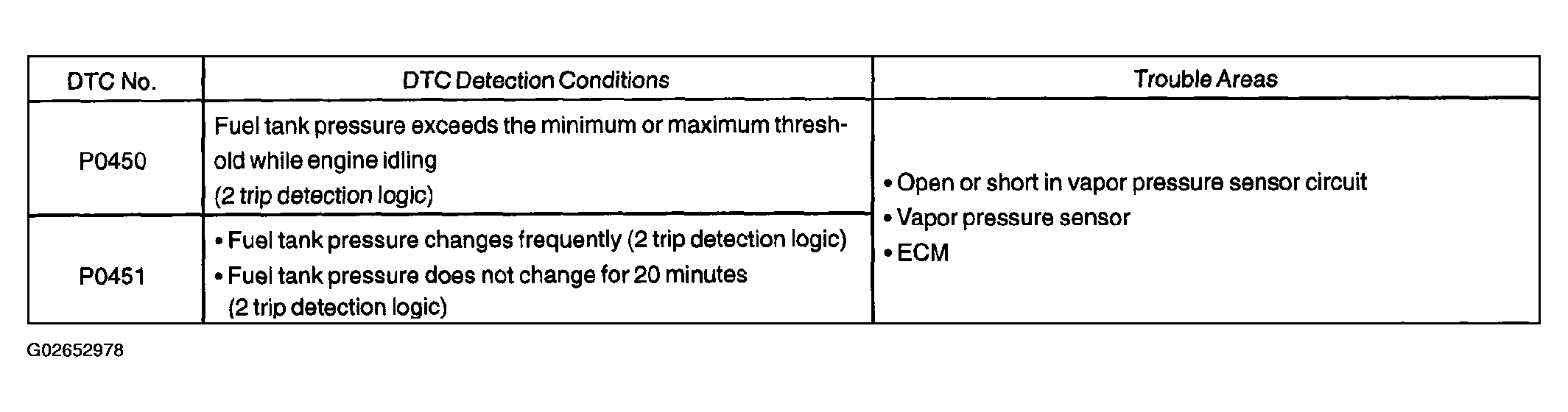

The ECM determines whether there are any abnormalities in the evaporative emission control system based on the vapor pressure sensor signal.
