DTC P0110: Intake Air Temperature Circuit: Wiring Diagram

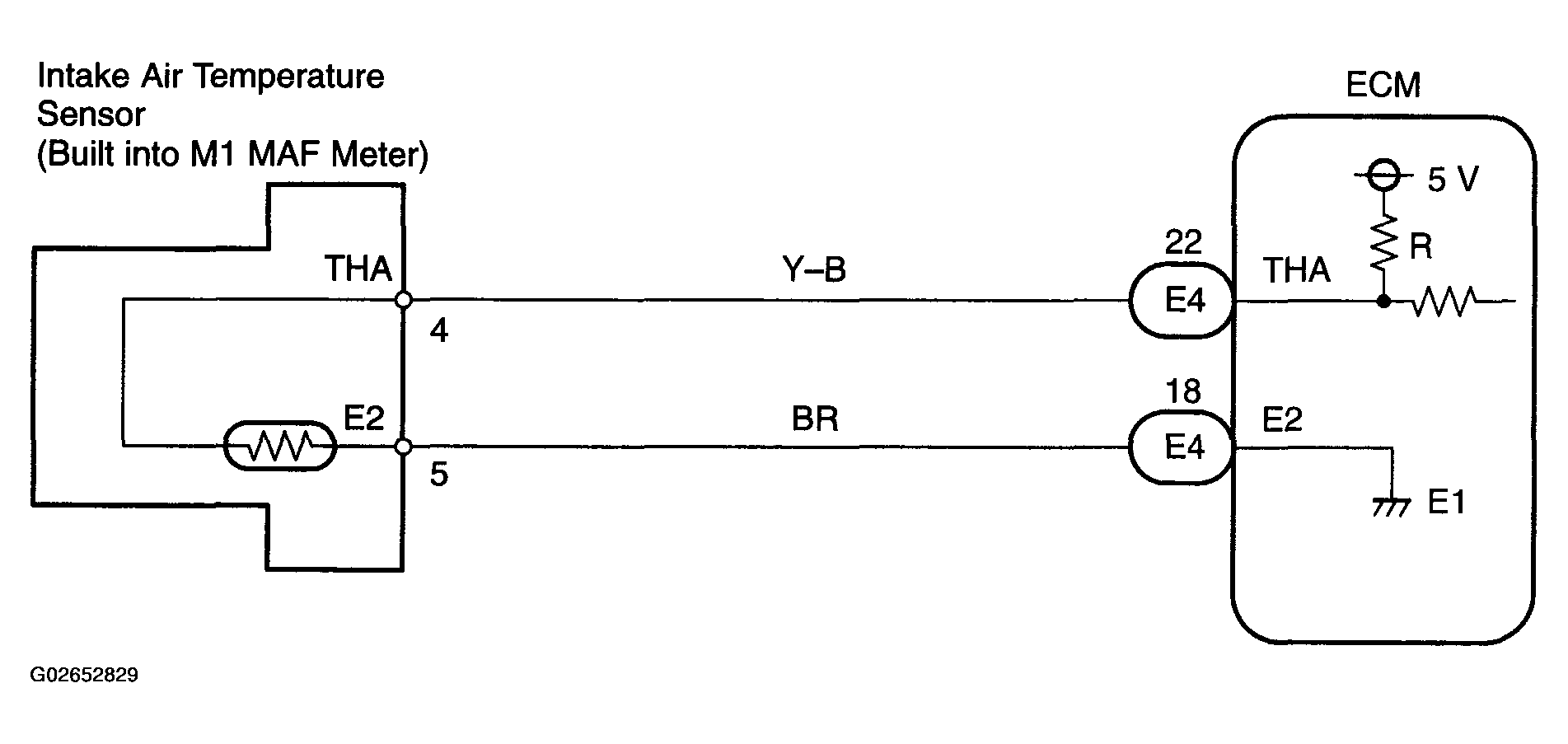

Fig 1: Wiring Diagram - Intake Air Temperature Circuit

G02652829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
