Circuit Description

Refer to DTC P0100 in DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT  .

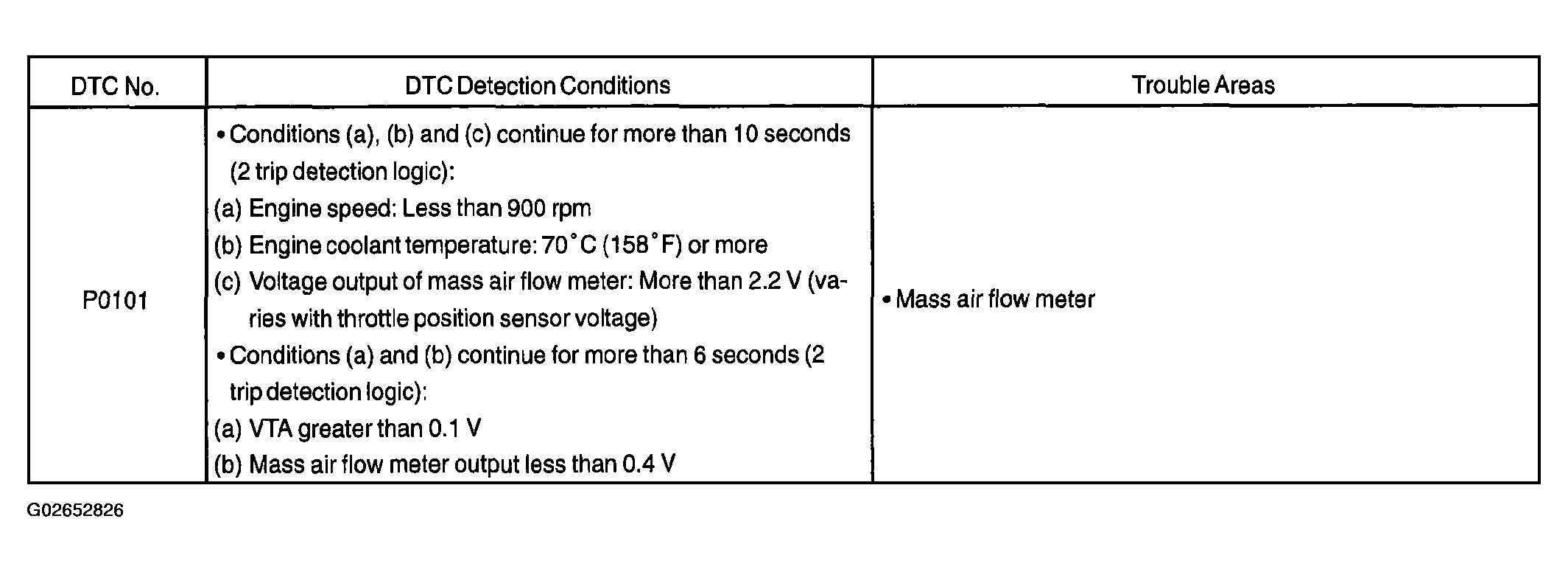

Fig 1: DTC Chart
G02652826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
