Oil Pump: Removal

  1. DRAIN ENGINE OIL
  2. REMOVE TIMING CHAIN AND CRANKSHAFT TIMING SPROCKET (See  REMOVAL  )
  3. REMOVE OIL PUMP

    Remove the 5 bolts, oil pump and gasket.

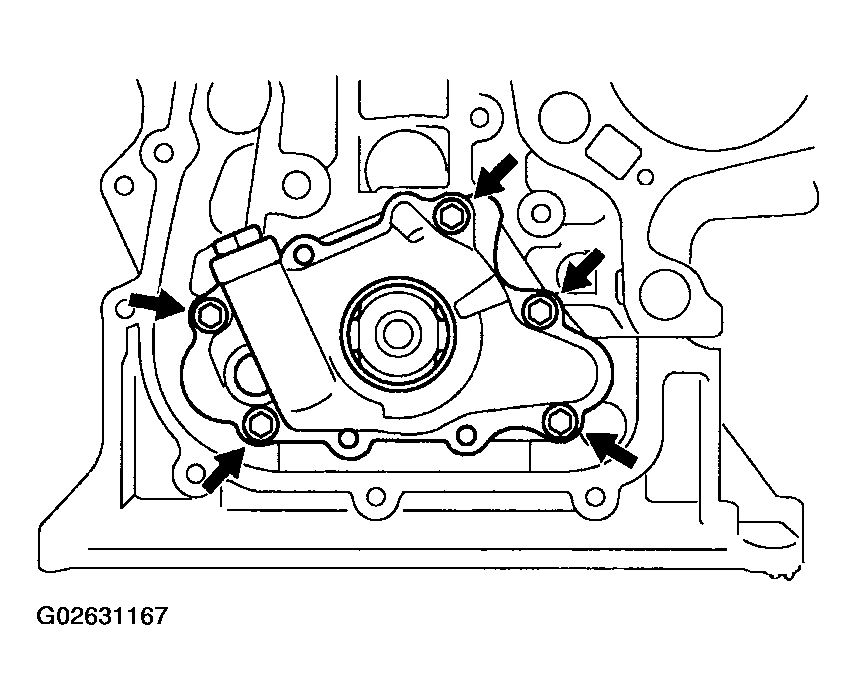

    Fig 1: Removing Oil Pump
    G02631167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
