Engine Cooling System: Radiator: Installation

  1. INSTALL ELECTRIC COOLING FAN TO RADIATOR

    Install the electric cooling fan with the 2 bolts.

    Torque: 5 N.m (51 kgf.cm, 44 in.lbf)

  2. INSTALL RADIATOR ASSEMBLY
    1. Install the 2 radiator lower support bushings.
    2. Place the radiator assembly to the body.
    3. Install the 2 radiator upper supports with the 4 bolts.

      Torque: 12.5 N.m (128 kgf.cm, 9 ft.lbf)

    4. Connect the 2 radiator hoses.
    5. Connect the 2 electric cooling fan connectors.

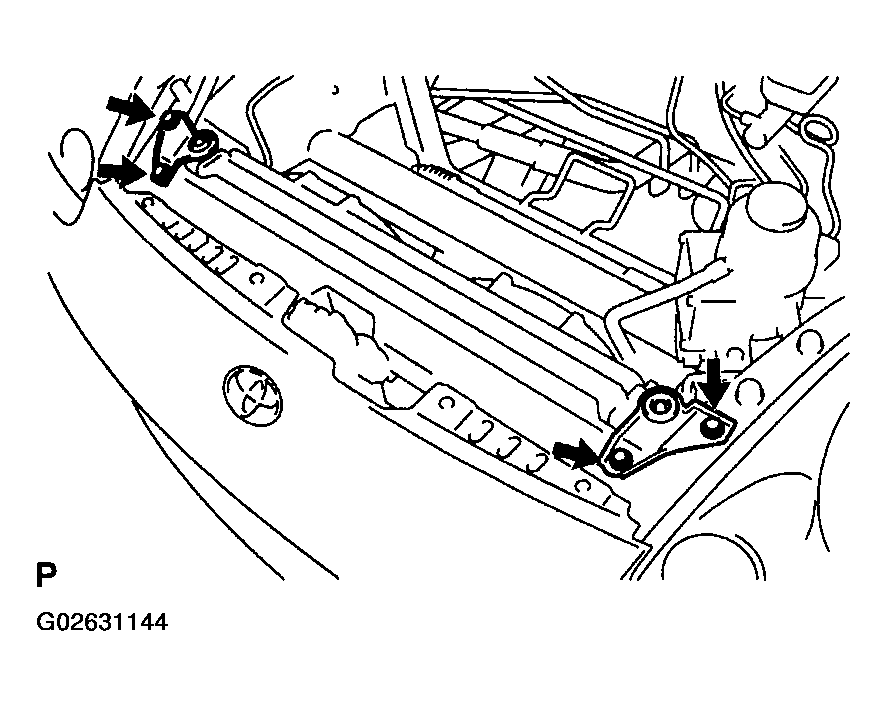

      Fig 1: Installing Radiator Assembly
      G02631144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the 2 spear wheel carrier extensions with the 2 bolts and 2 nuts.

      Torque: 8 N.m (82 kgf.cm, 70 in.lbf)

  3. FILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  4. INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER AND TOOL BOX
  5. START ENGINE AND CHECK FOR LEAK
  6. RECHECK ENGINE COOLANT LEVEL

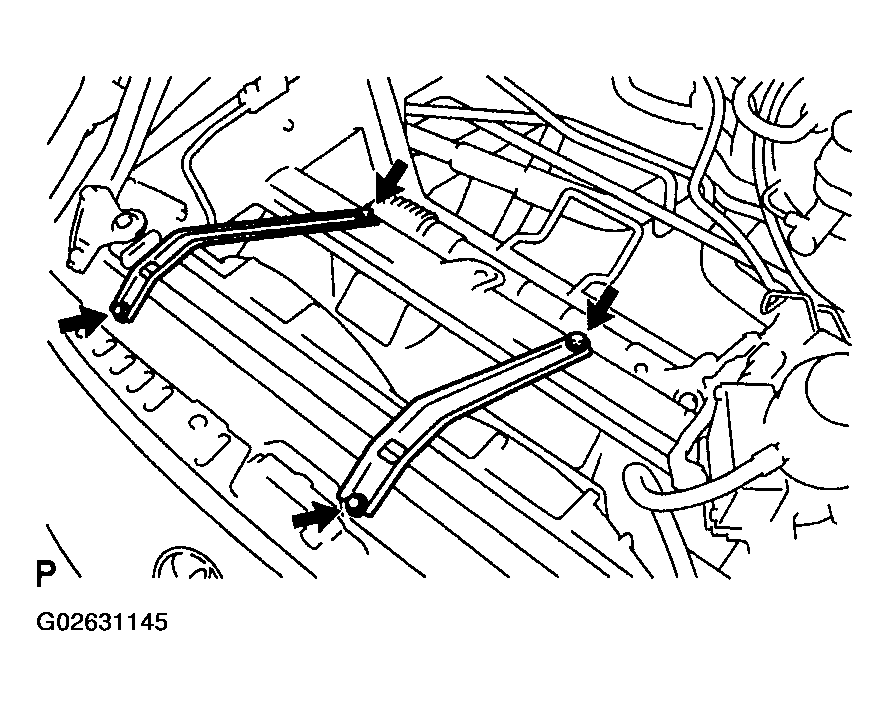

    Fig 2: Identifying Spear Wheel Carrier Extensions, Bolts And Nuts
    G02631145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
