Engine Cooling System: Radiator: Components

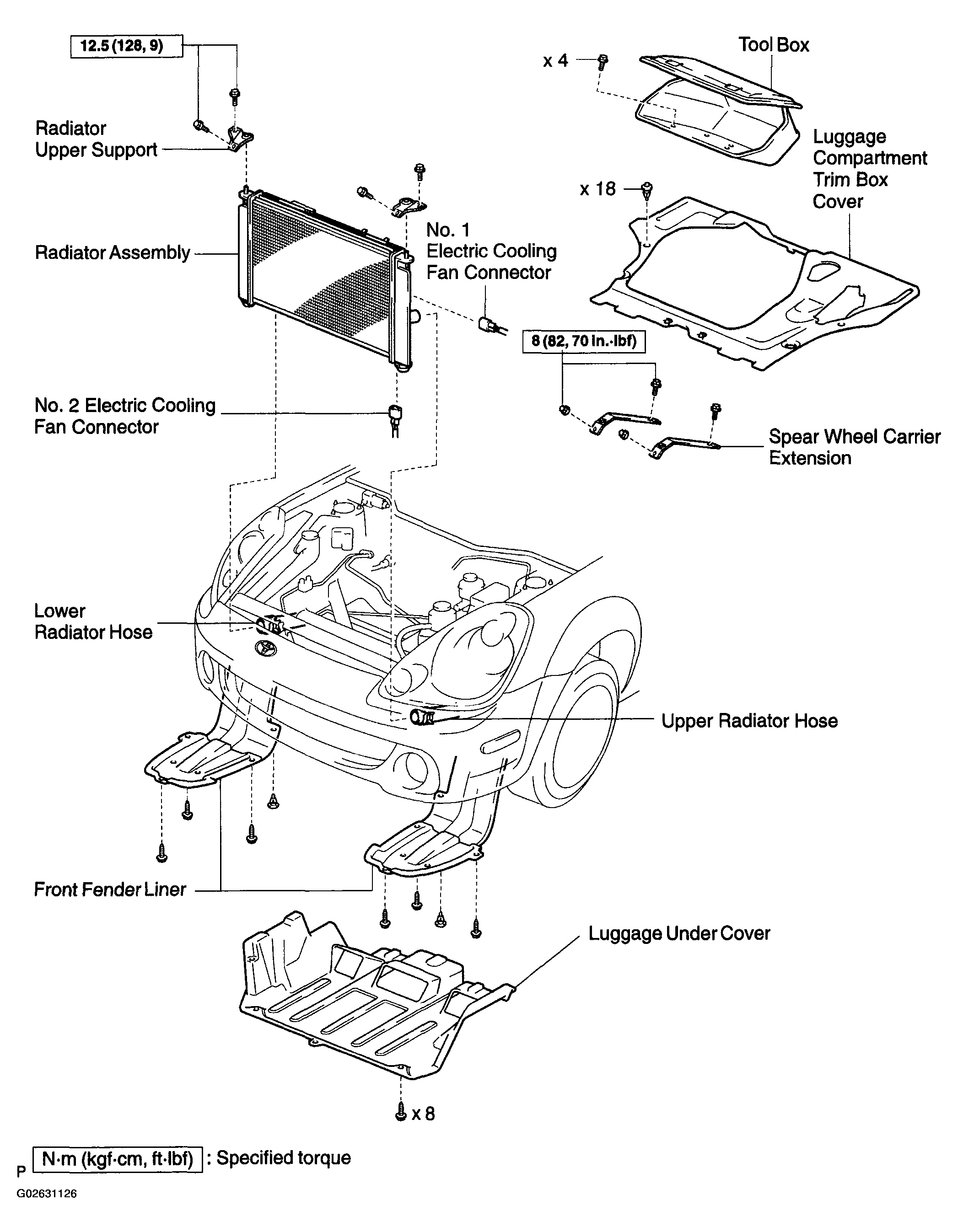

Fig 1: Identifying Radiator Components (1 Of 3)
G02631126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

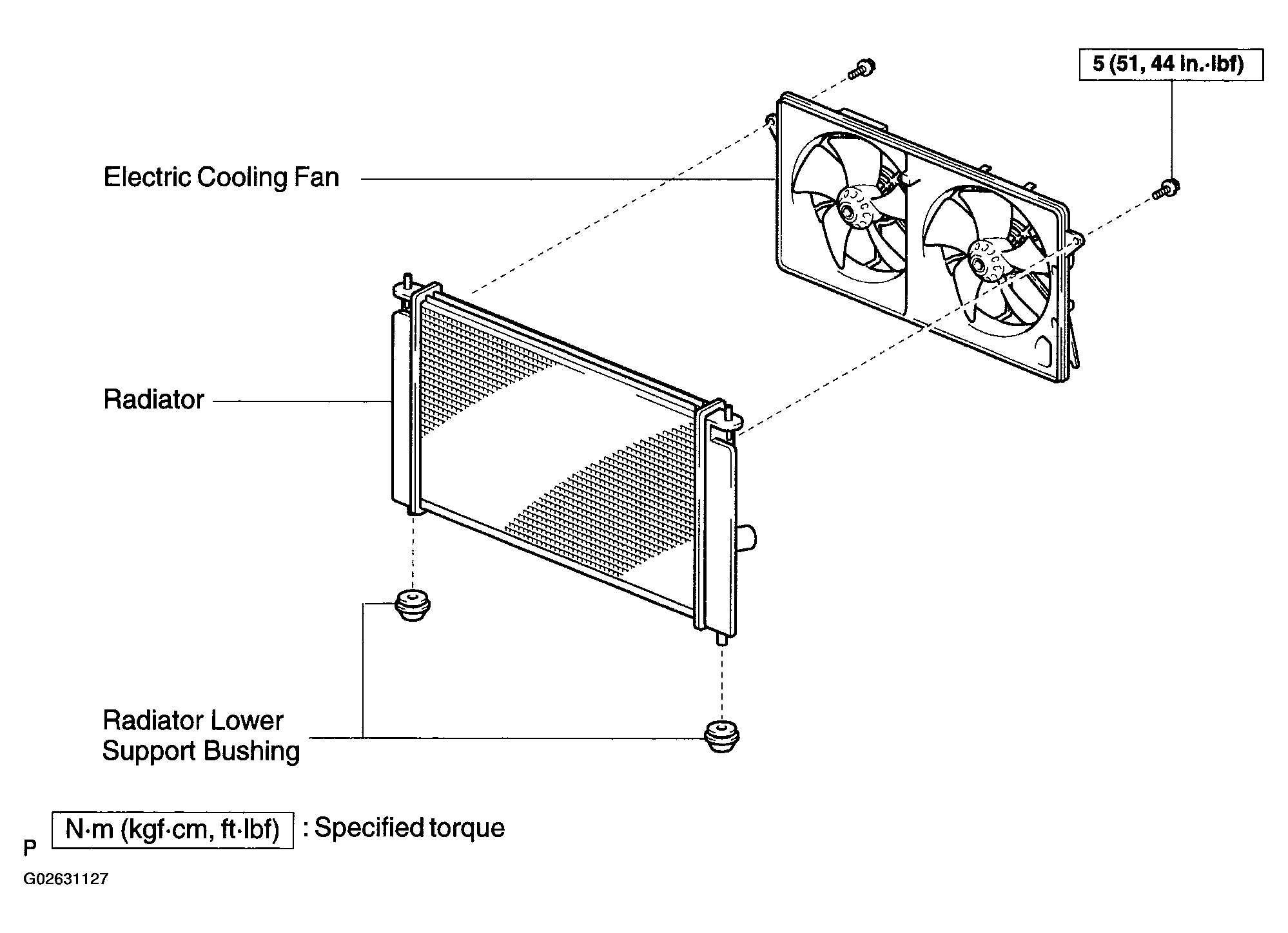

Fig 2: Identifying Radiator Components (2 Of 3)
G02631127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

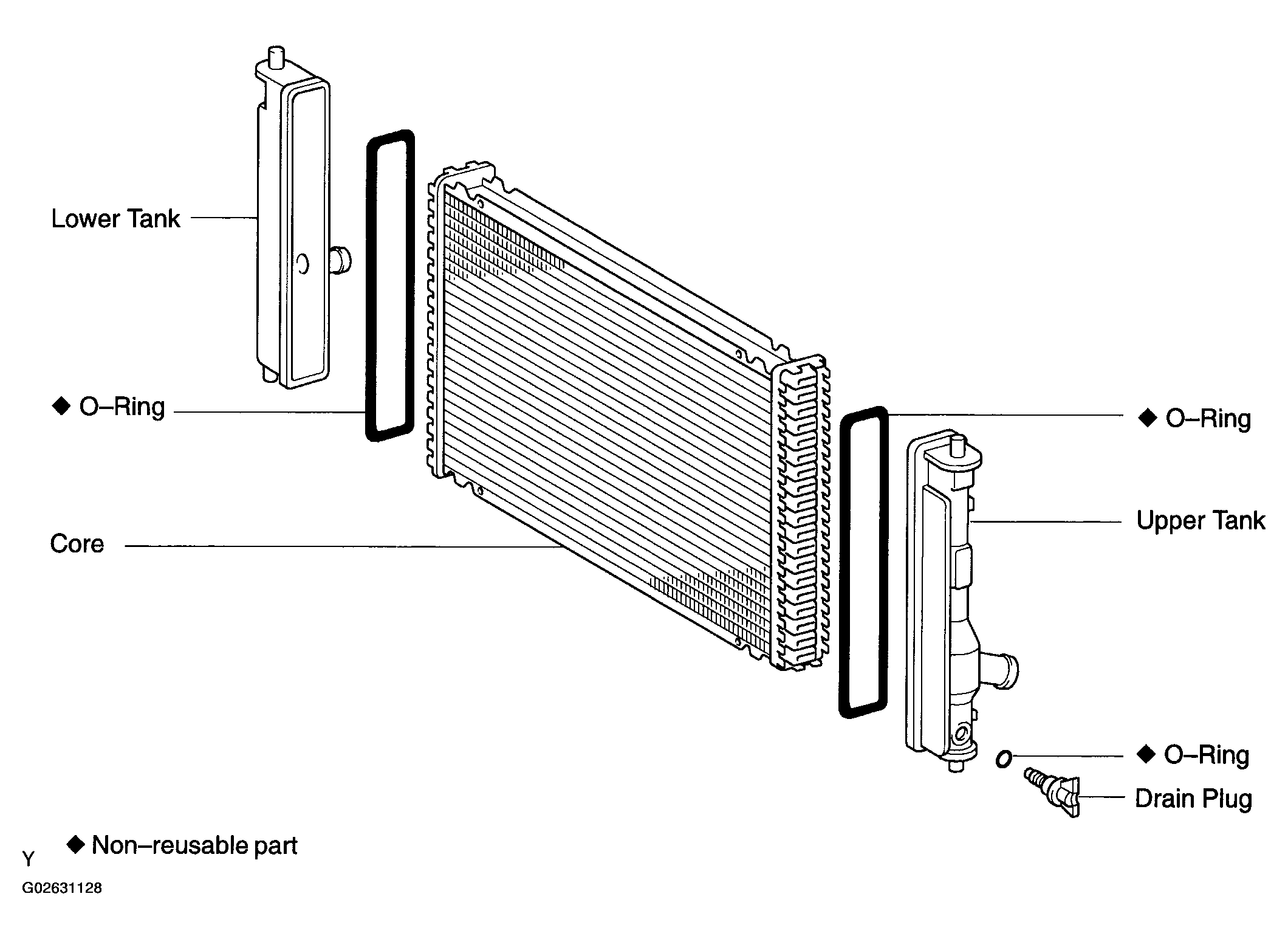

Fig 3: Identifying Radiator Components (3 Of 3)
G02631128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
