Three-Way Catalytic Converter (TWC) System: Components

Fig 1: Identifying TWC System Components (1 Of 2)
G02630946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

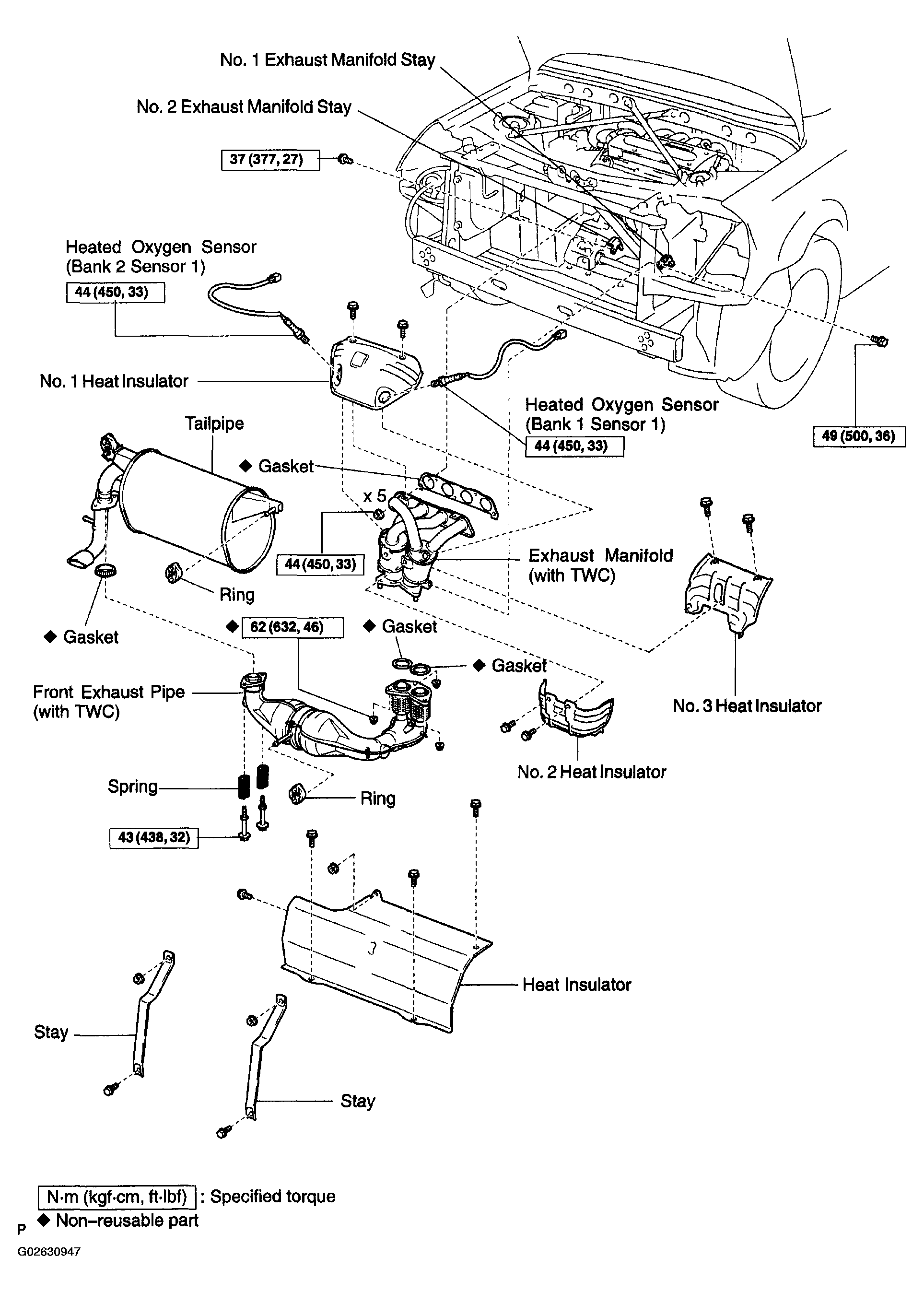

Fig 2: Identifying TWC System Components (2 Of 2)
G02630947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
