Starting System: Starter: Removal

  1. REMOVE FRONT ENGINE UNDER COVER
  2. REMOVE STARTER
    1. Disconnect the starter connector.
    2. Remove the nut, and disconnect the starter cable.

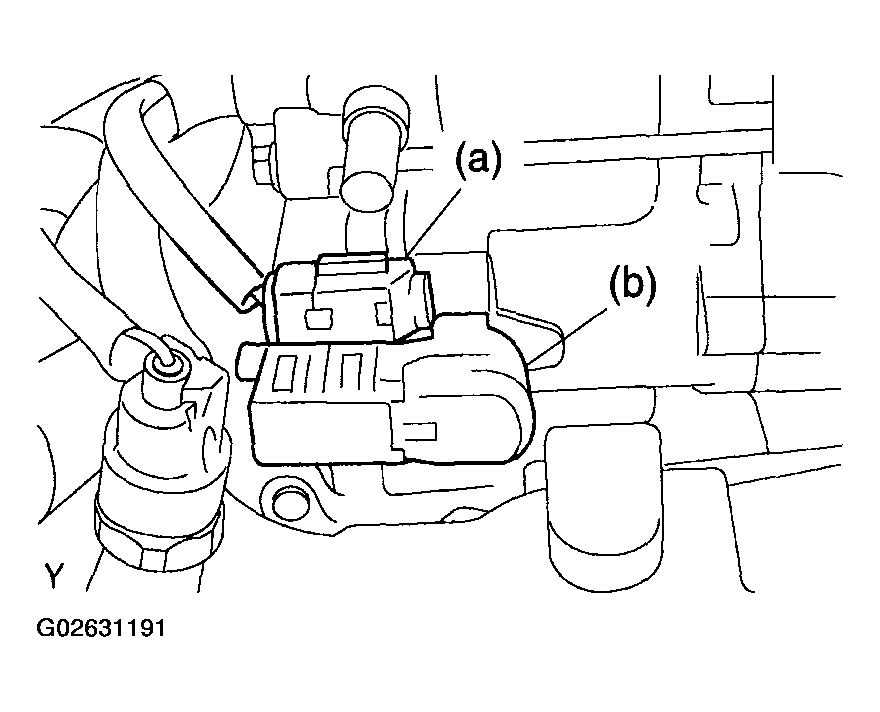

      Fig 1: Disconnecting Starter Connector And Removing Nut
      G02631191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and starter.

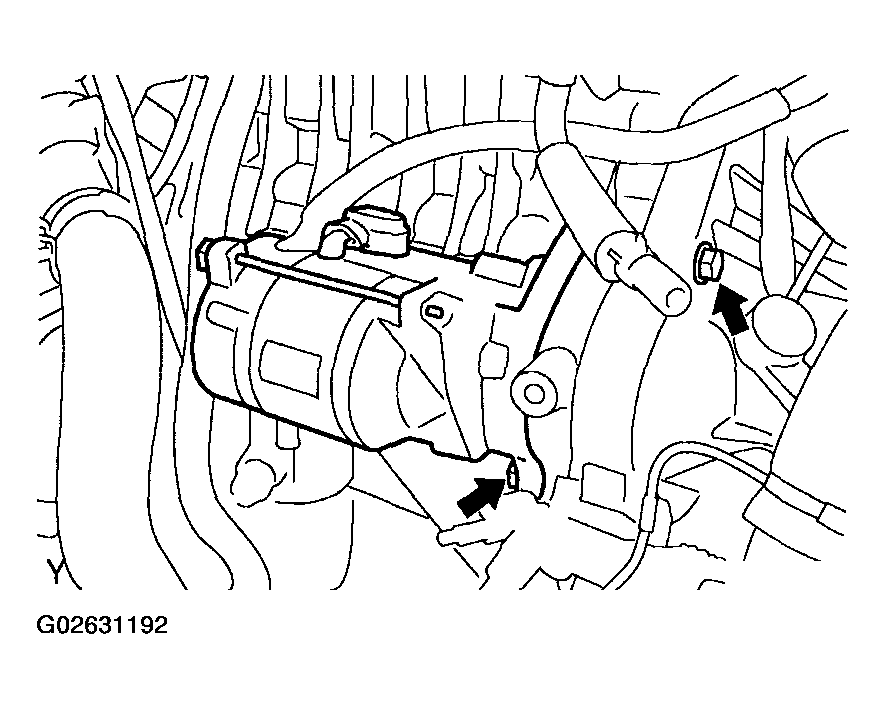

      Fig 2: Removing Bolts
      G02631192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
