Engine Room Relay Block

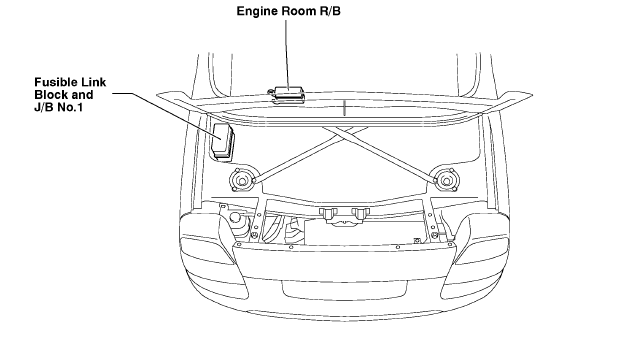

The engine room relay block is located in the engine compartment at the front. See Figure.

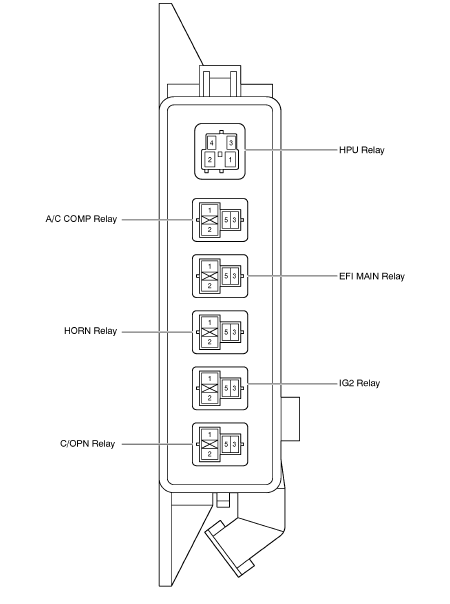

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| C/OPN Relay |
| Horn Relay |
| A/C COMP Relay |
| HPU Relay |
| EFI Main Relay |
| IG2 Relay |
