IGNITION RELAY (No.1): Inspection

REMOVE IGNITION RELAY (Marking: IG1) FROM R/B No. 3

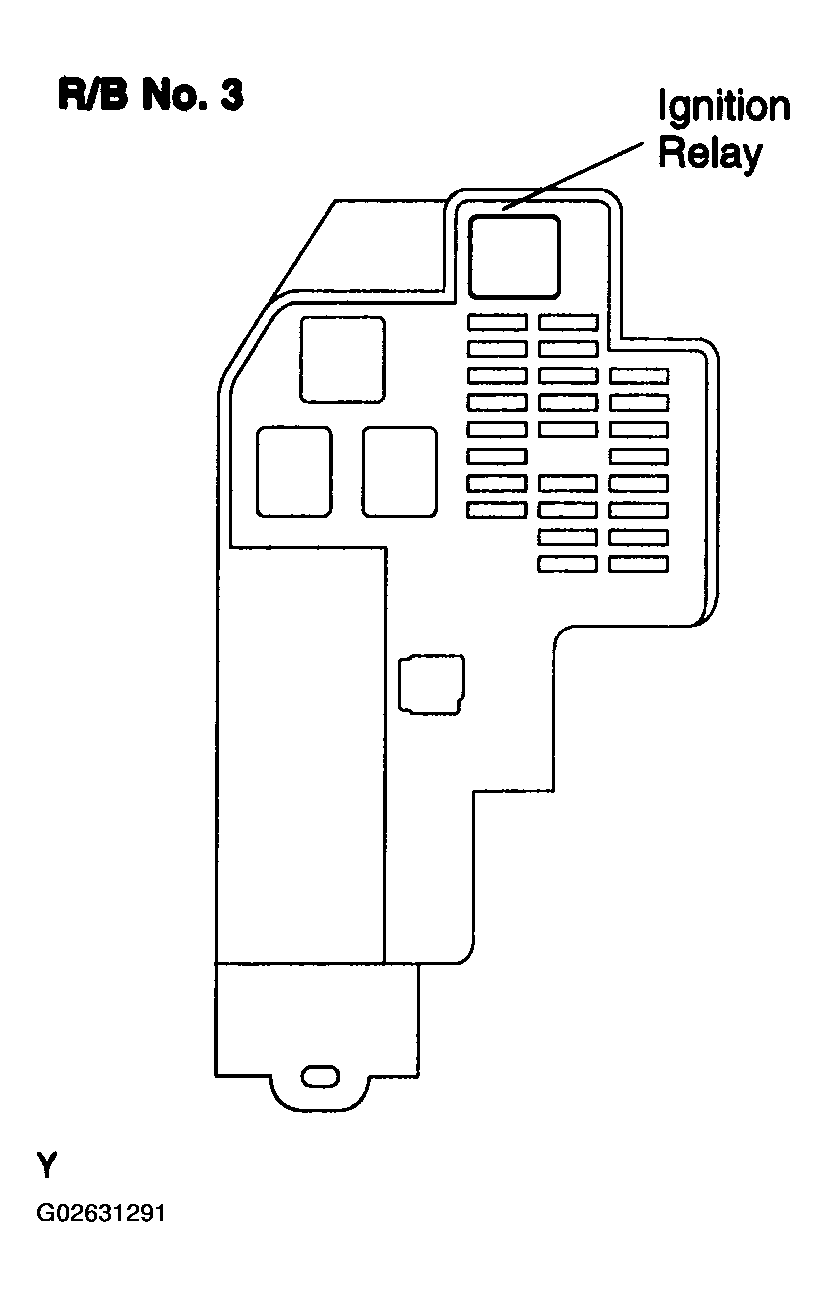

Fig 1: Identifying Ignition Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT IGNITION RELAY

Inspect the resistance.

Using an ohmmeter, measure the resistance between the terminals.

Standard:

IGNITION RELAY - RESISTANCE TABLE

Tester Connection	Specified Condition
3-5	0kΩ or higher
3-5	Below 1Ω (Apply battery voltage to terminals 1 and 2)

If the resistance is not as specified, replace the relay.

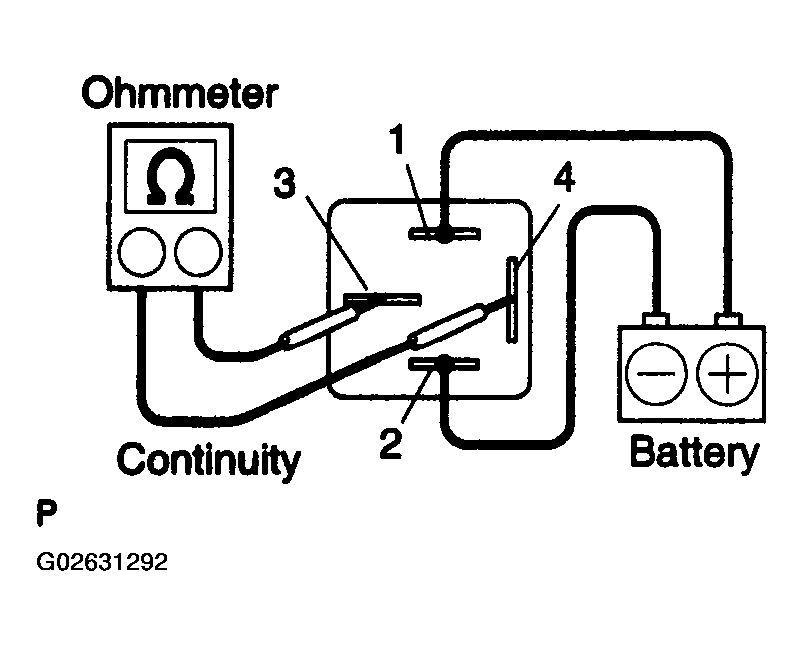

Fig 2: Measuring Resistance Between Terminals Using An Ohmmeter
