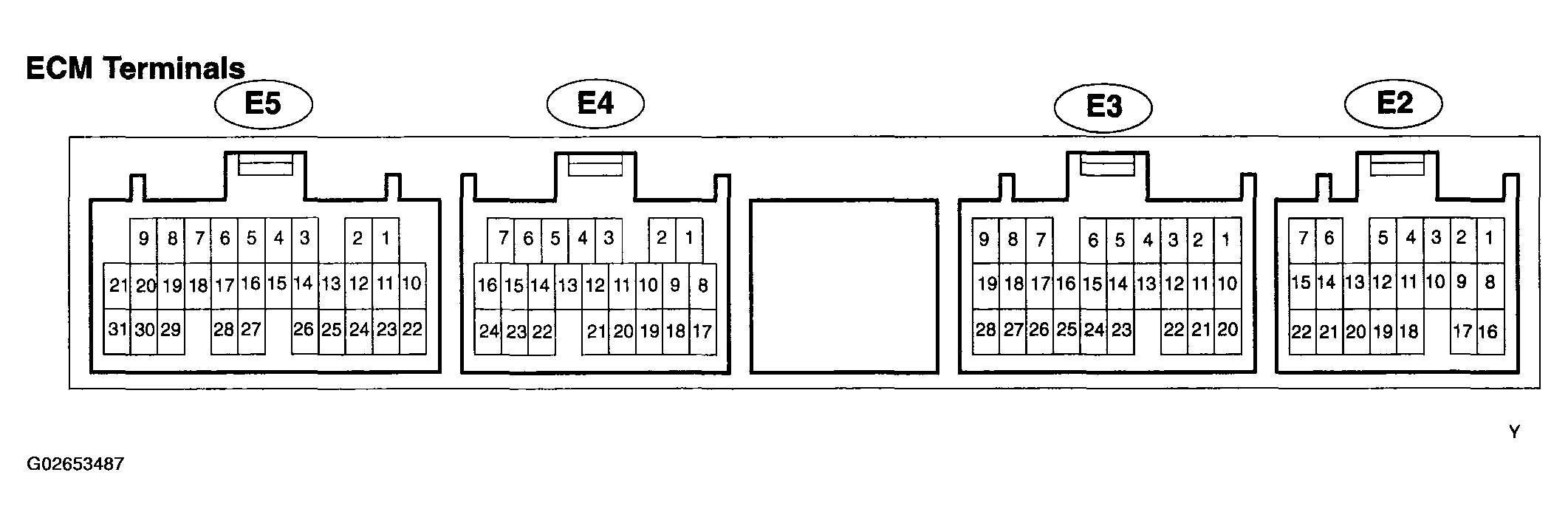

Terminals Of ECM
ECM CONNECTOR TERMINALS - SPECIFICATION TABLE
| Symbols (Terminal No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| CODE (E3-7) - E1 (E4-17) | L-Y - BR | Ignition switch ON | 9 - 14 |
| RXCK (E3-26) - E1 (E4-17) | Y - BR | Ignition switch ON | 9 - 14 |
| TXCT (E3-15) - E1 (E4-17) | L-B - BR | Ignition switch ON | 9 - 14 |
| IMLD (E2-2) - E1 (E4-17) | W-G - BR | Engine immobilizer system setting | 9 - 14 |
