Inspection Procedure

PREPARATION:

1. Remove the ECM but do not disconnect the connectors.
2. Turn the ignition switch ON.

CHECK:

Measure the voltage between terminal PI of the ECM connector and the body ground when the main switch is ON and OFF.

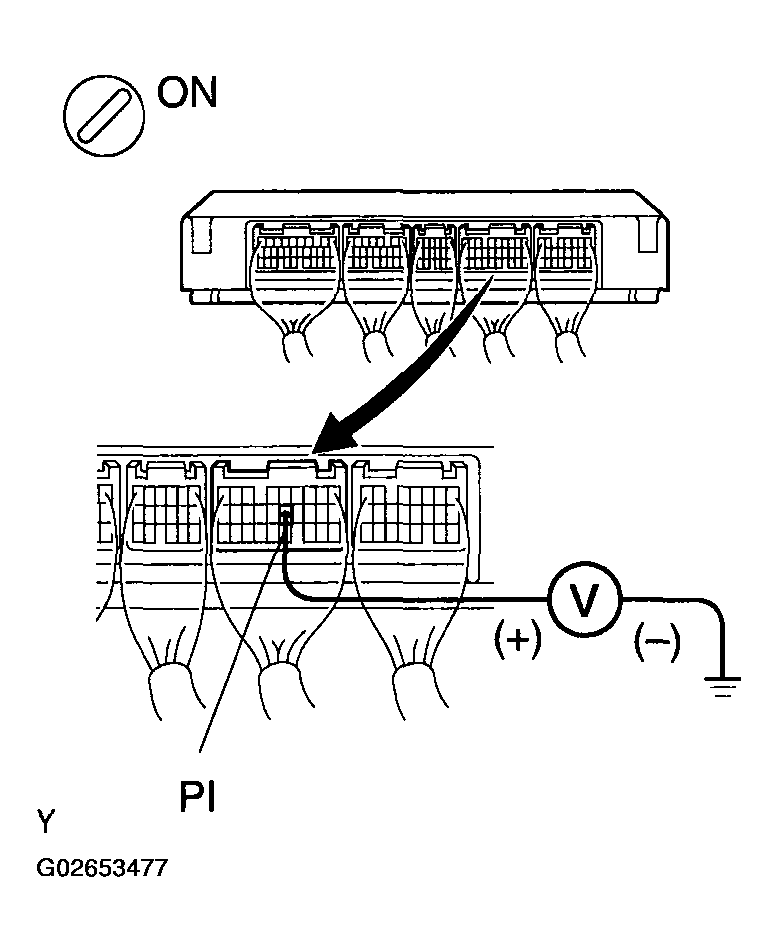

Fig 1: Measuring Voltage Between Terminal PI OF ECM Connector And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

• OK: Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE   ).
• NG: Go to next step.

• NG: Replace combination meter.
• OK: Check and replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
