Power Window Control Switch Circuit: Wiring Diagram

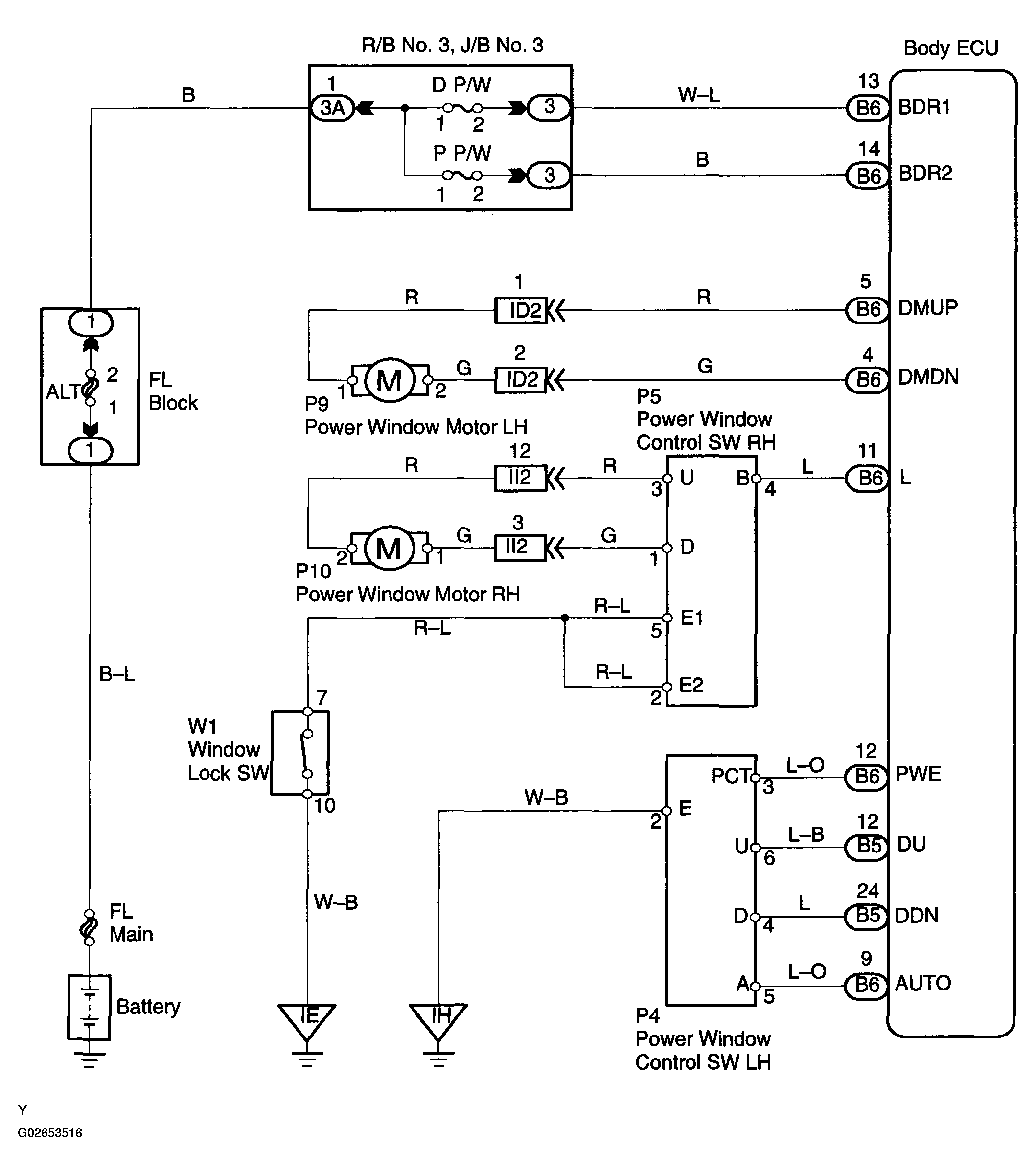

Fig 1: Power Window Control Switch Circuit - Wiring Diagram

G02653516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
