Registration Procedure

HINT:

• This must be done when you install a new ECM.
• The new ECM is on the automatic key code registration mode. The already fixed number of key codes for this ECM can be registered.

  On this type of vehicle, up to 3 key codes can be registered.

• In the automatic registration mode, the last key registered becomes sub-key.

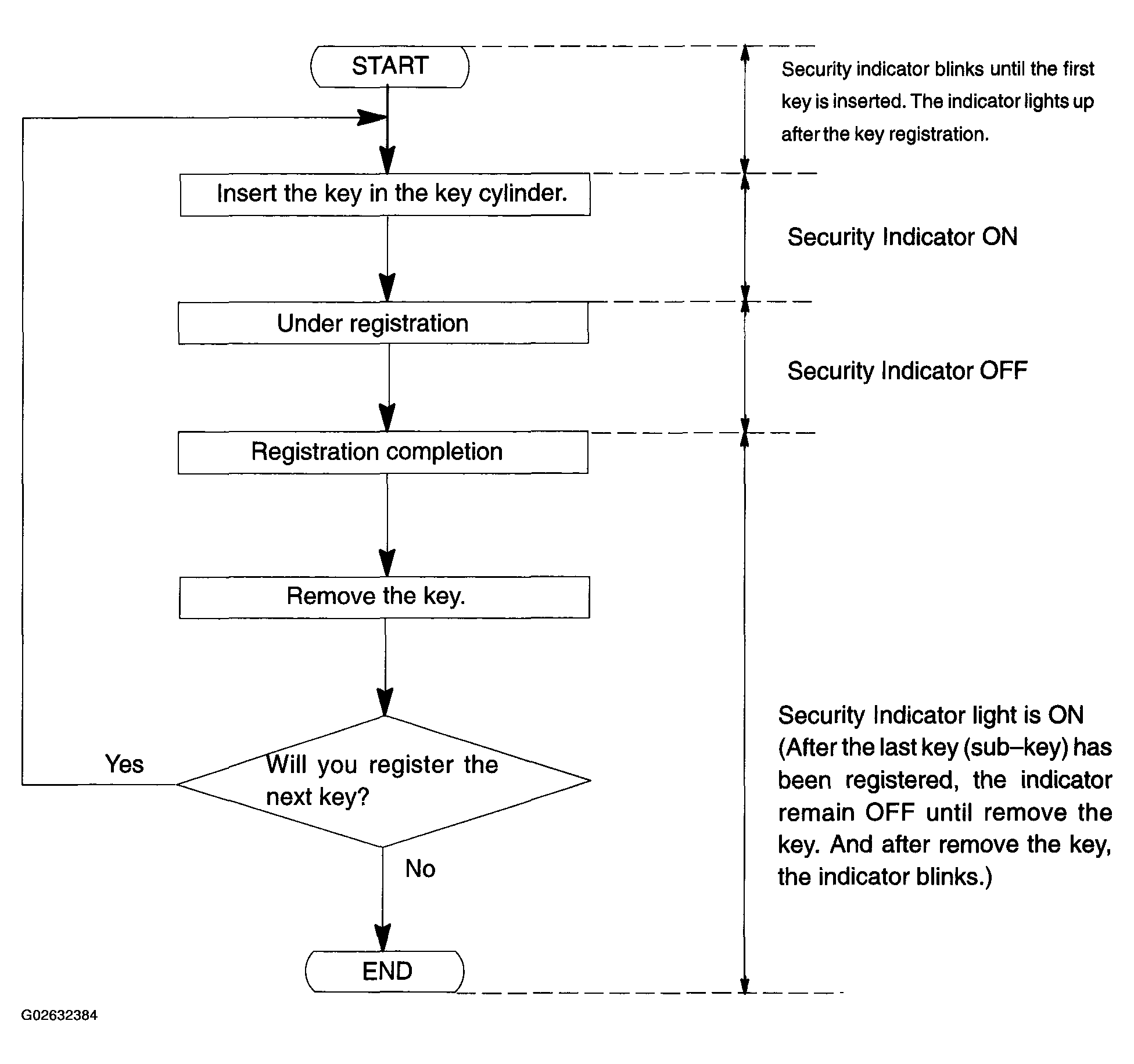

  Fig 1: Registration Of New Transponder Key Procedure

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  • When a key is not inserted in the key cylinder on the automatic registration mode, the security indicator always lights on.
  • When the immobiliser system operates normally and the key is pull out, the security indicator blinks.
  • When key code registration could not be performed on the automatic registration mode, code 2-1 is output from the security indicator and when inserting the already registered key, code 2-2 is output.

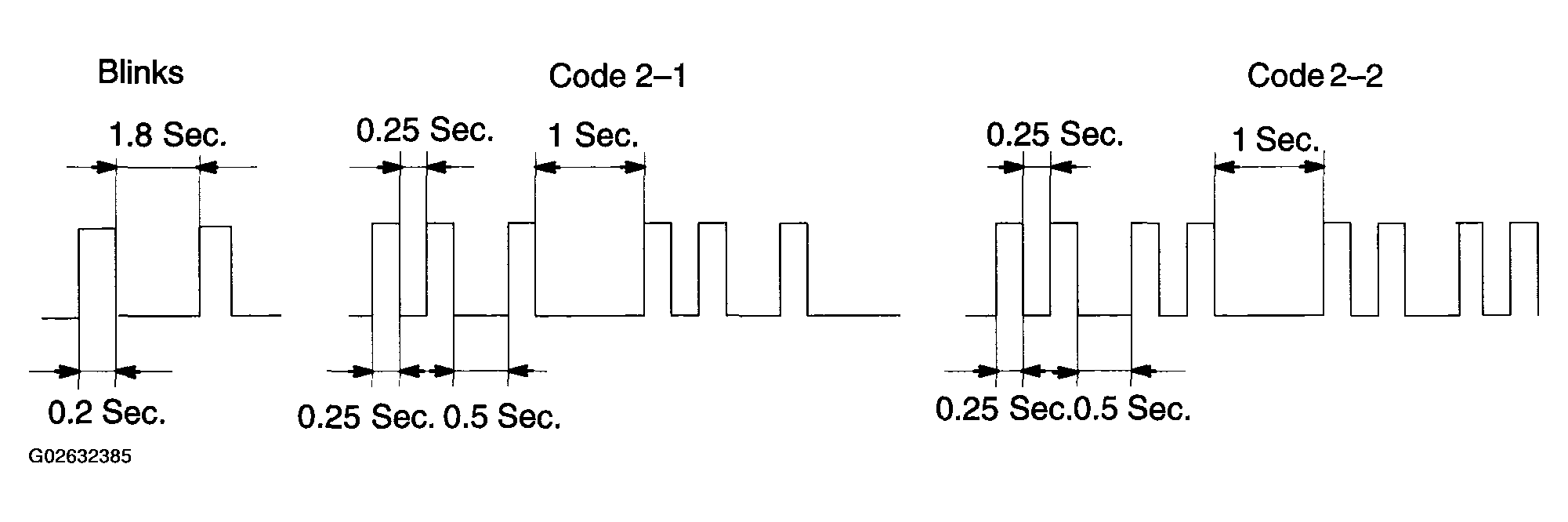

  Fig 2: Immobiliser System Key Security Indicator Blinking Pattern

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• Automatic registration mode completion

  If completing the mode forcibly when more than 1 key code have been registered on the automatic registration mode, perform the following procedures.

  After 1 more key code have been registered with master key, perform step (1) or (2) without pulling the key out or inserting the already registered key.

  1. Depress and release brake pedal 5 times or more within 15 sec.
  2. With the hand-held tester, require automatic registration mode completion.

There are 2 ways for registration of additional master key, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

HINT:

• It is possible to register up to 7 master key codes including the already registered key code.
• When any operation time described below is over, registration mode completes.
• When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
• When replacing "Ignition Cylinder Key Set" or "Lock Cylinder Set" and register according to the following procedure using the original master key. However, after the registration of the additional master key, as the original master key and the original sub-key is not necessary any more, so erase registration of those key codes.
  1. Depressing brake pedal and acceleration pedal:

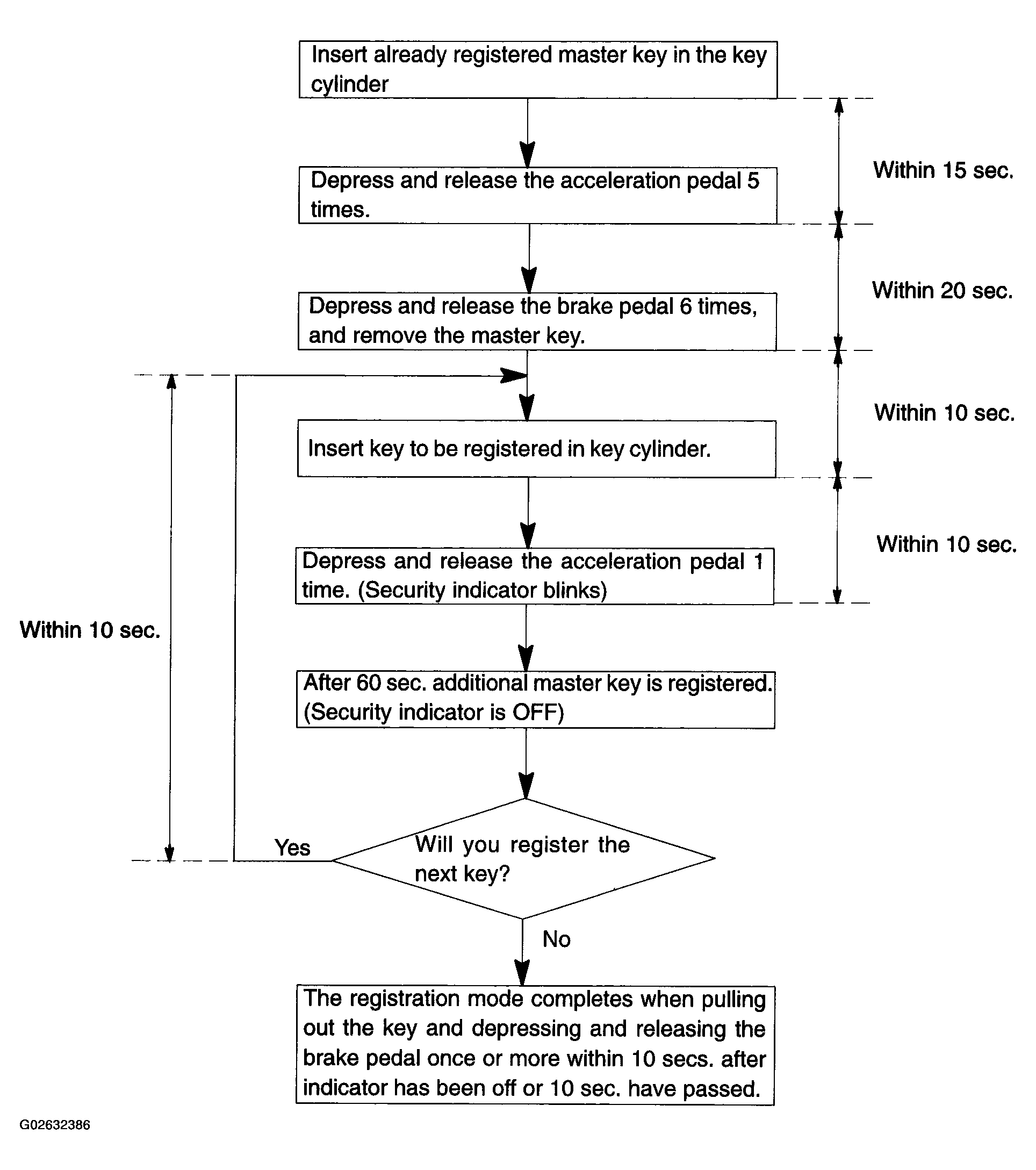

     Fig 3: Registration Of Additional Master Key By Depressing Brake Pedal And Acceleration Pedal

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using hand-held tester:

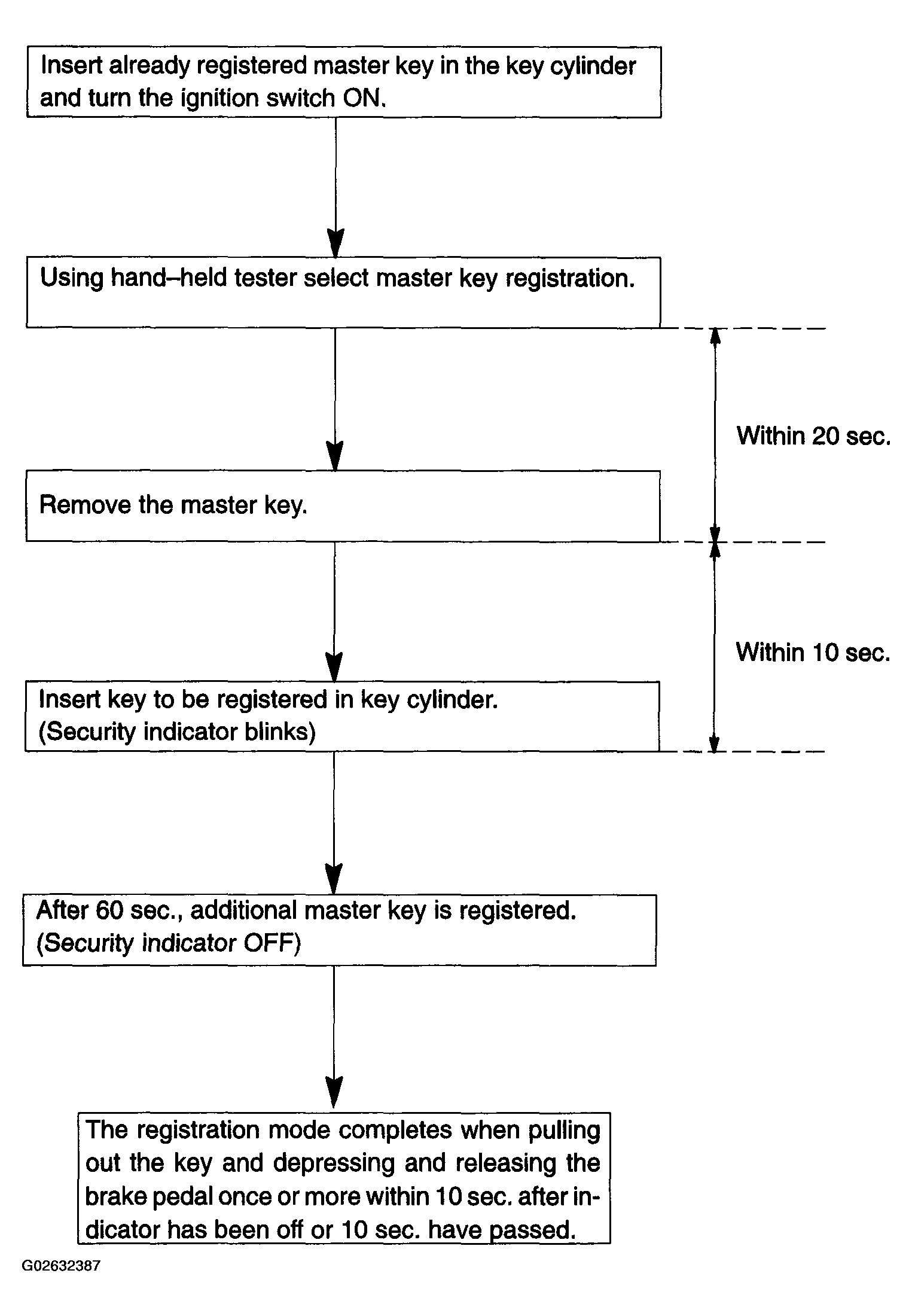

Fig 4: Registration Of Additional Master Key By Using Hand-Held Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Please follow the screen of the hand-held tester for more detailed procedure.

There are 2 ways for registration of additional sub-key, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

HINT:

• It is possible to register up to 3 sub-key codes including the already registered key code.
• When any operation time described below is over, registration mode completes.
• When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
  1. Depressing brake pedal and acceleration pedal:

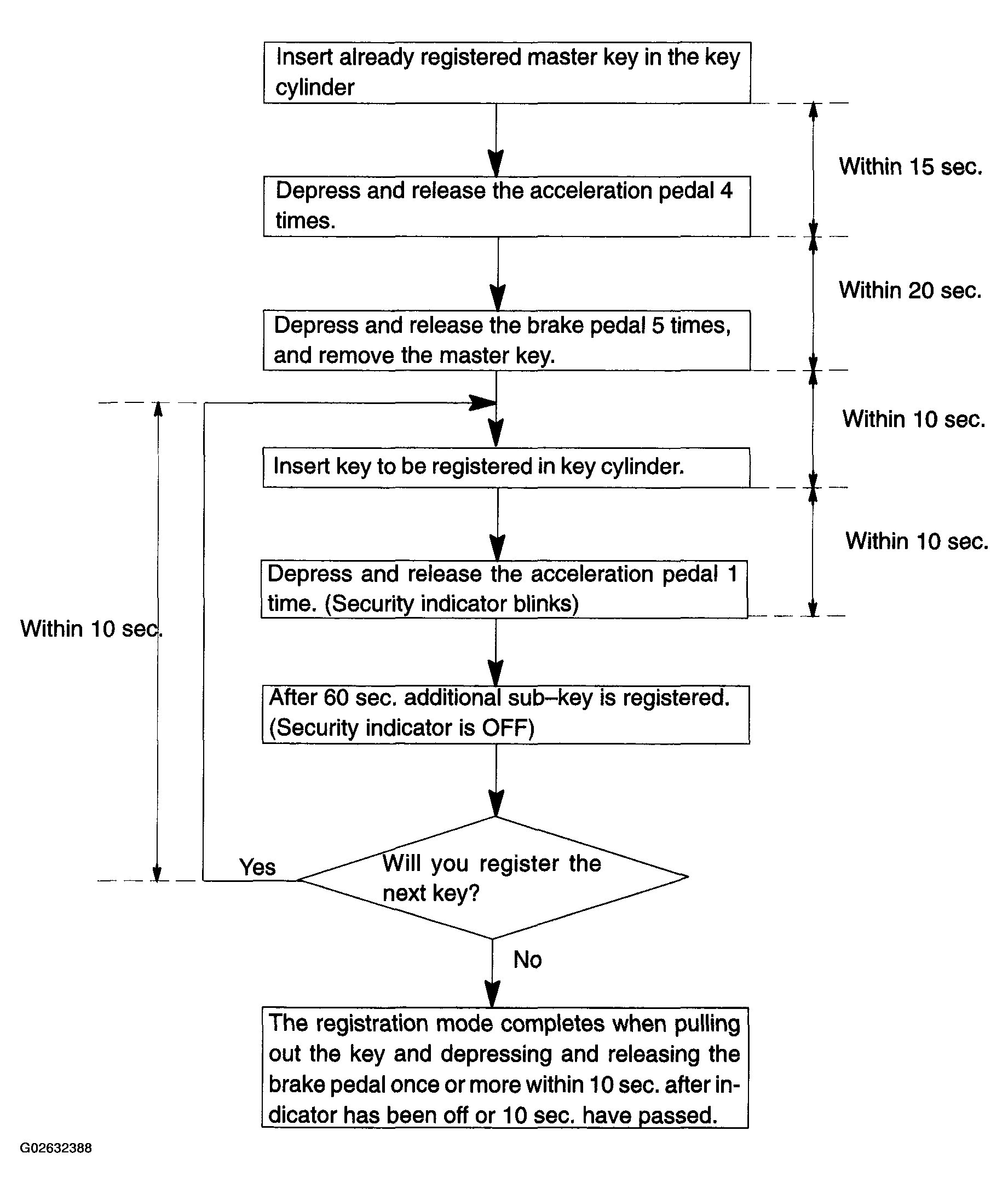

     Fig 5: Registration Of Additional Sub-Key By Depressing Brake Pedal And Acceleration Pedal

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using hand-held tester:

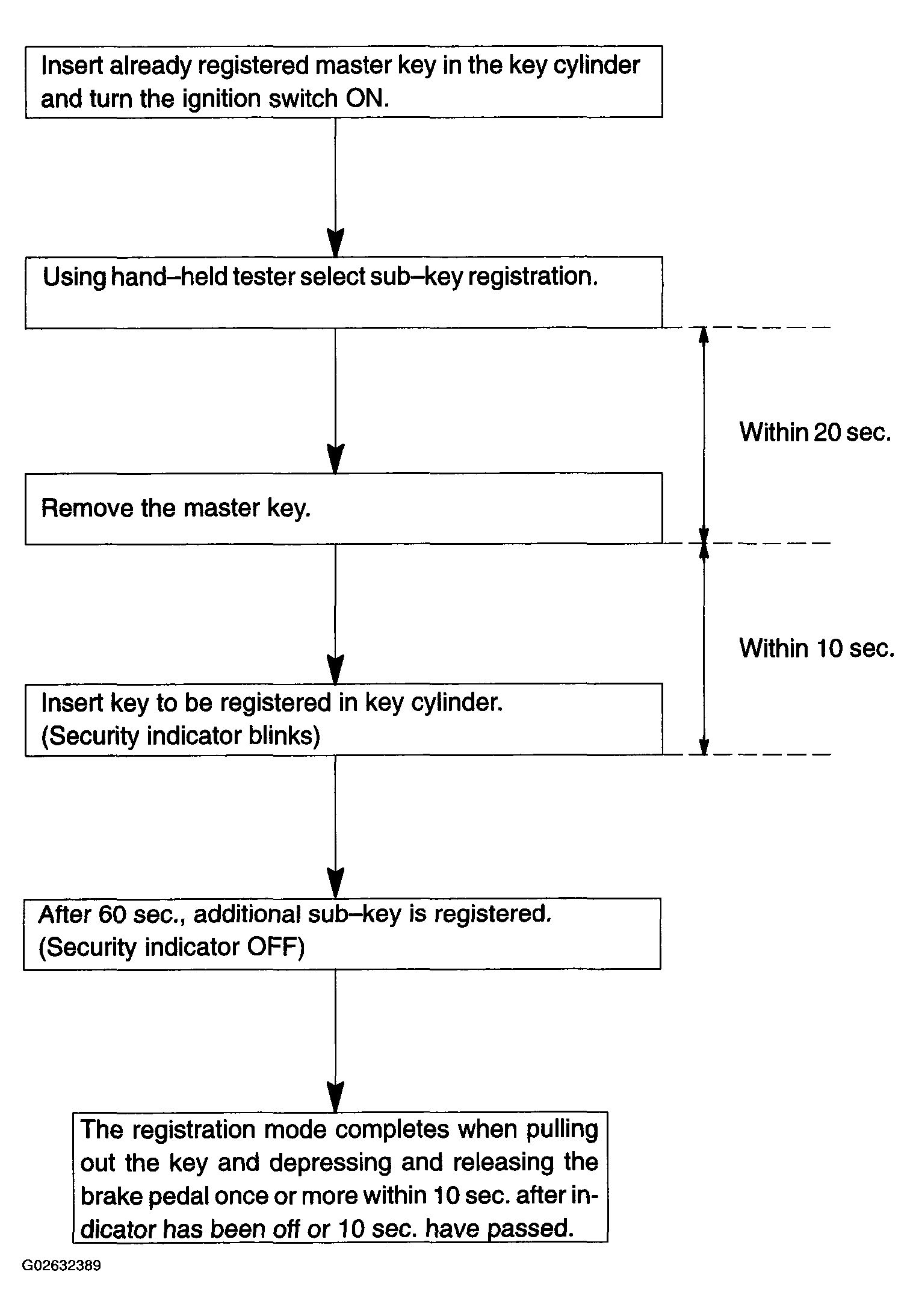

Fig 6: Registration Of Additional Sub-Key By Using Hand-Held Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Please follow the screen of the hand-held tester for more detailed procedure.

There are 2 ways for erasure of transponder key code, one way is depressing brake pedal and acceleration pedal and the other way is using hand-held tester.

HINT:

• Delete all other master and sub-key codes leaving the master key code to use the operation. When using the key which was used before deletion, it is necessary to register the code again.
• When any operation time described below is over, registration mode completes.
• When the next procedure is performed while the timer is working, the timer completes counting time, then next timer starts.
  1. Depressing brake pedal and acceleration pedal:

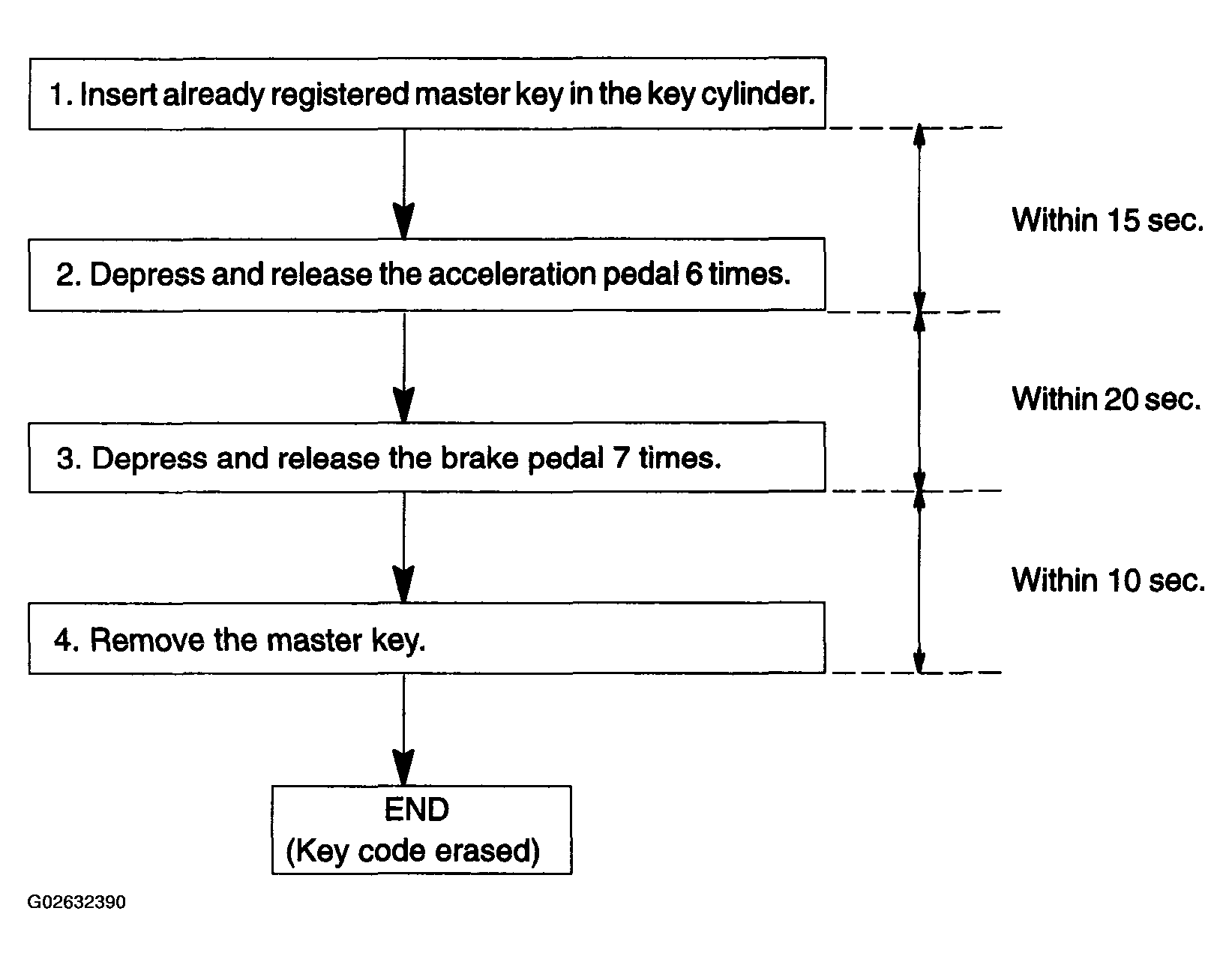

     Fig 7: Erasure Of Transponder Key Code By Depressing Brake Pedal And Acceleration Pedal

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     HINT:

     When the key cannot be pulled out in the step 4, key code deletion is canceled.

  2. Using hand-held tester:

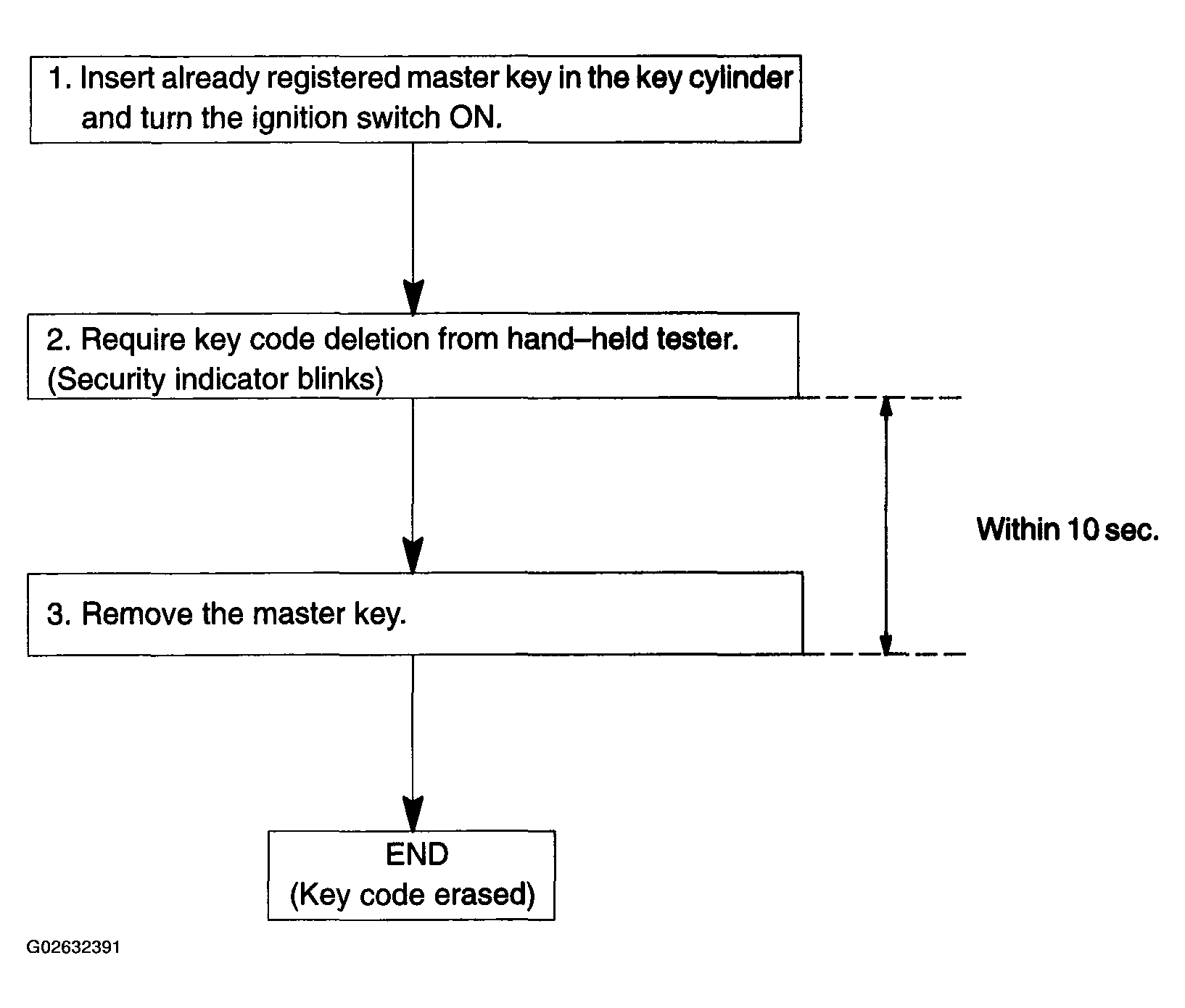

Fig 8: Erasure Of Transponder Key Code By Using Hand-Held Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• When the key cannot be pulled out in the step 3, key code deletion is canceled. (Security indicator is OFF.)
• Please follow the screen of the hand-held tester for more detailed procedure.
