Timing Chain: Components

Fig 1: Identifying Timing Chain Components (1 Of 3)
G02630653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

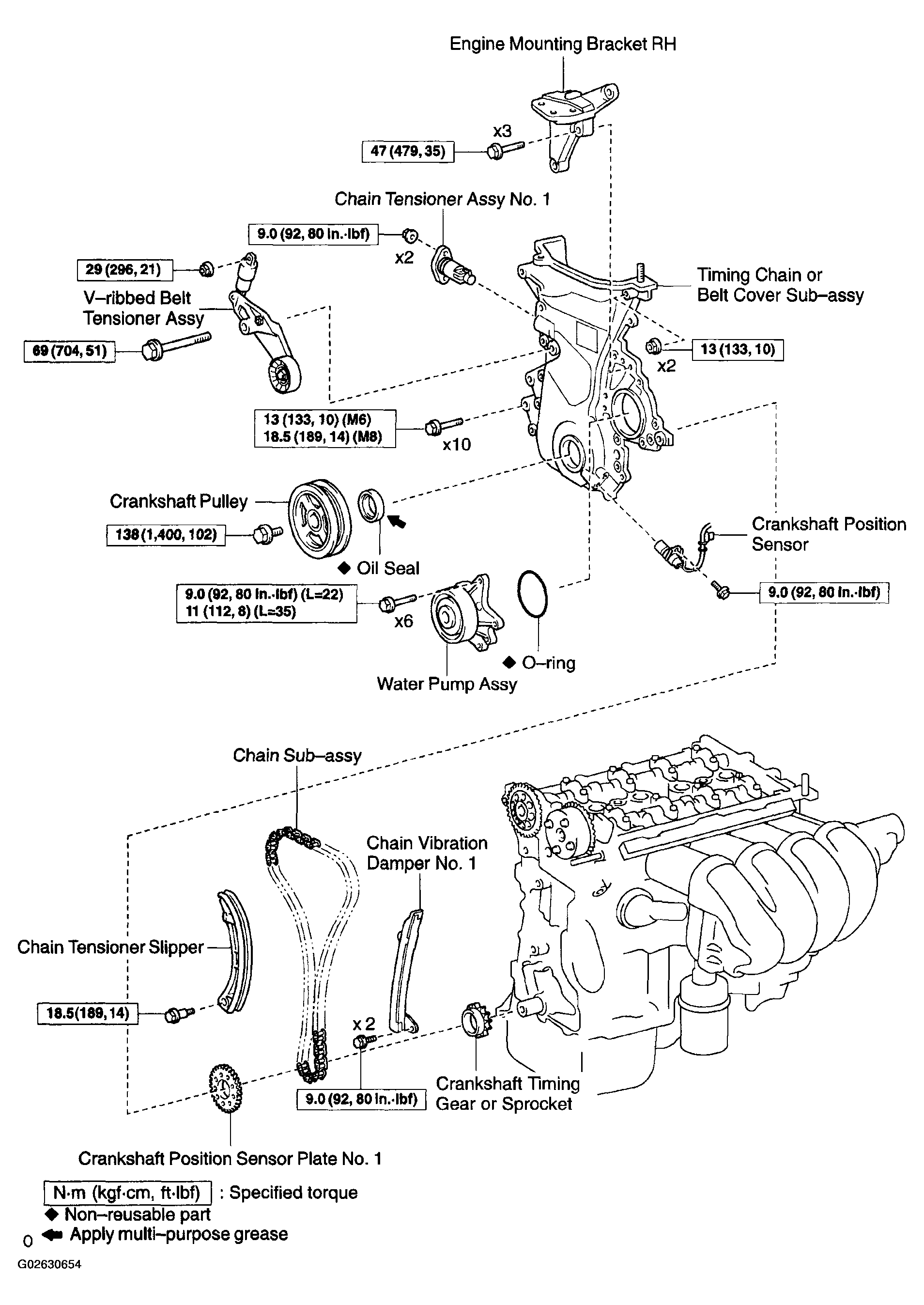

Fig 2: Identifying Timing Chain Components (2 Of 3)
G02630654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

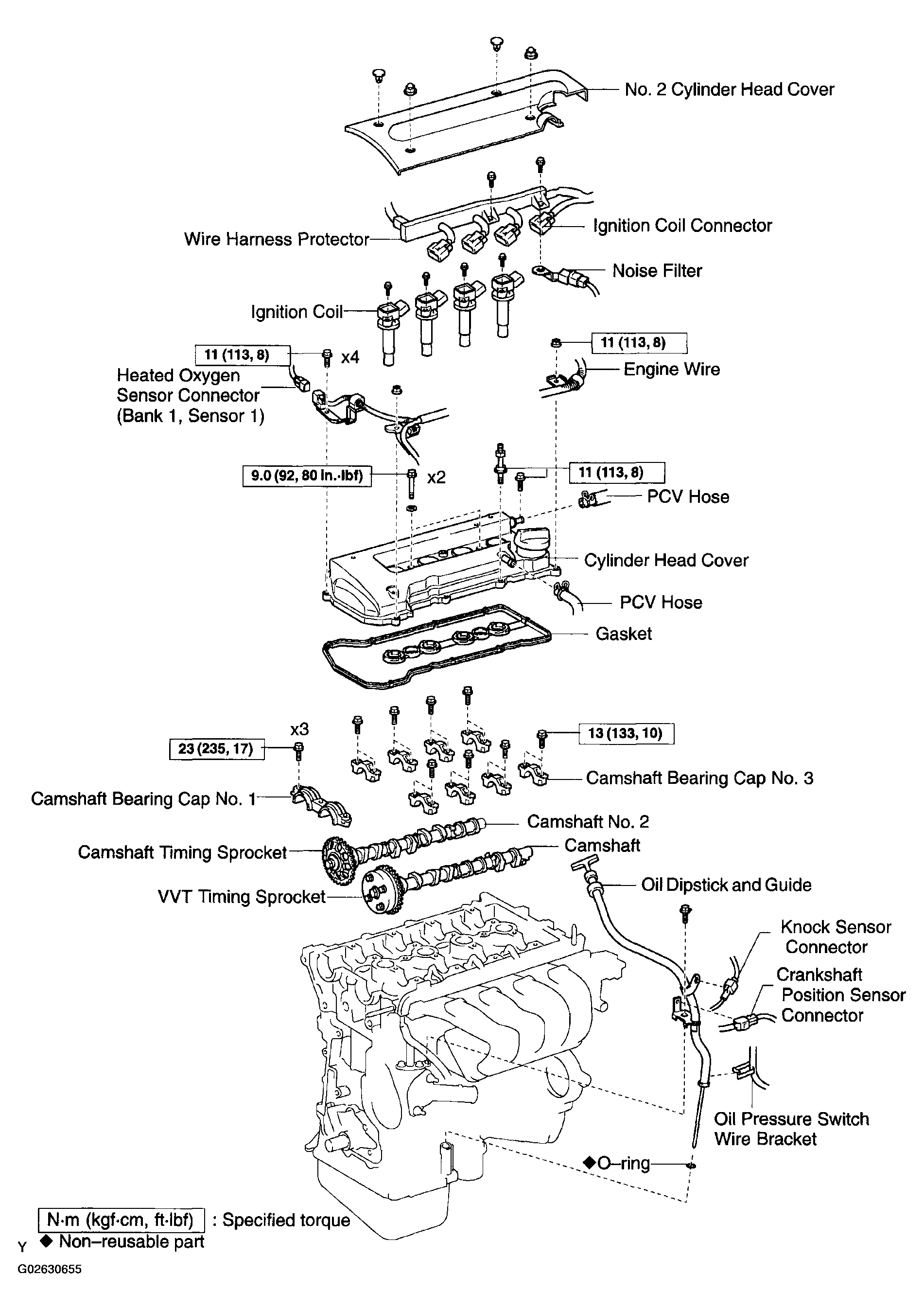

Fig 3: Identifying Timing Chain Components (3 Of 3)
G02630655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
