Instrument Panel: Components

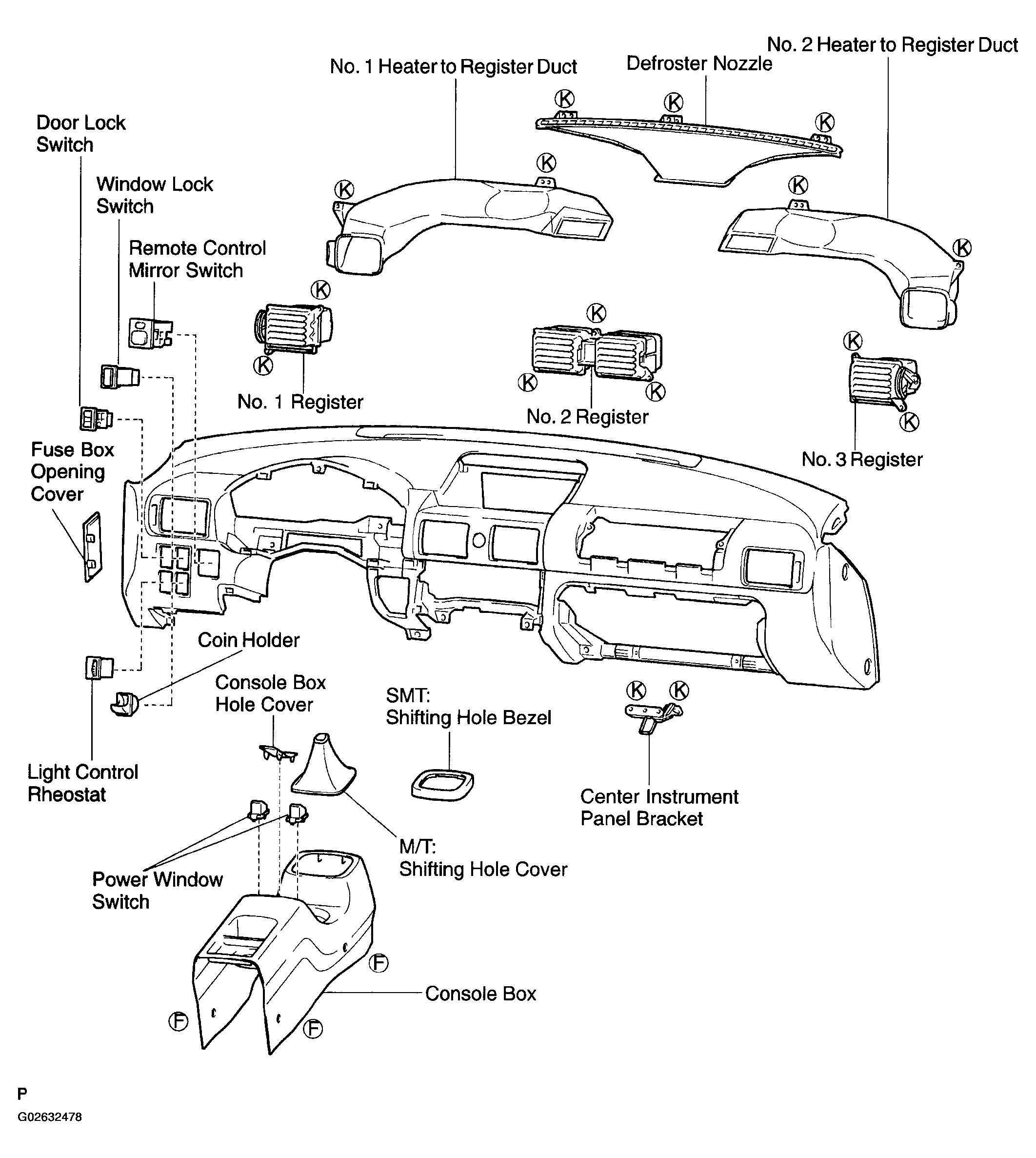

Fig 1: Exploded View Of Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

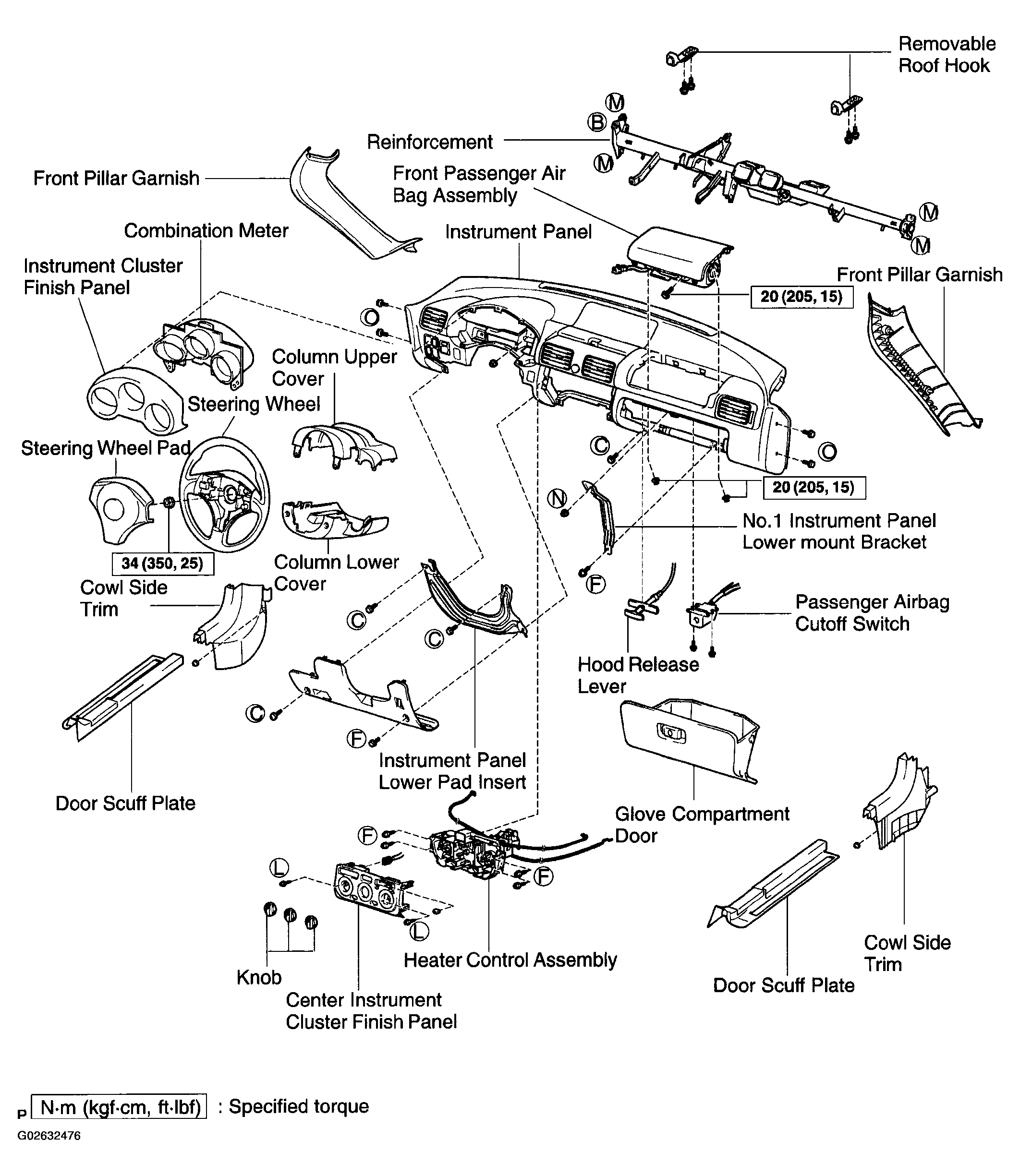

Fig 2: Exploded View Of Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

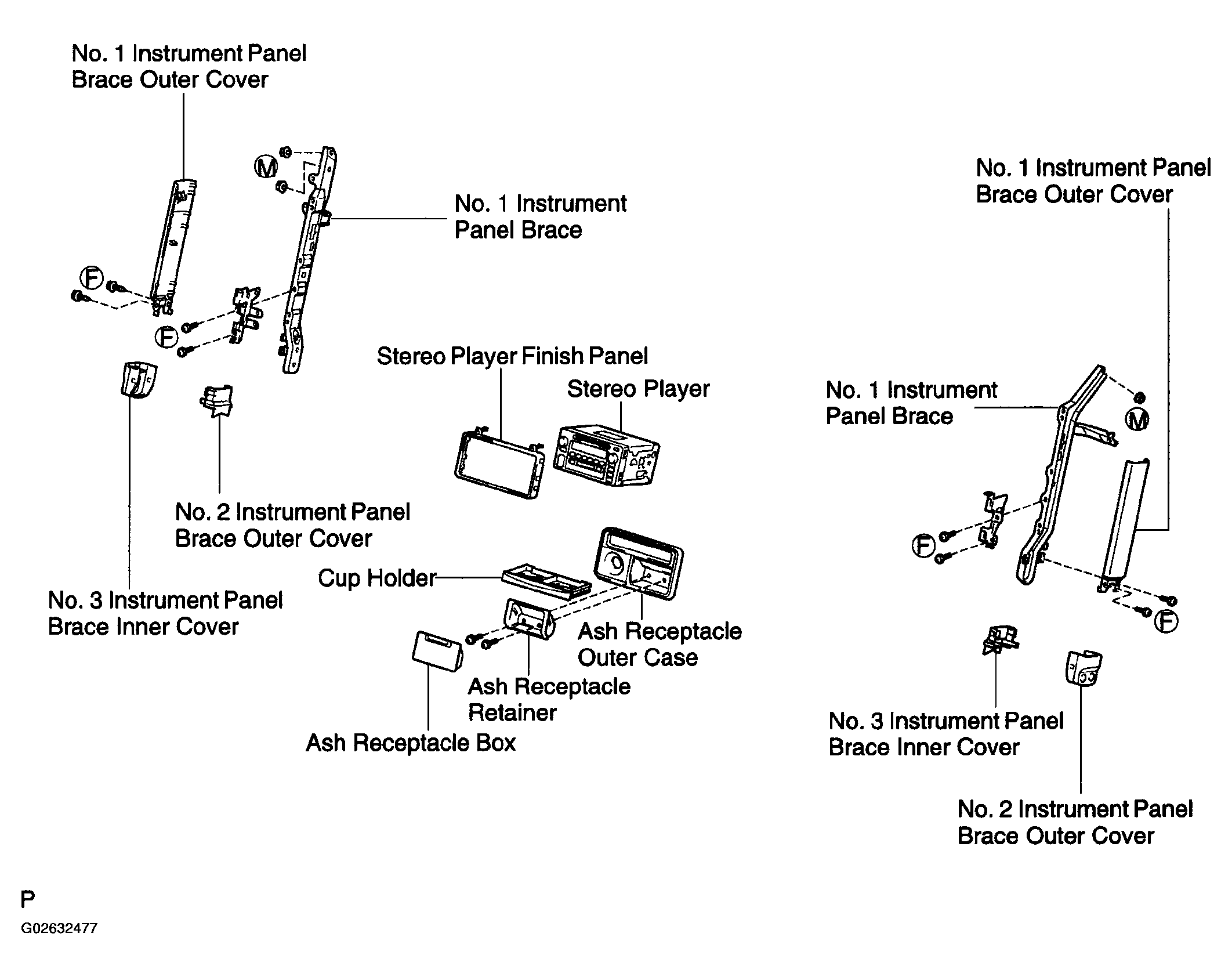

Fig 3: Exploded View Of Instrument Panel Components (3 Of 3)

HINT:

Screw shapes and sizes are indicated in the table below. The codes (A - O) correspond to those indicated on the previous pages.

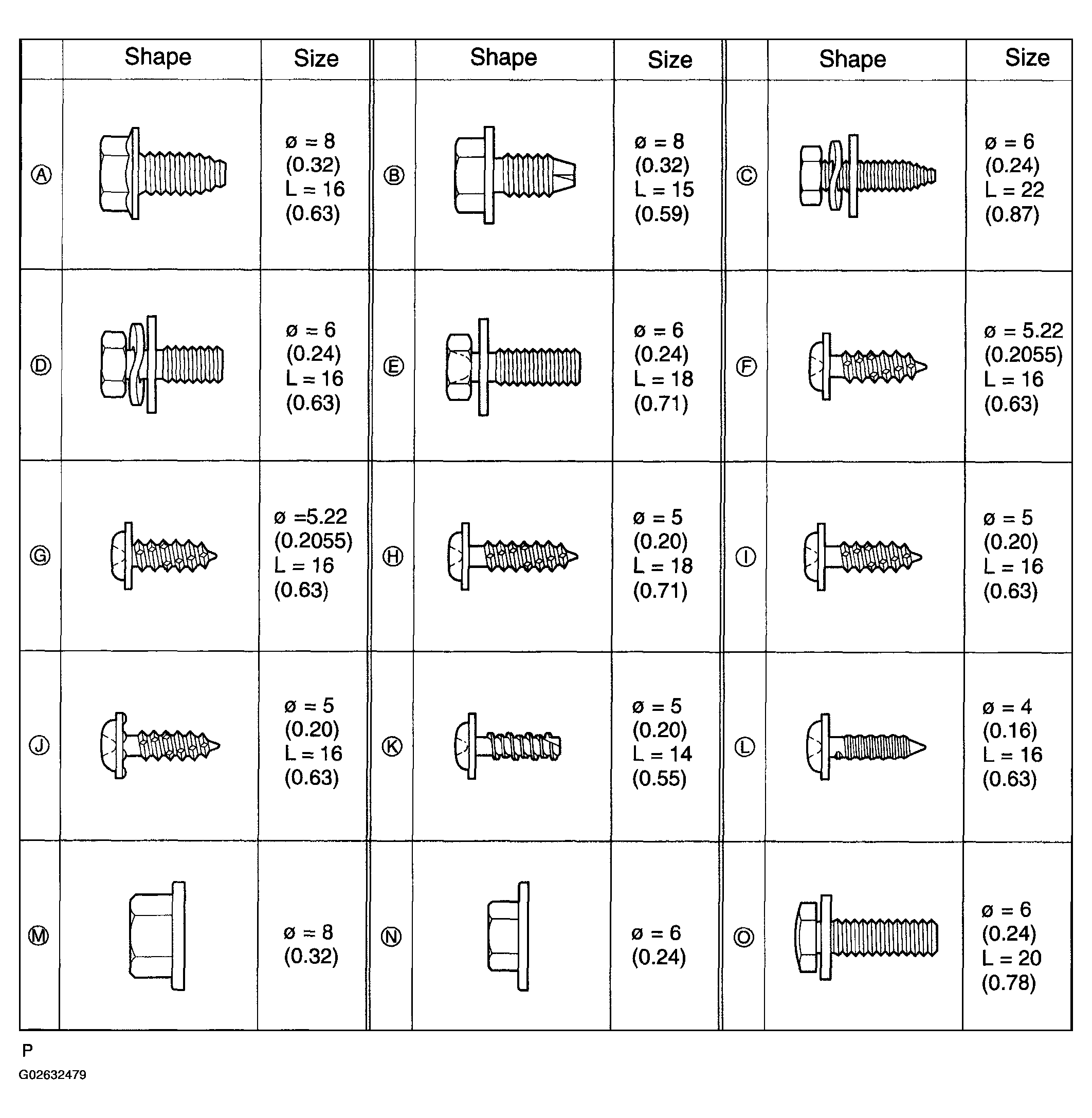

Fig 4: Screw Shape And Size Reference Table
