Pattern Select Switch Circuit (PWR Mode Switch): Wiring Diagram

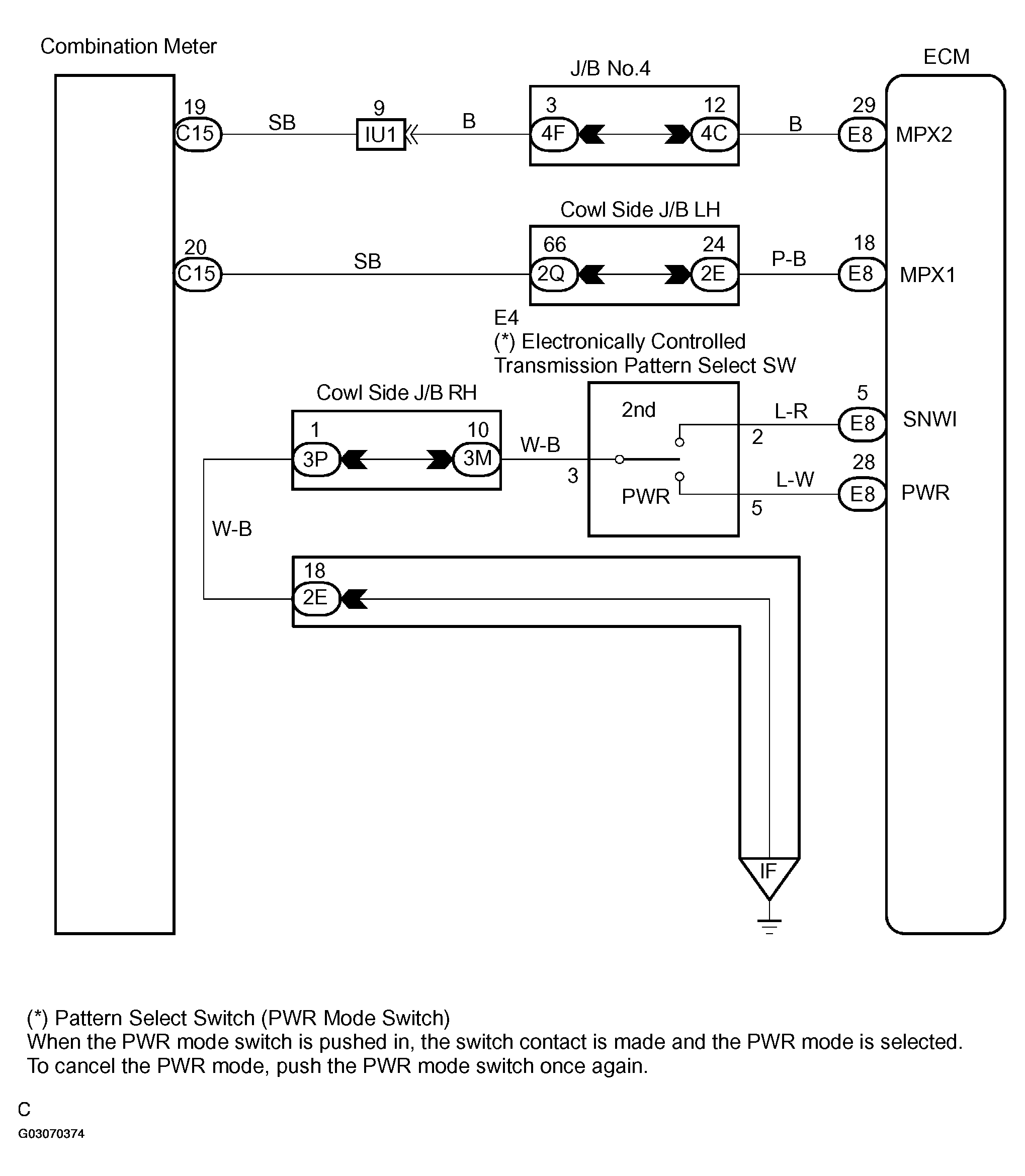

Fig 1: Pattern Select Switch Circuit Wiring Diagram

G03070374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
