Shift Lock System: Inspection

INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the ECU connector.

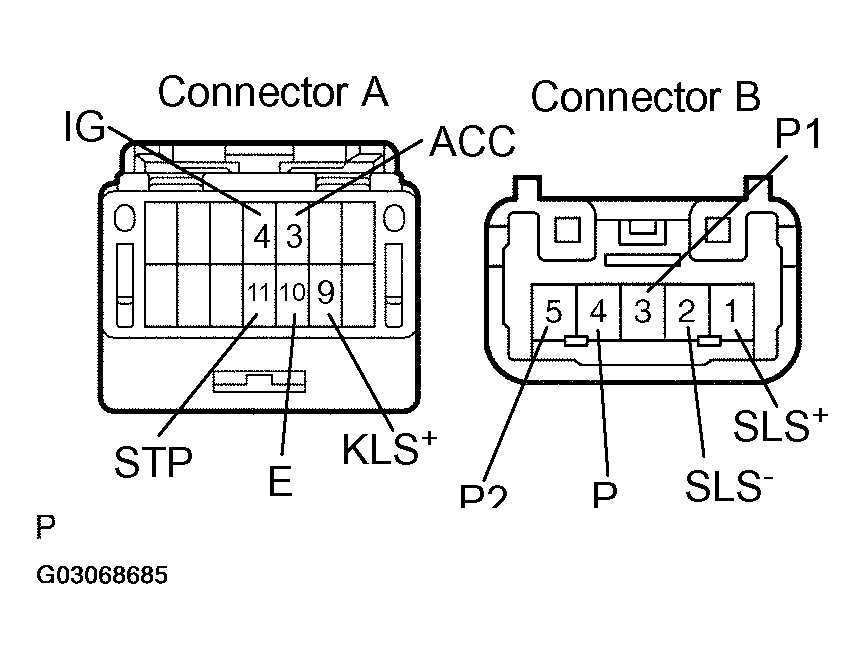

Fig 1: Checking ECU Shift Lock Control Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

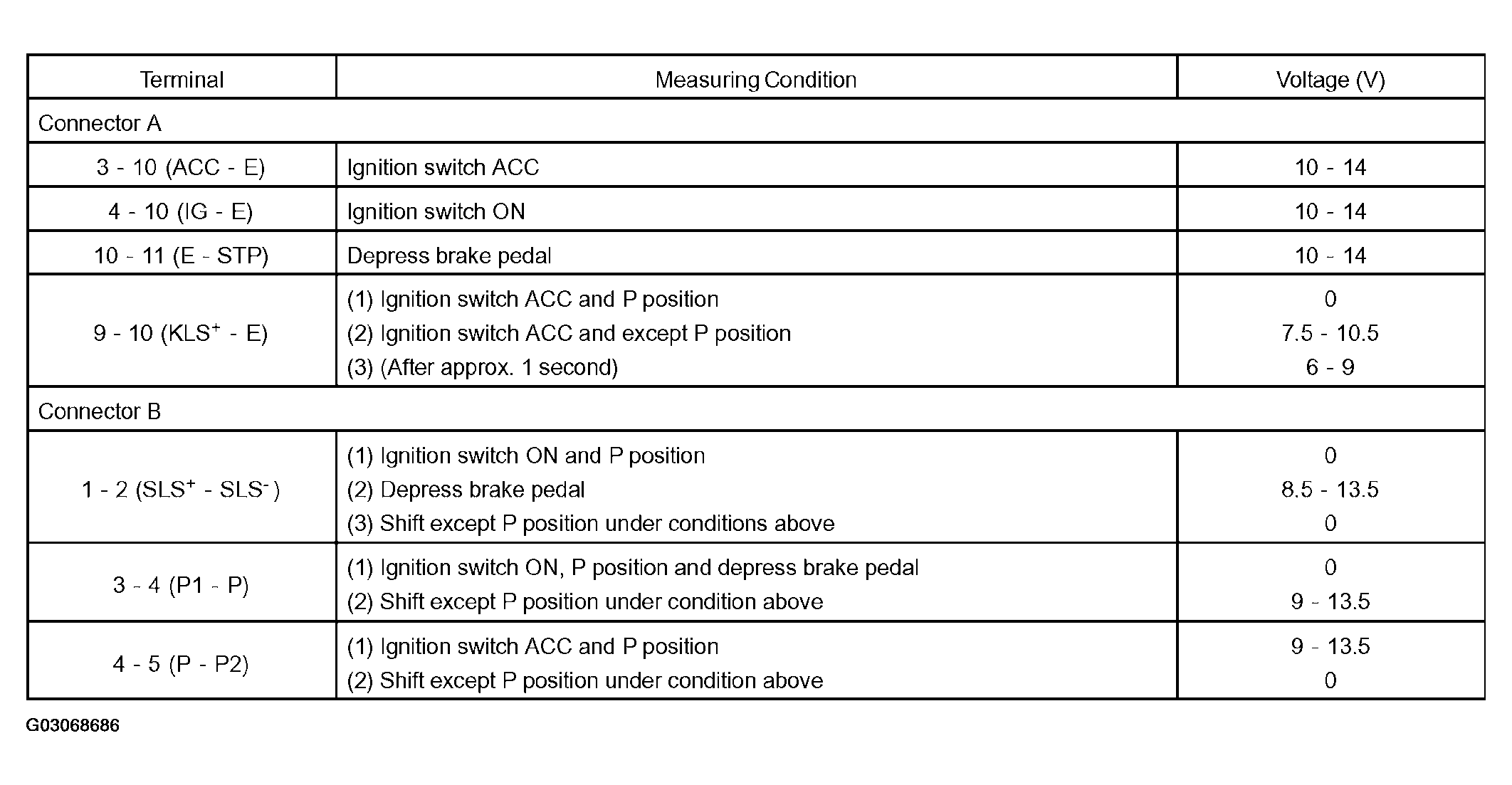

Fig 2: ECU Shift Lock Control Voltage Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminal 1 and 2.
  Standard resistance: 21 - 27 Ω

  If the resistance value is not as specified, replace the solenoid.
3. Apply the battery positive voltage between terminals. Check that the operation noise can be heard from the solenoid.
  If the solenoid does not operate, replace the solenoid.

  Fig 3: Identifying Shift Lock Solenoid Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT SHIFT LOCK CONTROL SWITCH

Inspect that continuity exists between each terminal.

INSPECT SHIFT LOCK CONTROL SWITCH

Shift position	Tester connection	Specified value
P position (Release button is not pushed)	3-4 (P - P1)	Continuity
P position (Release button is pushed)	3 -4 (P - P1) 4 - 5 (P - P2)	Continuity
R, N, D, 2, L position	4 - 5 (P - P2)	Continuity

If continuity is not as specified, replace the switch.

INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminal 1 and 2.
  Standard resistance: 12 - 17 Ω

  If resistance value is not as specified, replace the solenoid.
3. Apply the battery positive voltage between terminals 1 and 2. Check that an operation noise can be heard from the solenoid.
  If the solenoid does not operate, replace the solenoid.

  Fig 4: Identifying Key Interlock Solenoid Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
