Automatic Transmission Unit: Components

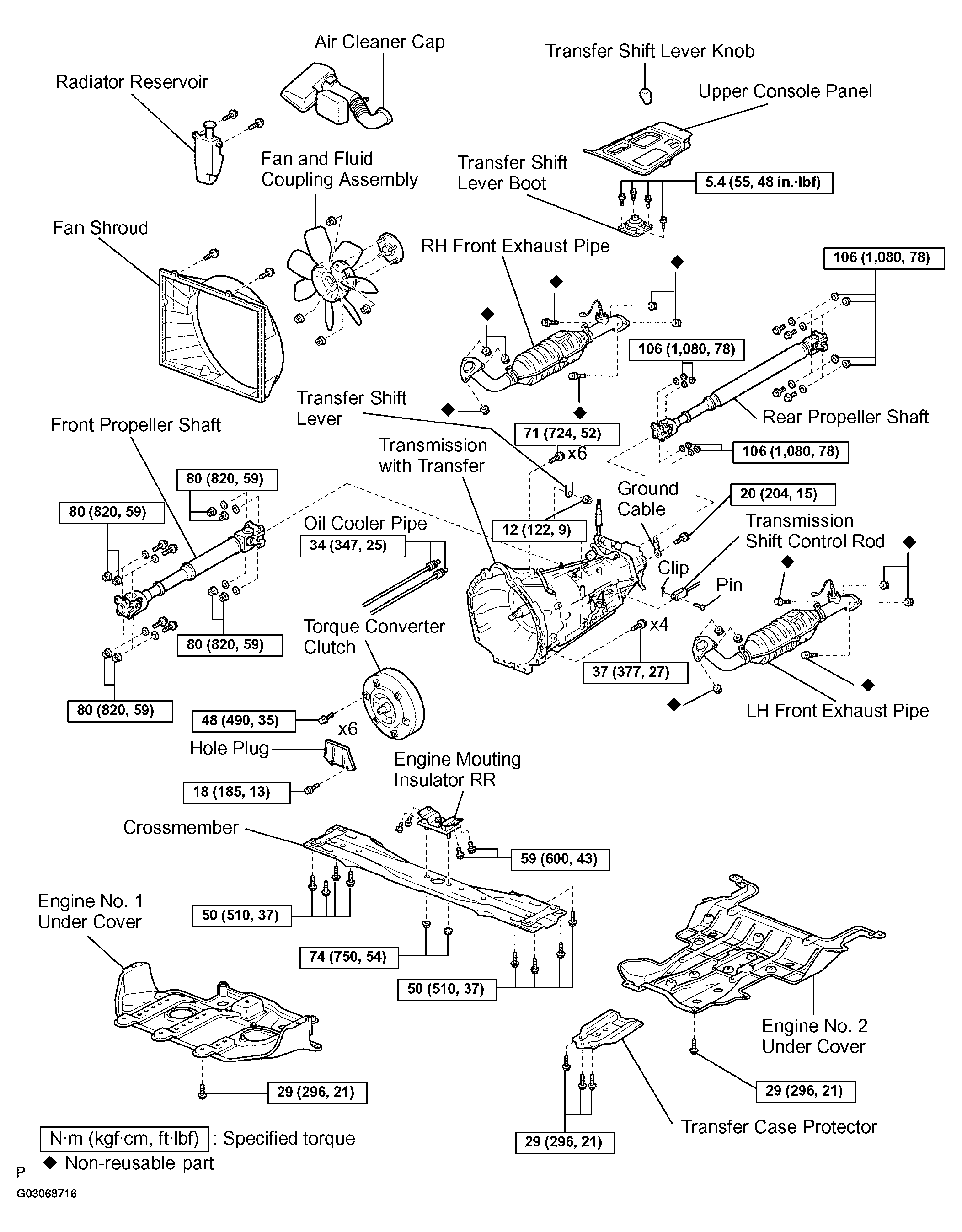

Fig 1: Exploded View Of Automatic Transmission Unit Components

G03068716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
