Automatic Transmission System: Operation

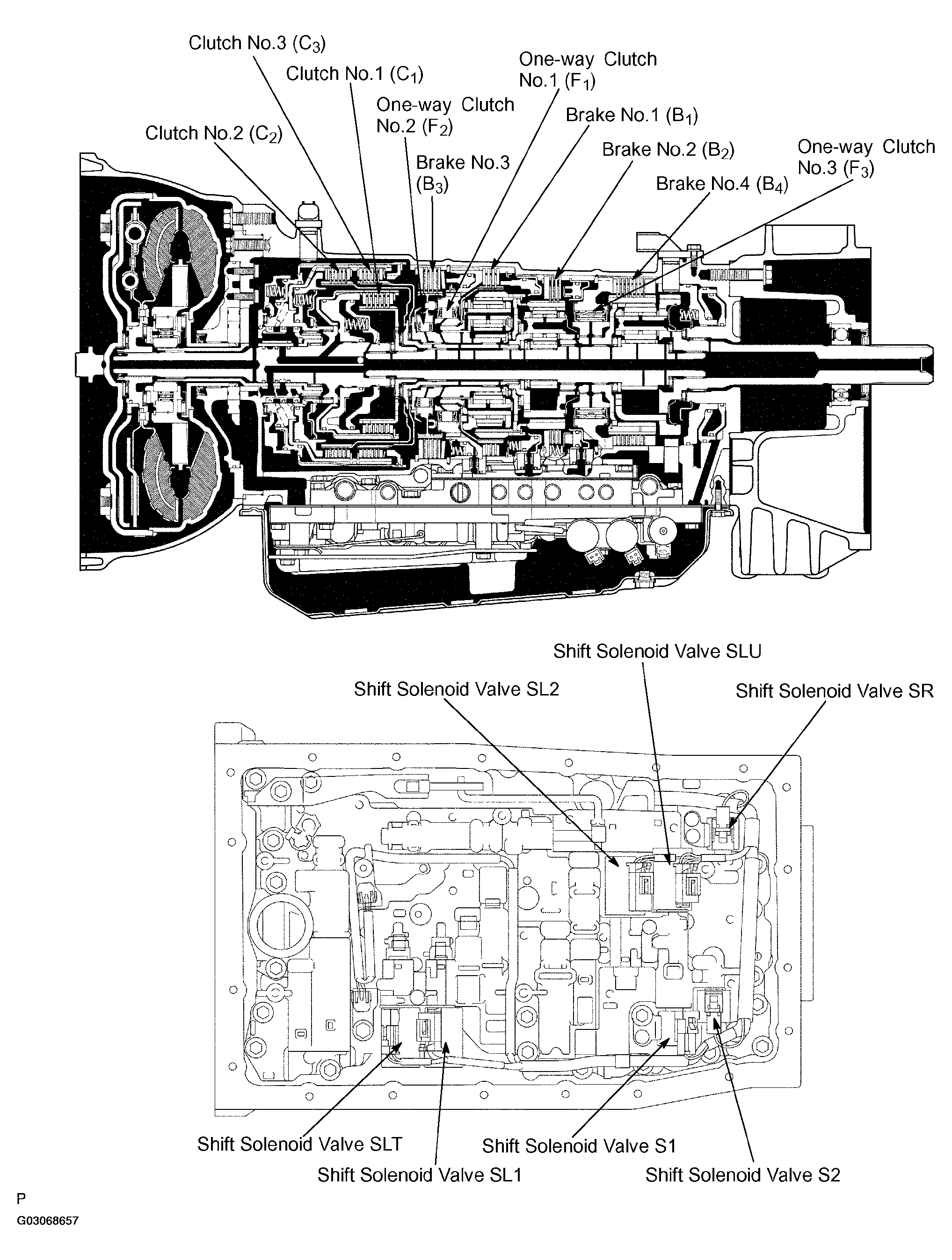

Fig 1: Automatic Transmission System Operation
G03068657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

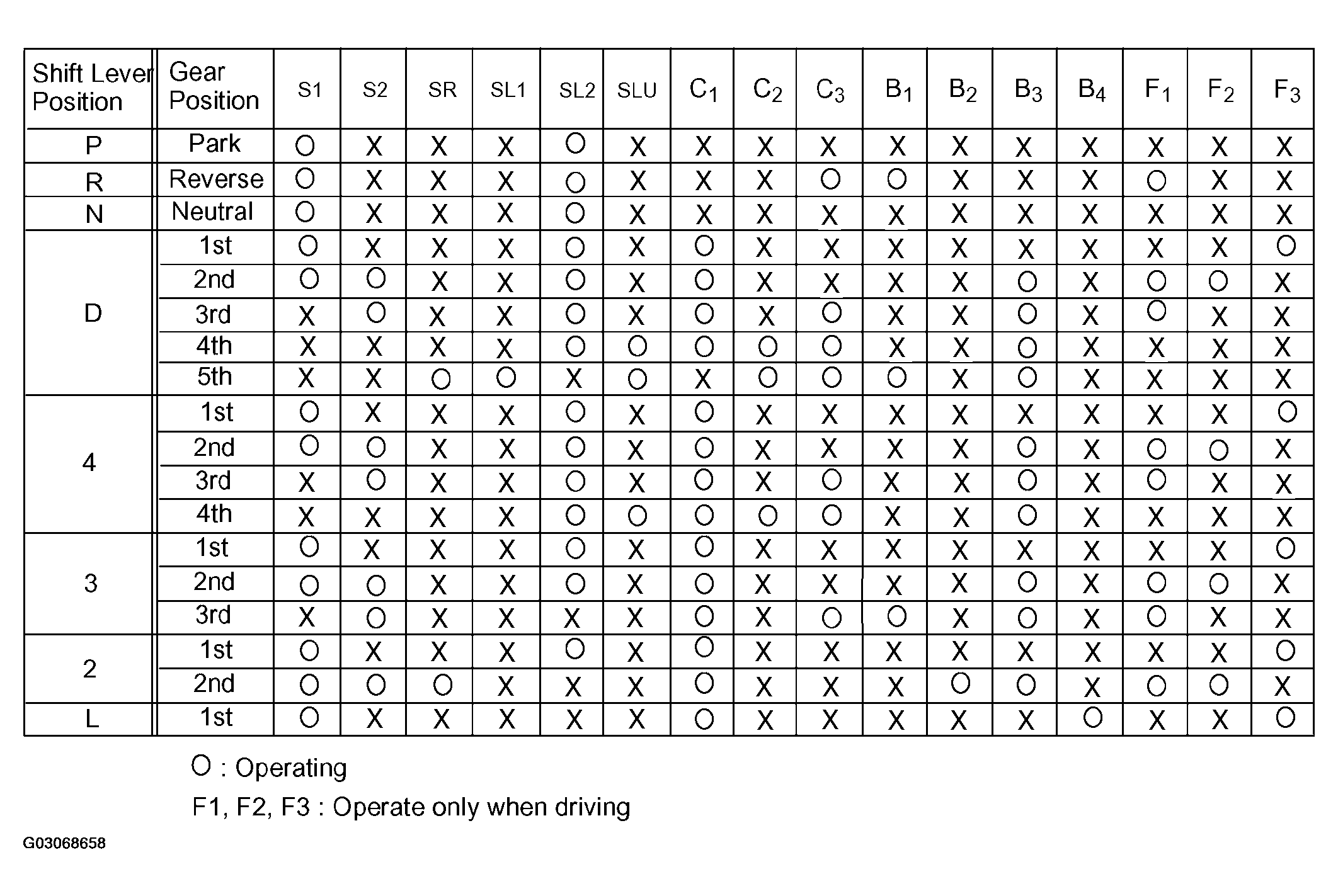

Fig 2: Automatic Transmission System Operation Table
G03068658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
